Fuel Evaporation System Checks: RESTRICTOR

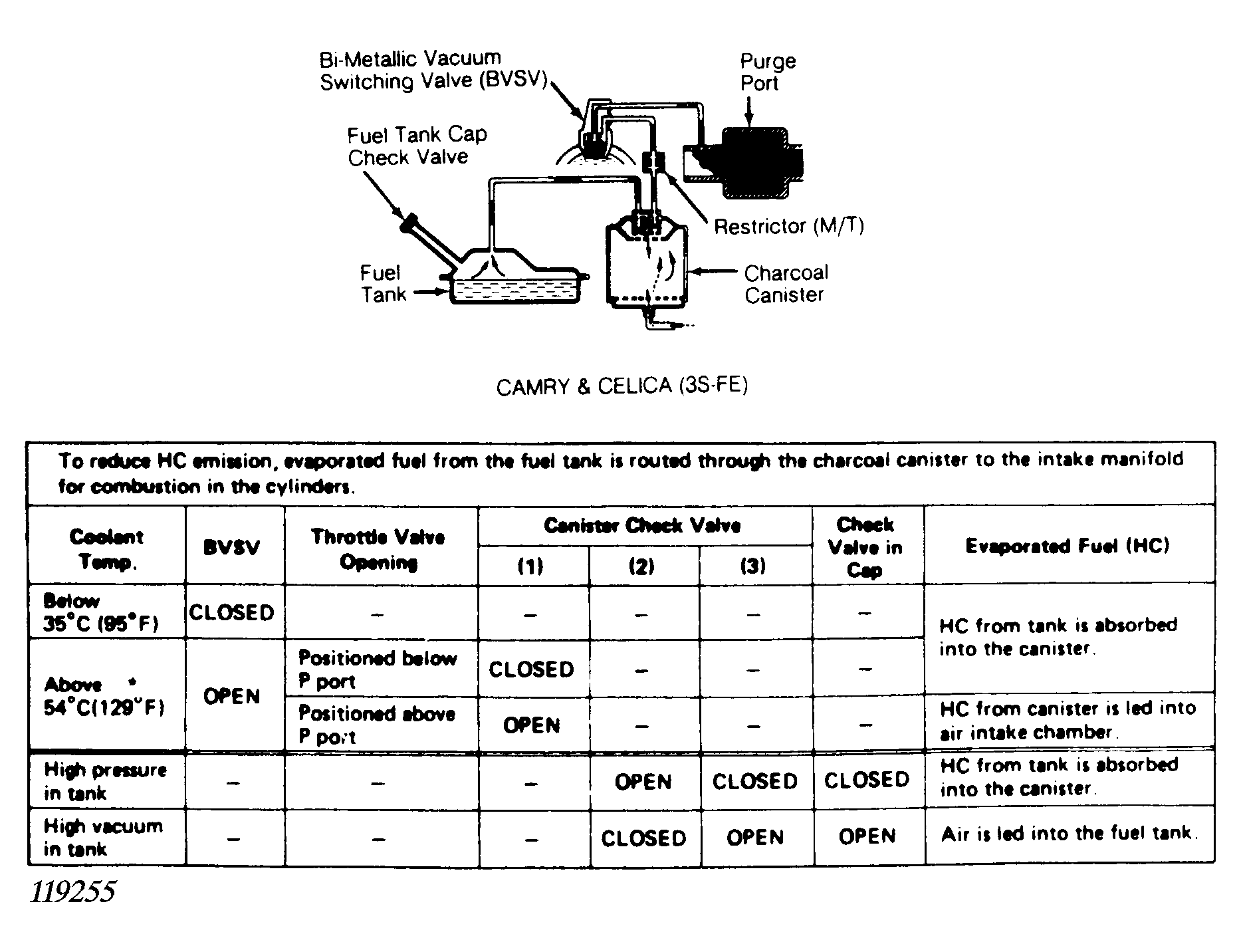

Remove hoses from restrictor and remove restrictor from vehicle. See Figure. Blow air through both sides to ensure there is no blockage. Replace restrictor if air flow is blocked in either direction.
