Component Locations

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

NOTE: Power window relay in driver's door, behind trim panel.

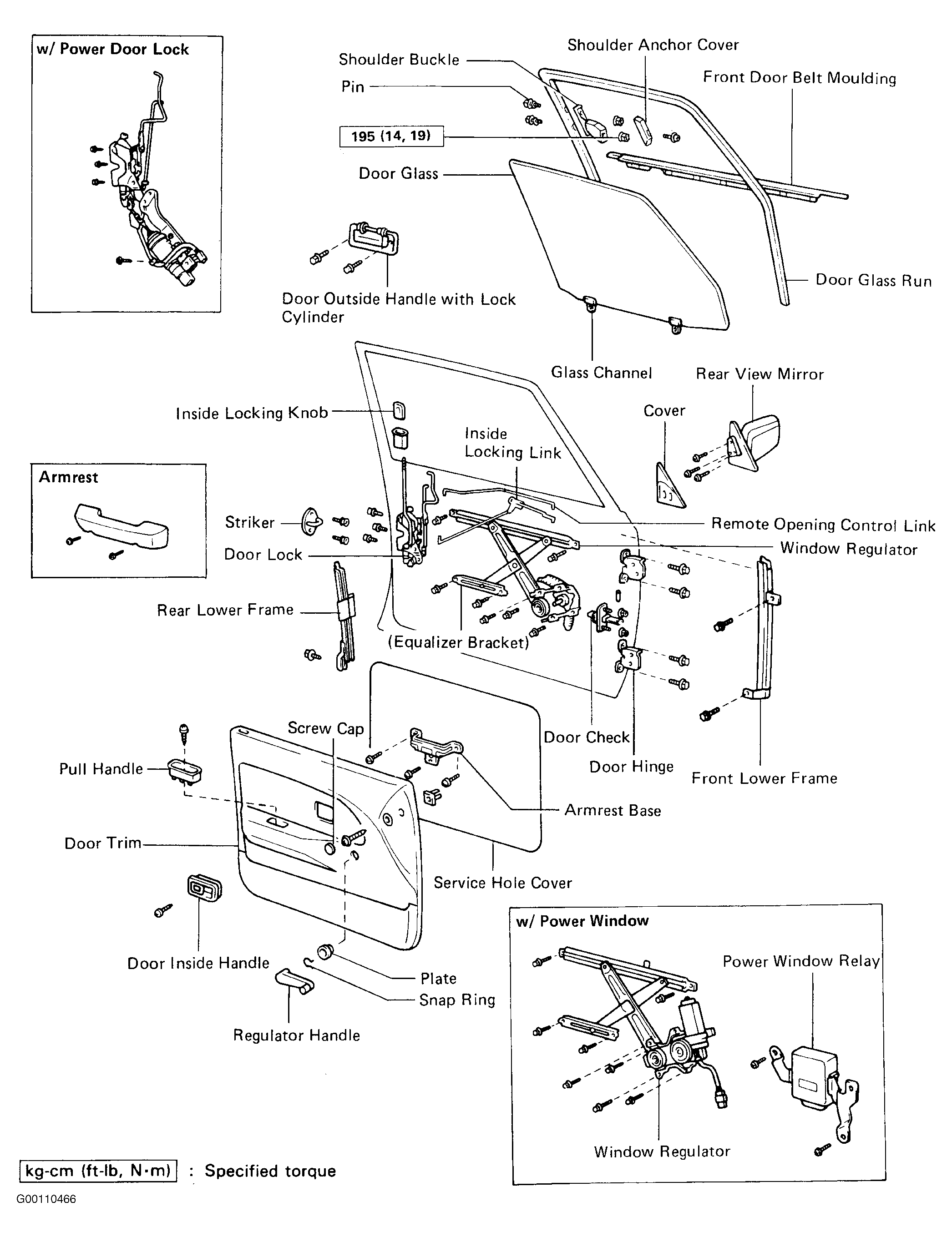

Fig 1: Exploded View Of Front Door (Except Coupe)
G00110466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

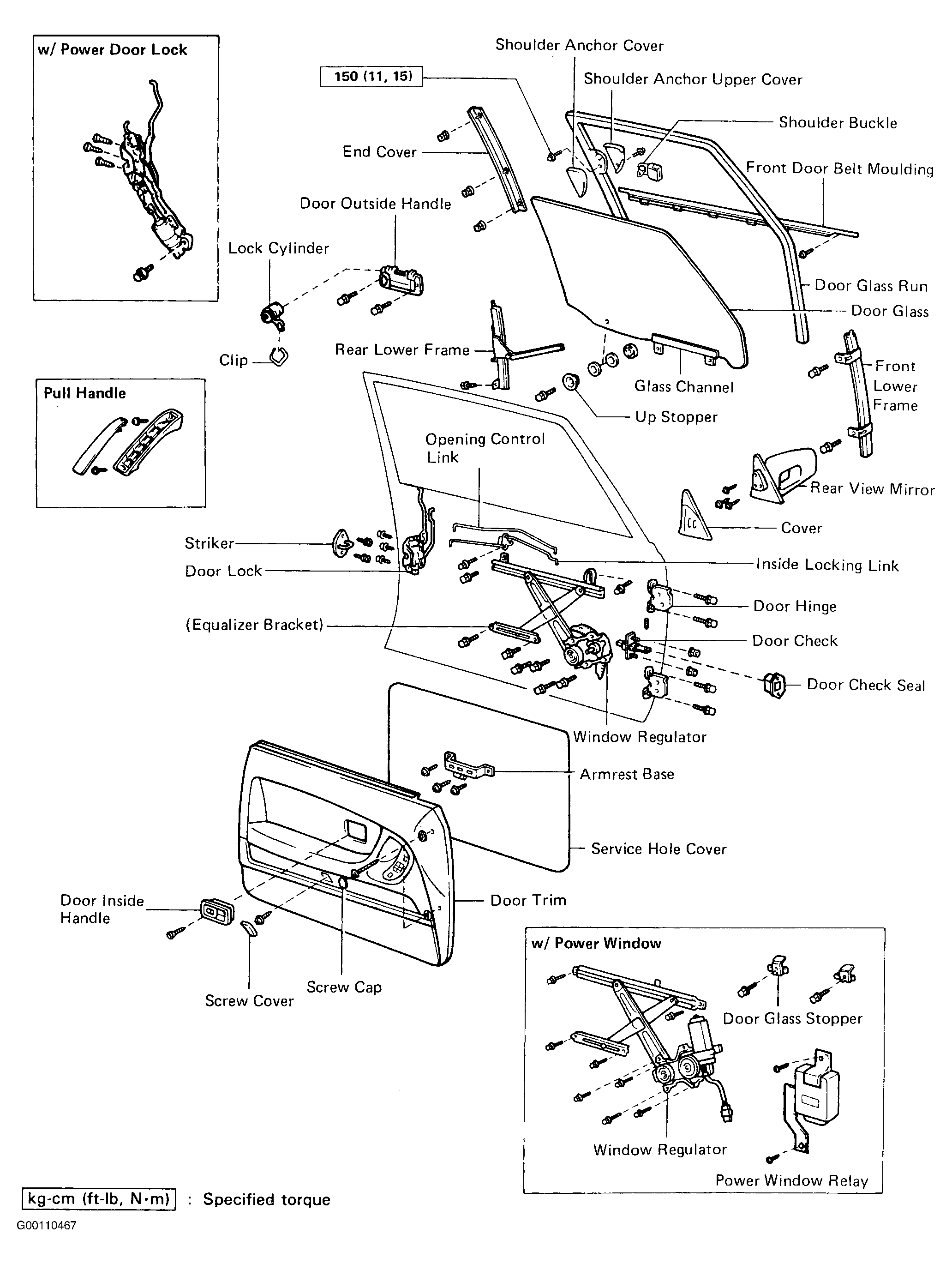

Fig 2: Exploded View Of Front Door (Coupe)
G00110467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
