Power Window Switch

Inspect switches between terminals. See Fig 1. If continuity is not as specified, replace appropriate switch.

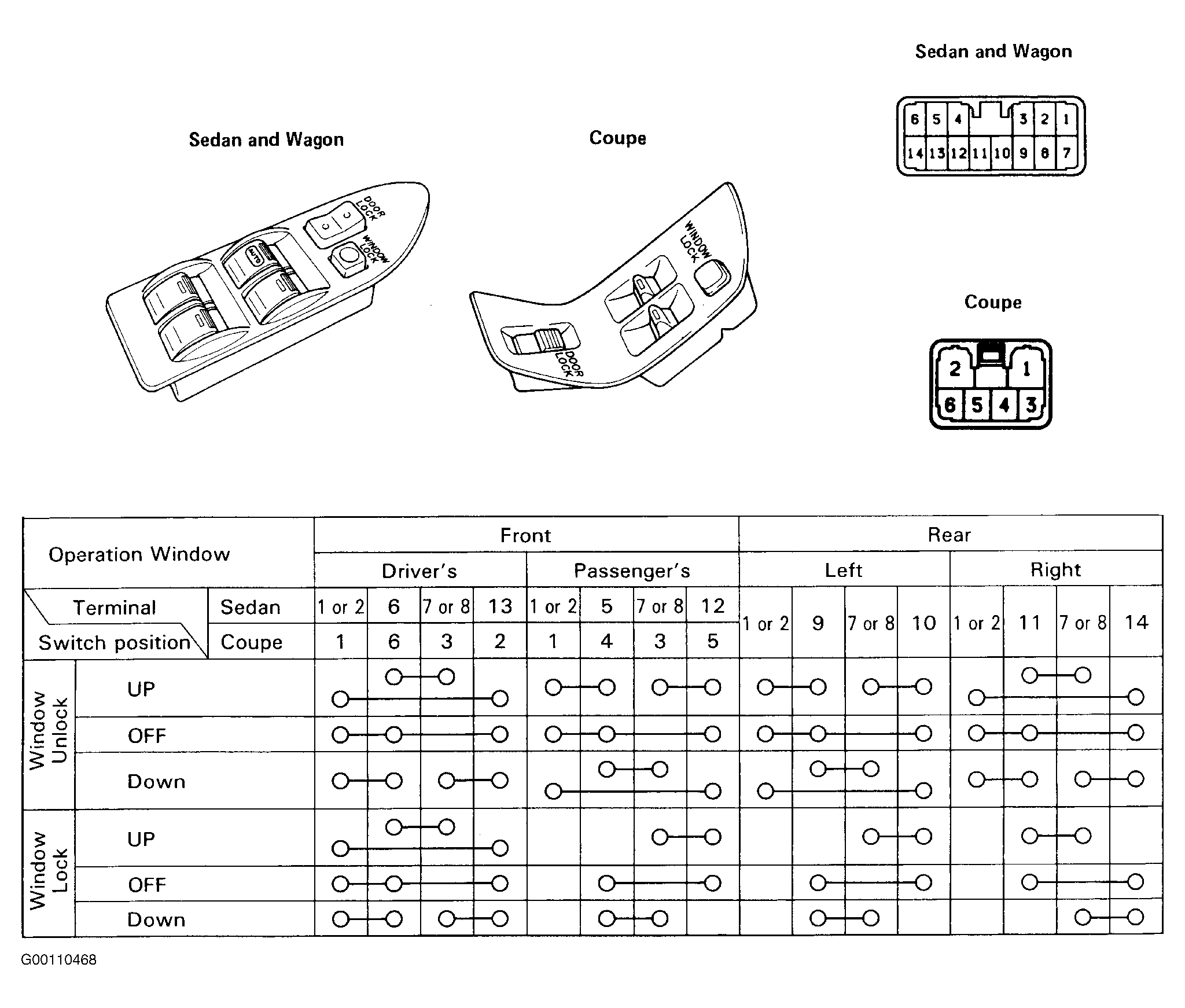

Fig 1: Testing Power Window Switch
G00110468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
