Model Coverage

1990 MODEL IDENTIFICATION

Model

Body

Engine ⁽¹⁾

ID

⁽²⁾Fuel

⁽³⁾Ignition

Camry

SV

2.0L (3S-FE)

S

PFI

⁽⁵⁾

"

VZV

2.5L V6 (2VZ-FE)

V

PFI

⁽⁵⁾

Celica

AT

1.6L (4A-FE)

A

PFI⁽⁴⁾

⁽⁵⁾

"

ST (4WD)

2.0L (3S-GTE)

S

PFI⁽⁸⁾

⁽⁵⁾

"

ST

2.2L (5S-FE)

S

PFI⁽⁴⁾

⁽⁵⁾

Corolla

AE

1.6L (4A-FE)

A

PFI⁽⁴⁾

⁽⁵⁾

"

AE

1.6L (4A-GE)

A

PFI

⁽⁵⁾

Cressida

MX

3.0L 6-Cyl. (7M-GE)

M

PFI

⁽⁵⁾

Land Cruiser

FJ

4.0L 6-Cyl. (3F-E)

F

PFI

⁽⁵⁾

Pickup

RN

2.4L (22R)

R

2-Bbl.

⁽⁵⁾

"

RN

2.4L (22R-E)

R

PFI

⁽⁵⁾

"

VZN

3.0L V6 (3VZ-E)

V

PFI

⁽⁵⁾

Supra

MA

3.0L 6-Cyl. (7M-GE)

M

PFI

⁽⁵⁾

"

MA

3.0L 6-Cyl. (7M-GTE)

M

PFI⁽⁸⁾

⁽⁶⁾

Tercel

EL

1.5L (3E)

E

1-Bbl.⁽⁷⁾

⁽⁵⁾

"

EL

1.5L (3E-E)

E

PFI⁽⁴⁾

⁽⁵⁾

4Runner

RN

2.4L (22R-E)

R

PFI

⁽⁵⁾

"

VZN

3.0L V6 (3VZ-E)

V

PFI

⁽⁵⁾

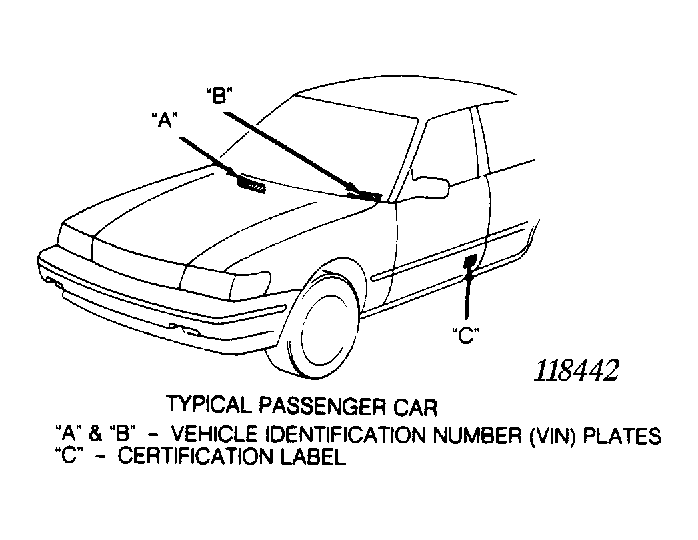

⁽¹⁾	All engines are in-line 4-cylinder type unless otherwise noted. Engine can be identified by the Vehicle Identification Number (VIN) or number stamped on engine block. VIN is located on stamped plate on left side of instrument panel. VIN is also found in other locations. See Figure-10.

⁽²⁾	PFI is port fuel injection.

⁽³⁾	All except carbureted vehicles have computer controlled ignition timing advance.

⁽⁴⁾	Uses "D" Jetronic-type PFI with Manifold Air Pressure (MAP) sensor.

⁽⁵⁾	Distributorless ignition system.

⁽⁶⁾	Distributorless ignition system.

⁽⁷⁾	Computer-controlled feedback carburetor.

⁽⁸⁾	Turbocharged.
