Coolant Temp Sensor Test
- Ensure ignition is off. Unplug connector from sensor. For sensor location, see appropriate illustration in THEORY/OPERATION article in this section.

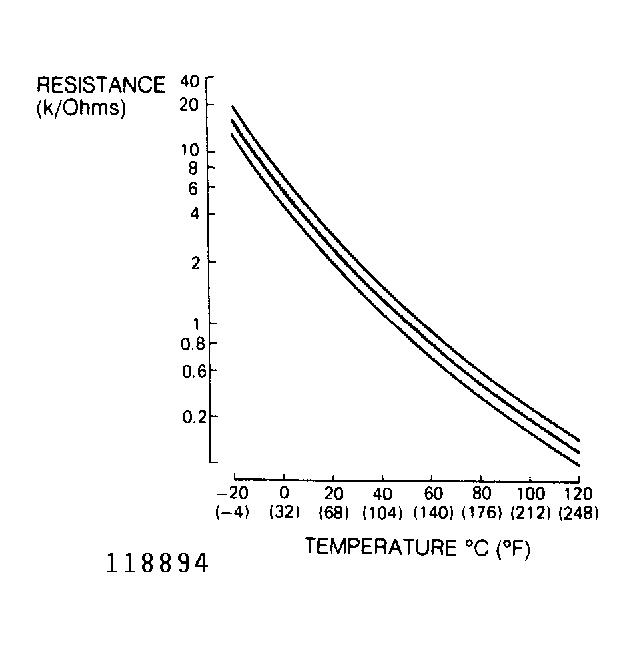

- Using ohmmeter, check resistance between sensor terminals. Replace sensor if resistance is not within specification at specified temperature.
