Shift Lock Control Switch

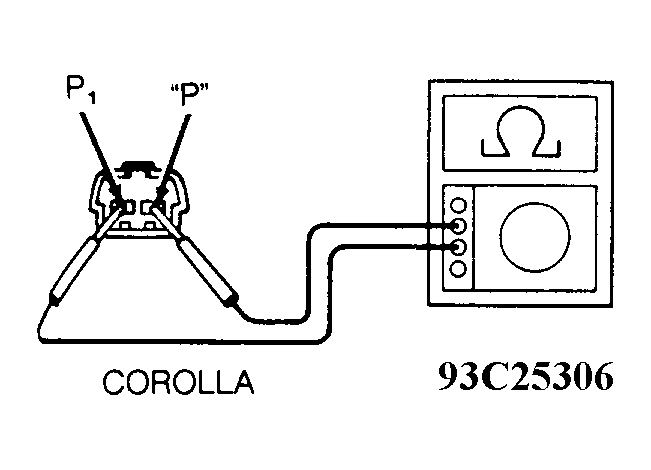

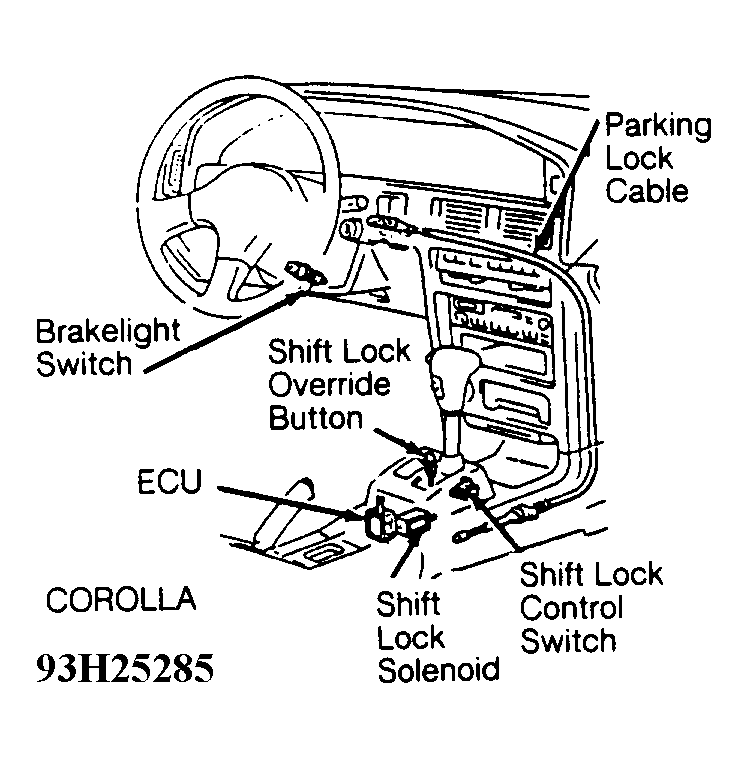

- Disconnect electrical connector from shift lock control switch. See Figure. Note electrical connector terminal identification. See Fig 1.
- Using ohmmeter, check continuity of terminals in relation to shift lever. See SHIFT LOCK CONTROL SWITCH CONTINUITY table. Replace switch if continuity is not as specified.
NOTE:
Continuity must be checked in accordance with position of release
button on shift lever and shift lever position.
SHIFT LOCK
CONTROL SWITCH CONTINUITY
| Shift Lever Position & Condition | Terminals |
|---|---|
| Park & Release Button Not Pushed | "P" & P1 |
| Any Other Gear Except Park | No Continuity Between "P" & P1 |
