Cold Start Injector Time Switch Test

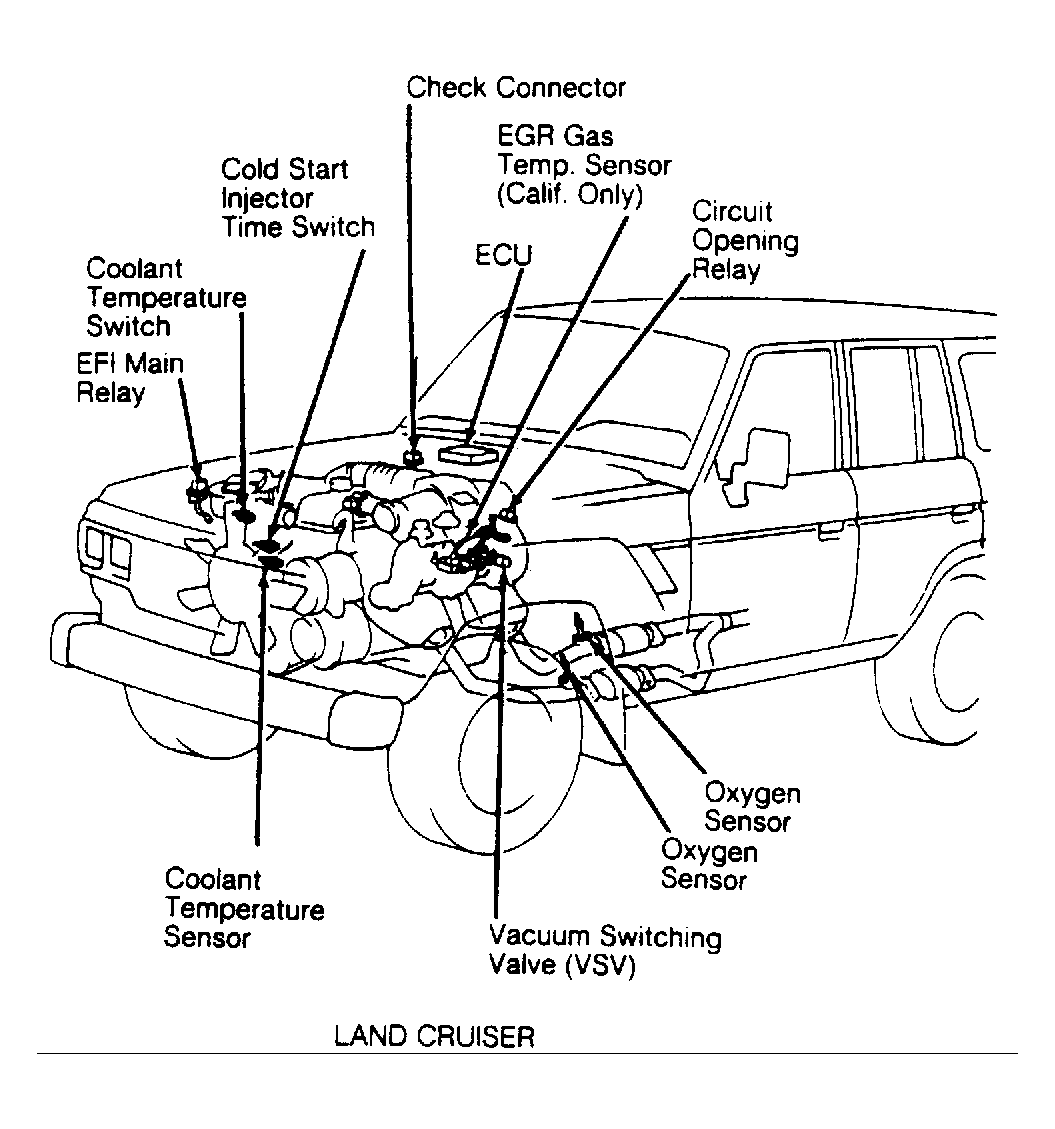

- Unplug cold start injector time switch connector. For cold start injector time switch location, See Figure.
- Using ohmmeter, check resistance between terminals "STA" & "STJ" at appropriate temperature. See Fig 1. See COLD START INJECTOR TIME SWITCH SPECIFICATIONS table. There should be continuity between terminal "STA" and ground. Replace switch if not within specification.
NOTE:
"STA" terminal is fed current from ignition switch during cranking. "STJ" goes to cold start injector.
COLD START INJECTOR TIME SWITCH SPECIFICATIONS
| Ohms | Condition |
|---|---|
| 30-50 | Below 59°F (15°C) |
| 70-90 | Above 86°F (30°C) |
| 30-90 | "STA" To Ground |
