Engine Controls - System/Component Tests - EFI: Maintenance

1. Inspect fuel tank, canister, vacuum relief filler cap, lines and hoses for damage, leaks, and deterioration every 60,000 miles or every 6 years. Replace gasket in vacuum relief filler cap.
2. To clean charcoal canister filter, remove hoses from canister and apply 43 psi (3 kg/cm² ) air pressure to fuel tank port. Hold other top ports closed. Ensure that no carbon comes out of bottom port of canister.

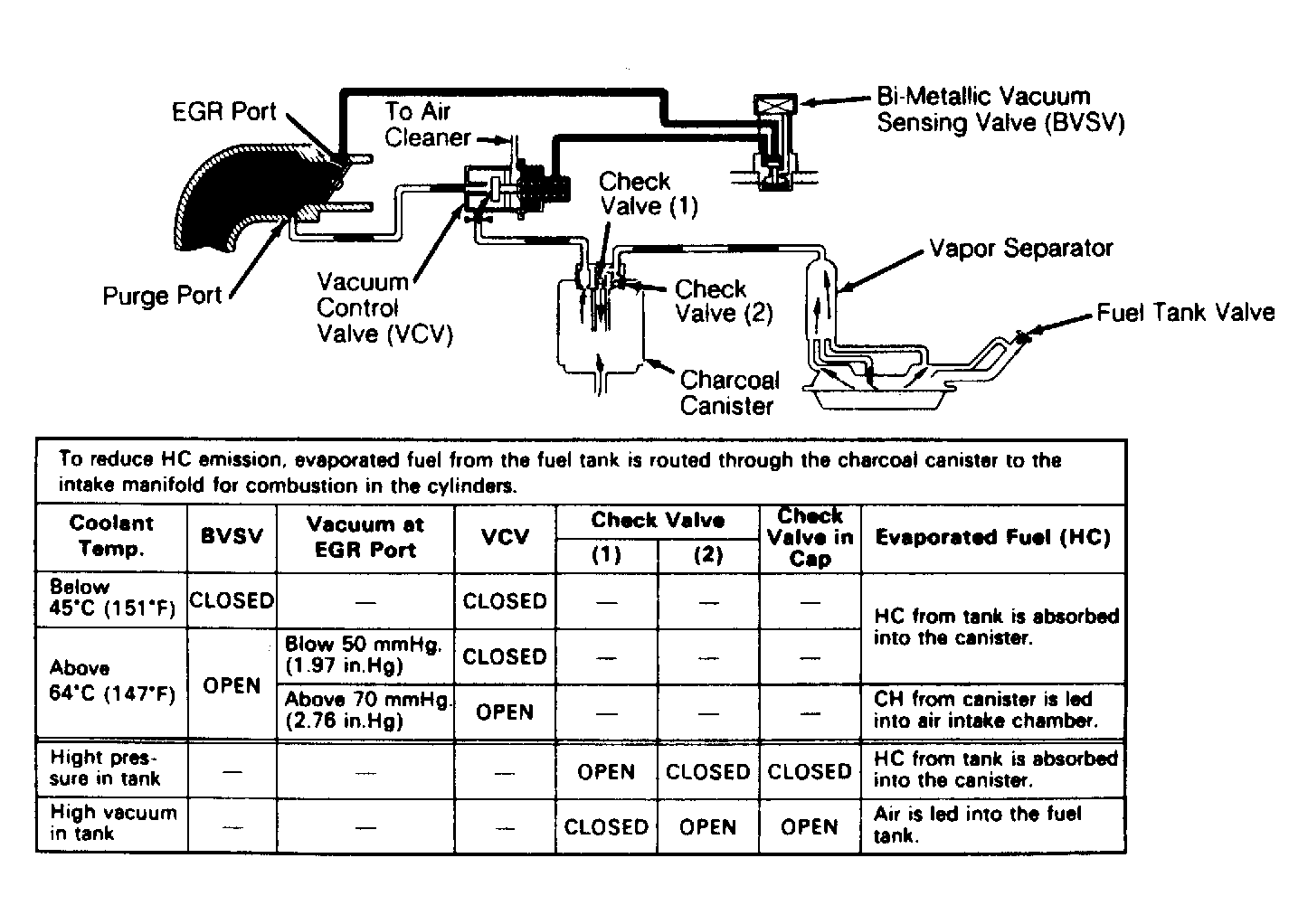

Fig 1: Evaporative Emission Components & Parameters

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
