Pick-Up Coil Air Gap Check

Using a flat, non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See:

• For Pickup, Fig 1.
• For Tercel, Fig 2.

Air gap should be .008-.016" (.20-.40 mm). Pick-up coil is not adjustable. If air gap is not within specification, pick-up coil must be replaced.

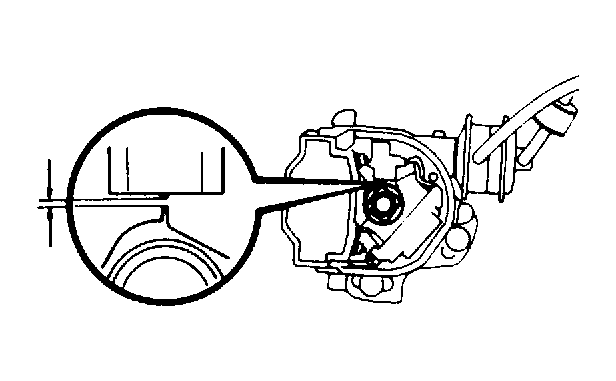

Fig 1: Checking Pick-Up Coil Air Gap (Pickup)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

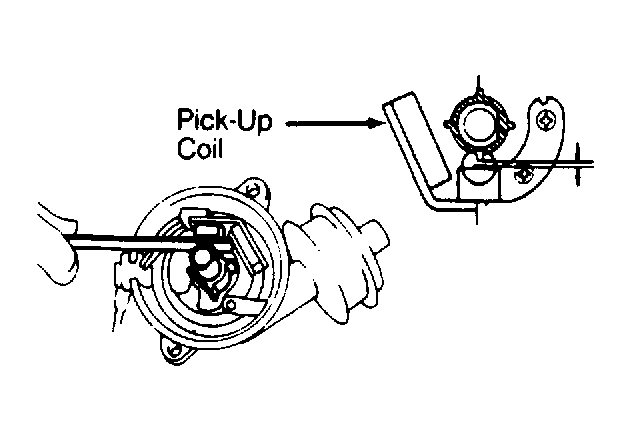

Fig 2: Checking Pick-Up Coil Air Gap (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
