Pick-Up Coil Resistance Check: Pickup

Measure resistance of pick-up coil between terminals NE (+) and NE (-). See Fig 2. If resistance is not within specification, replace pick-up coil. See PICK-UP COIL RESISTANCE table. If resistance is within specification, proceed to PICK-UP COIL AIR GAP CHECK .

Fig 1: Testing Pick-Up Coil Resistance (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

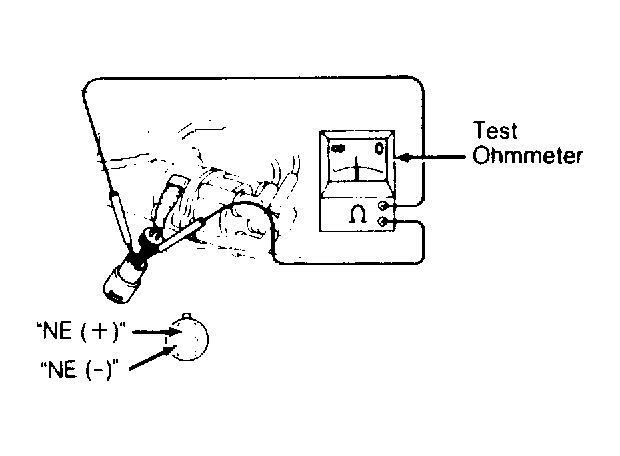

Fig 2: Testing Pick-Up Coil Resistance (Pickup)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PICK-UP COIL RESISTANCE SPECIFICATION

Application

Ohms

All Models ⁽¹⁾

140-180

⁽¹⁾	Check at room temperature.
