Pick-Up Coil Resistance Check: Tercel

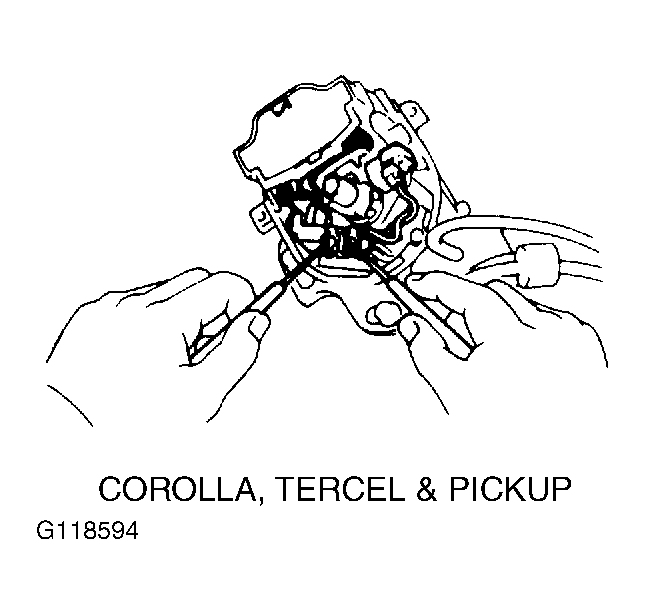

Using an ohmmeter, measure resistance of pick-up coil. See Figure. If resistance is not within specification, replace pick-up coil. See PICK-UP COIL RESISTANCE  table. If resistance is within specification, proceed to PICK-UP COIL AIR GAP CHECK .
