Ignition Timing

IGNITION TIMING (Degrees BTDC @ RPM)

Application Base Timing Advance Timing
Cressida 10 @ 700 9-11 @ Idle

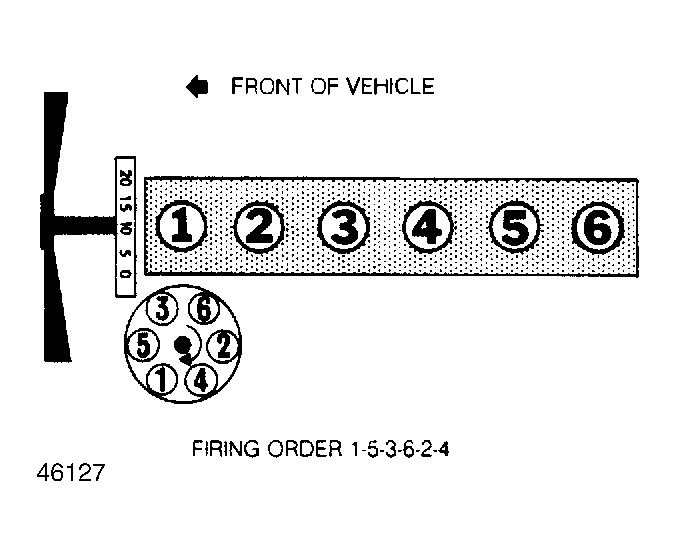

Fig 1: Firing Order & Distributor Rotation
G46127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
