Ignition Timing

IGNITION TIMING (Degrees BTDC @ RPM)

Application Base Timing Advance Timing
Land Cruiser 7 @ 650 12 @ Idle

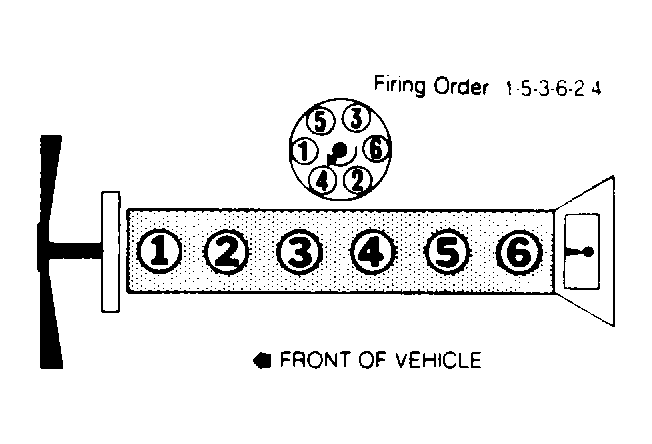

Fig 1: Firing Order & Distributor Rotation
G46669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
