Ignition Timing

IGNITION TIMING - Degrees BTDC @ RPM

Application Base Timing (1) Advance Timing
Tercel 10 @ Idle 7-17 @ Idle
(1) With check connector terminals TE1 and E1 jumpered.

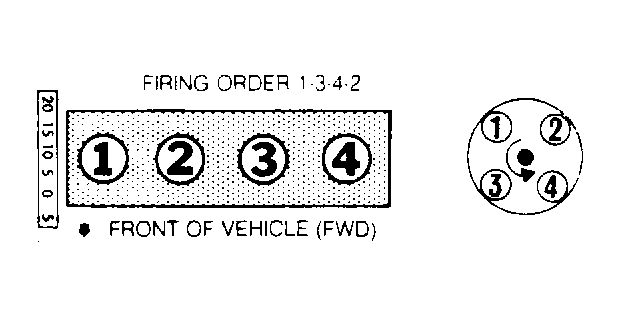

Fig 1: Firing Order & Distributor Rotation
G93207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
