Pick-Up Coil Resistance

Note pick-up coil terminal identification on the distributor. See Fig 1 & 10. Using ohmmeter, measure resistance between specified terminals and ensure resistance is within specification. See PICK-UP COIL RESISTANCE SPECIFICATIONS table.
Replace distributor assembly if pick-up coil resistance is not within specification.

PICK-UP COIL RESISTANCE SPECIFICATIONS

Application

Terminals

⁽¹⁾ Ohms

Camry 3.0L

G1 & G-

125-190

G2 & G-

125-190

NE & G-

155-240

Pickup & 4Runner 3.0L

G1 & G-

125-190

G2 & G-

125-190

NE & G-

155-240

⁽¹⁾	Specification is with pick-up coil temperature of 14-104°F (-10-40°C).

Fig 1: Identifying Pick-Up Coil Terminals (Camry 3.0L)

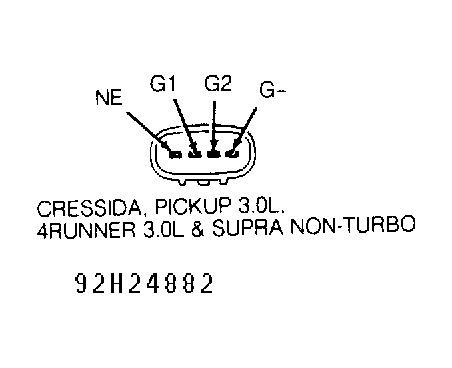

Fig 2: Identifying Pick-Up Coil Terminals (P/U & 4Runner 3.0L)
