Pick-Up Coil Air Gap

Using a flat, non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 1-40.
Replace distributor assembly if pick-up coil air gap is not within specification. See PICK-UP COIL AIR GAP SPECIFICATIONS table.

PICK-UP COIL AIR GAP SPECIFICATIONS

Application	In. (mm)
4-Cylinder	.008-.016 (.20-.40)

Fig 1: Checking Pick-Up Coil Air Gap (Camry 2.2L & Celica 2.2L 5S-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

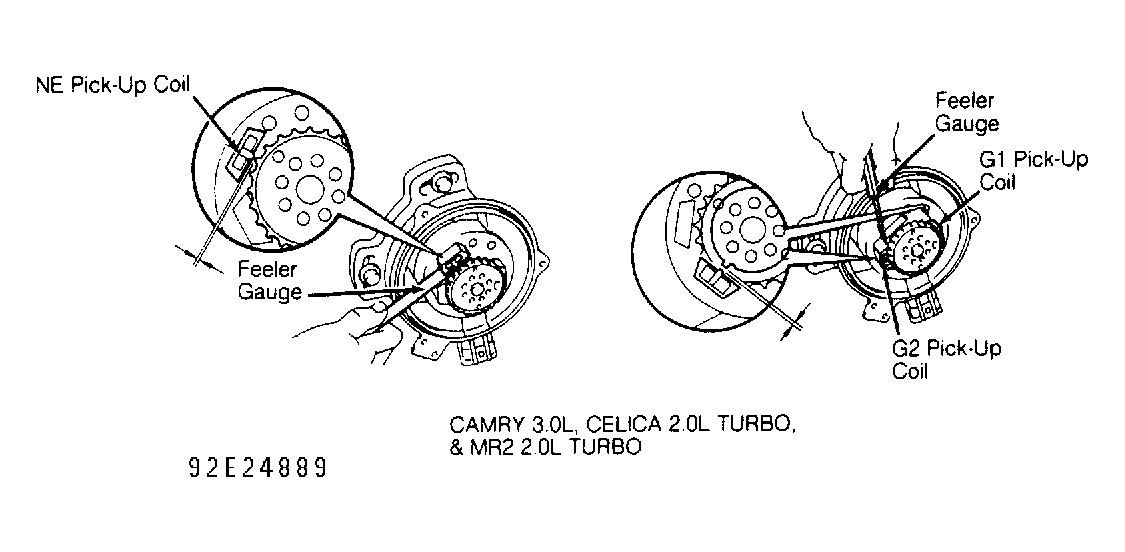

Fig 2: Checking Pick-Up Coil Air Gap (Celica 2.0L Turbo & MR2 2.0L Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Checking Pick-Up Coil Air Gap (Celica 1.6L 4A-FE & Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Checking Pick-Up Coil Air Gap (MR2 2.2L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Checking Pick-Up Coil Air Gap (Paseo)

Fig 6: Checking Pick-Up Coil Air Gap (P/U 2.4L & 4Runner 2.4L)

Fig 7: Checking Pick-Up Coil Air Gap (Previa)

Fig 8: Checking Pick-Up Coil Air Gap (Tercel)
