Pick-Up Coil Resistance

Note pick-up coil terminal identification on the distributor. See Fig 1-32. Using ohmmeter, measure resistance between specified terminals and ensure resistance is within specification. See PICK-UP COIL RESISTANCE SPECIFICATIONS table.
Replace distributor assembly if pick-up coil resistance is not within specification.

PICK-UP COIL RESISTANCE SPECIFICATIONS

Application

Terminals

⁽¹⁾ Ohms

Camry

2.2L

G+ & G-

185-265

2.2L

NE+ & NE-

370-530

Celica

1.6L (4A-FE)

G1 & G-

185-265

1.6L (4A-FE)

NE+ & G-

185-265

2.0L Turbo

G1 & G-

125-190

2.0L Turbo

G2 & G-

125-190

2.0L Turbo

NE & G-

155-240

2.2L (5S-FE)

G+ & G-

185-265

2.2L (5S-FE)

NE+ & NE-

370-530

Corolla

G1 & G-

185-265

Corolla

NE+ & G-

185-265

MR2

2.0L Turbo

G1 & G-

125-190

2.0L Turbo

G2 & G-

125-190

2.0L Turbo

NE & G-

155-240

2.2L (5S-FE)

G1 & G-

150-230

2.2L (5S-FE)

NE & G-

150-230

Paseo

G+ & G-

185-265

Paseo

NE+ & NE-

370-530

Pickup & 4Runner

2.4L

NE- & NE+

185-265

Previa

NE & G-

155-240

Previa

G1 & G-

125-190

Previa

G2 & G1

125-190

Tercel

NE & NE-

370-530

⁽¹⁾	Specification is with pick-up coil temperature of 14-104°F (-10-40°C).

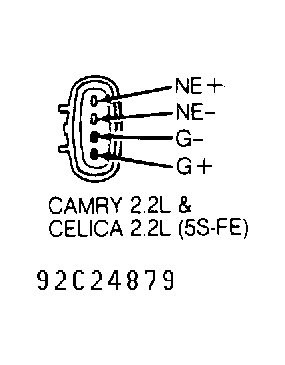

Fig 1: Pick-Up Coil Terminal ID (Camry 2.2L & Celica 2.2L 5S-FE)

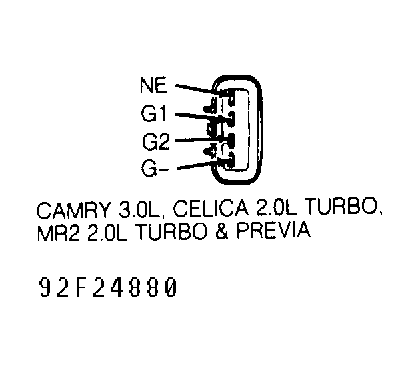

Fig 2: Pick-Up Coil Terminal ID (Celica 2.0L Turbo, MR2 2.0L Turbo & Previa)

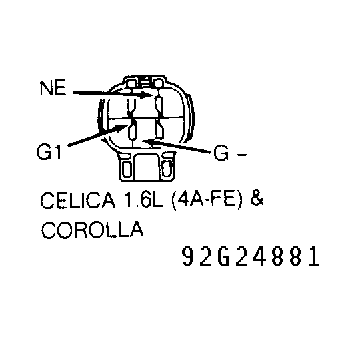

Fig 3: Pick-Up Coil Terminal ID (Celica 1.6L 4A-FE & Corolla)

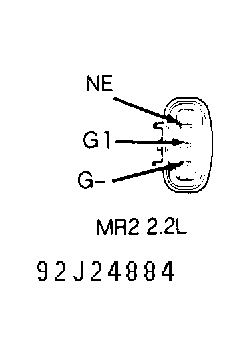

Fig 4: Identifying Pick-Up Coil Terminals (MR2 2.2L)

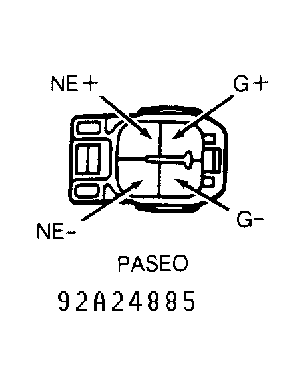

Fig 5: Identifying Pick-Up Coil Terminals (Paseo)

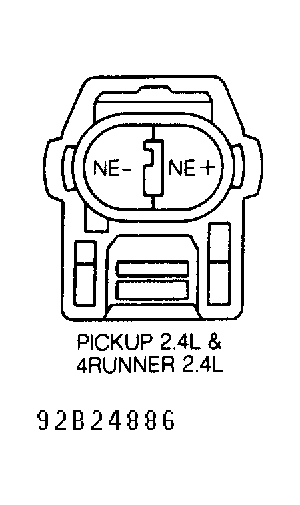

Fig 6: Identifying Pick-Up Coil Terminals (P/U 2.4L & 4Runner 2.4L)

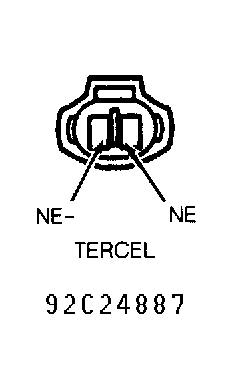

Fig 7: Identifying Pick-Up Coil Terminals (Tercel)
