Circuit Opening Relay

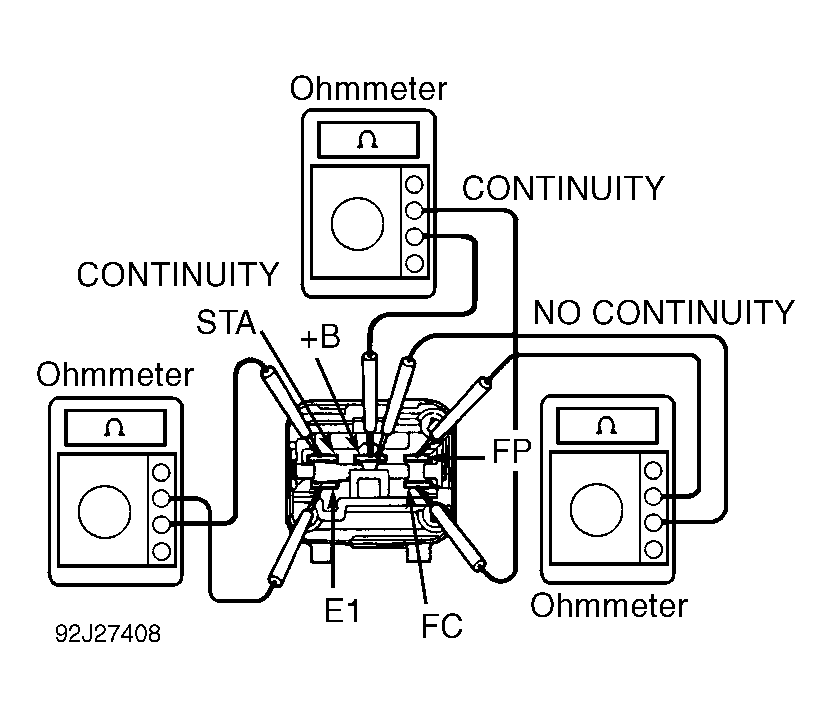

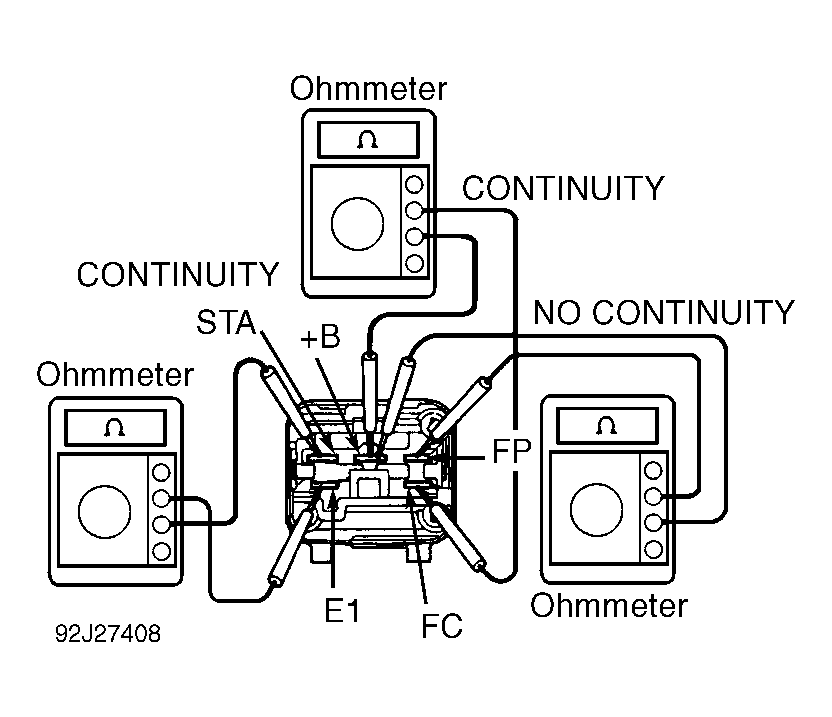

- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 1 & Fig 2 .

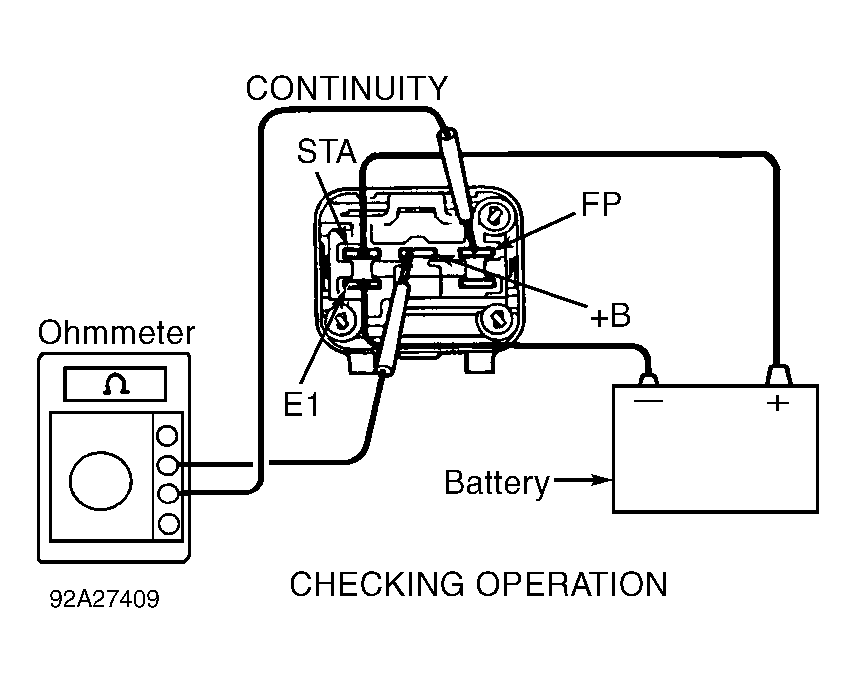

- Check circuit opening relay operation by applying battery voltage and checking continuity between specified terminals. See Fig 1 & Fig 2 . Replace circuit opening relay if defective.
NOTE:
Circuit opening relay may also be identified by appropriate illustration in THEORY/OPERATION
article in the ENGINE PERFORMANCE Section or wire color. See appropriate wiring diagram in WIRING DIAGRAMS
article in the ENGINE PERFORMANCE Section.
CIRCUIT OPENING RELAY LOCATION
| Application | Location |
|---|---|
| Corolla | Bottom Center Of Dash, In Front Of Console, Attached To ECU |
