Code 21/Test No. 4 - O2 Sensor Signal

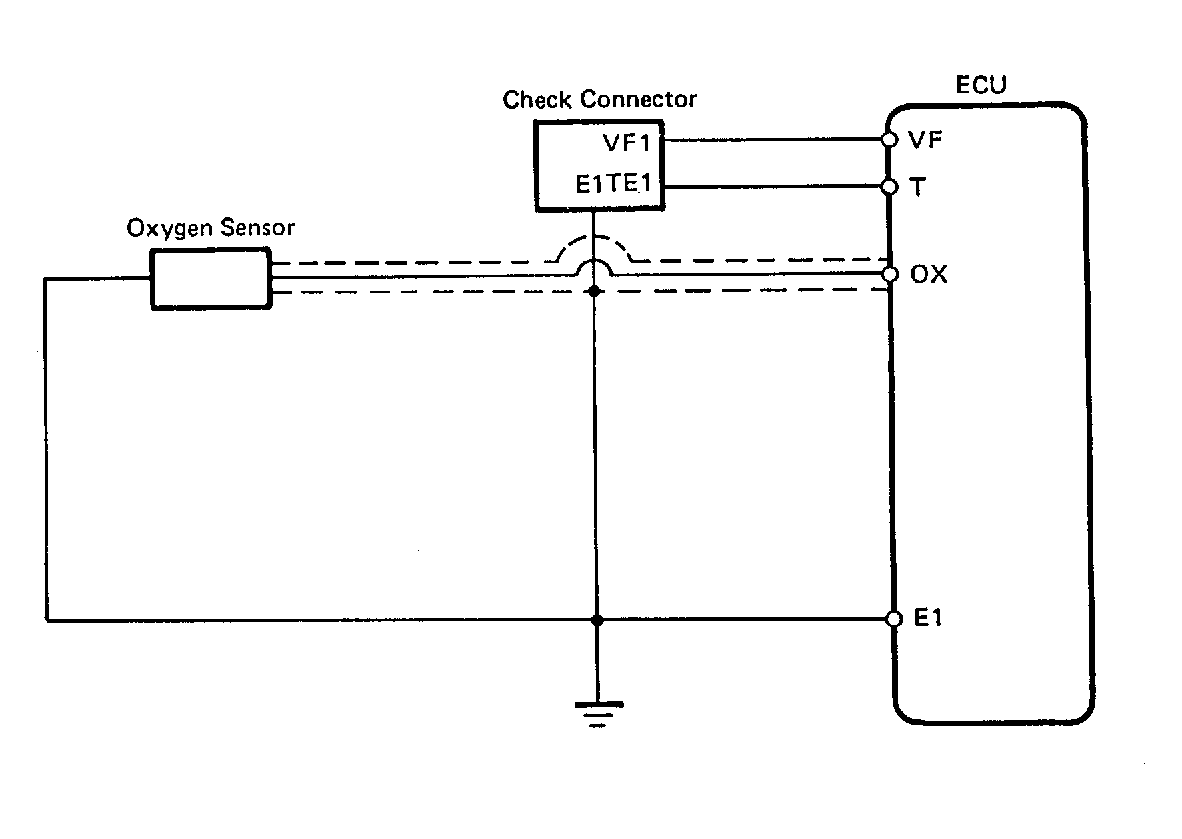

Fig 1: Code 21/Test No. 4 Schematic (4A-FE) O2 Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

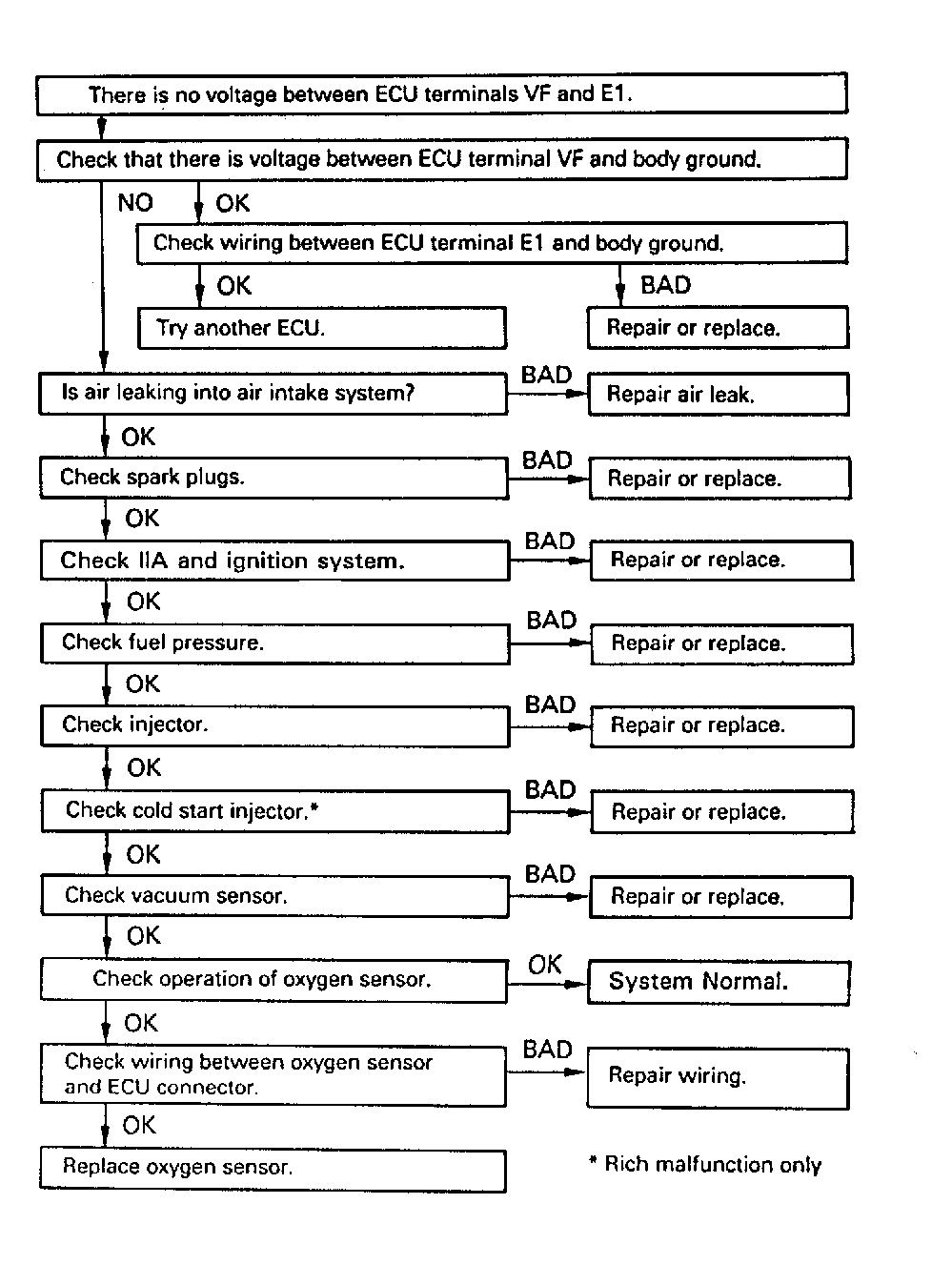

Fig 2: Code 21/Test No. 4 Flow Chart (4A-FE) O2 Sensor Signal
