Code 41/Test No. 8 - Throttle Position Sensor Signal

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
IDL-E2	No Voltage	IG SW ON - Throttle Valve OPEN	4.5-5.5V
PSW-E2		IG SW ON - Throttle Valve CLOSED	4.5-5.5V

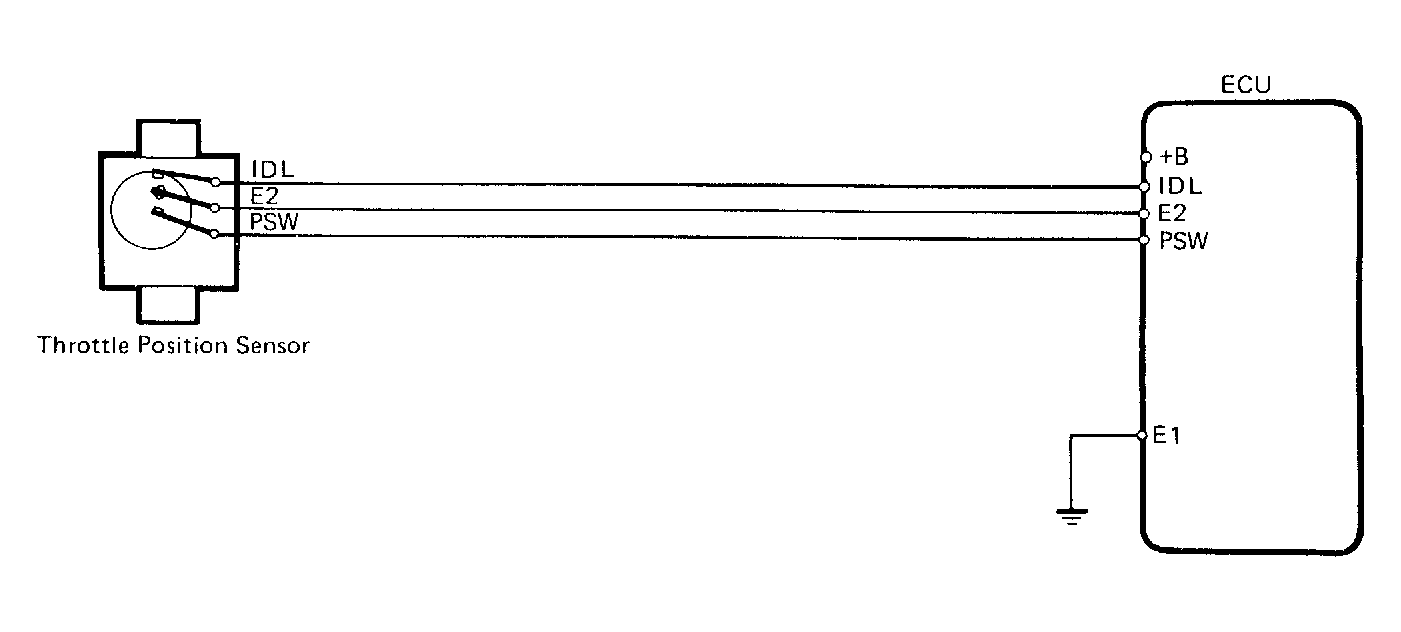

Fig 1: Code 41/Test No. 8 Schematic (4A-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

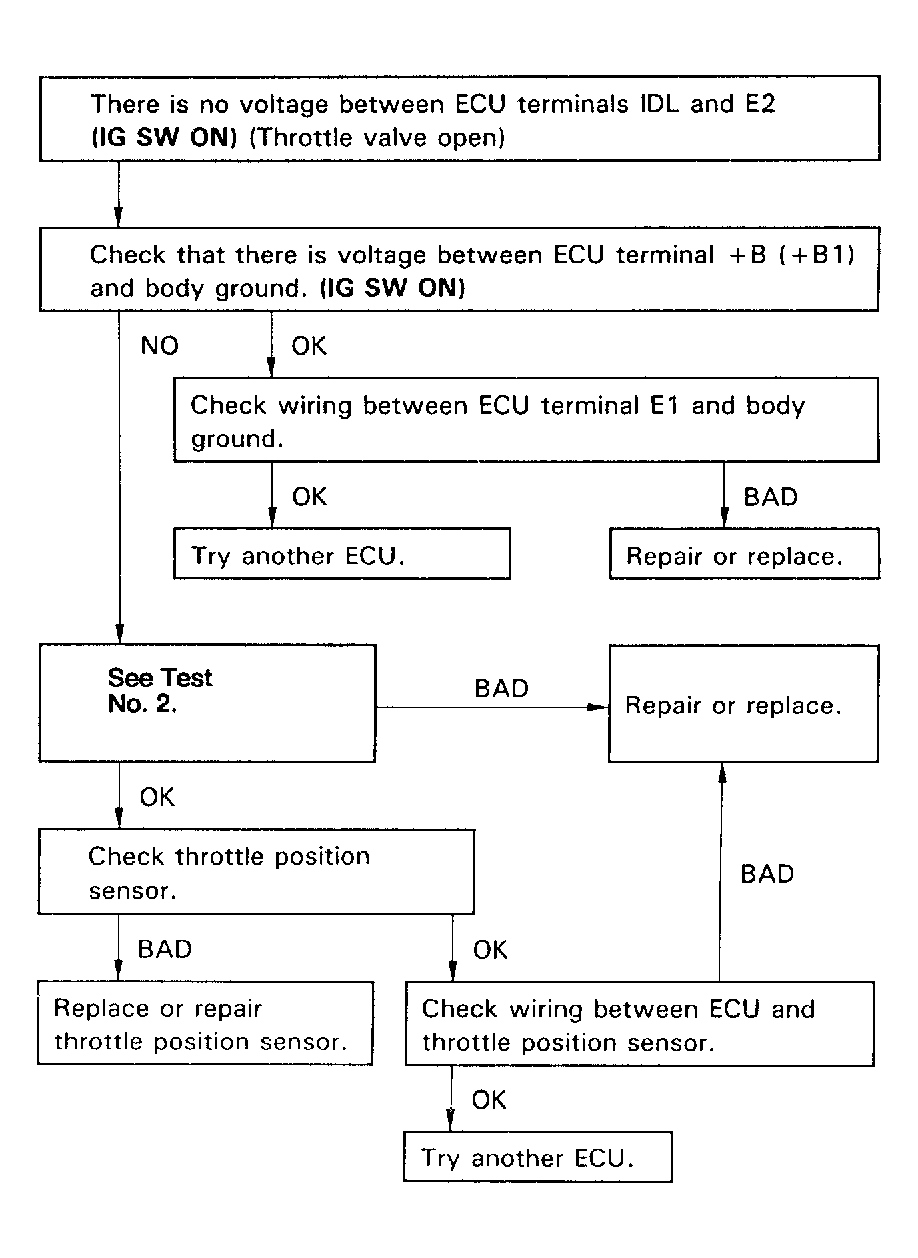

Fig 2: Code 41/Test No. 8 Flow Chart (4A-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
