Diagnostic Circuit Check

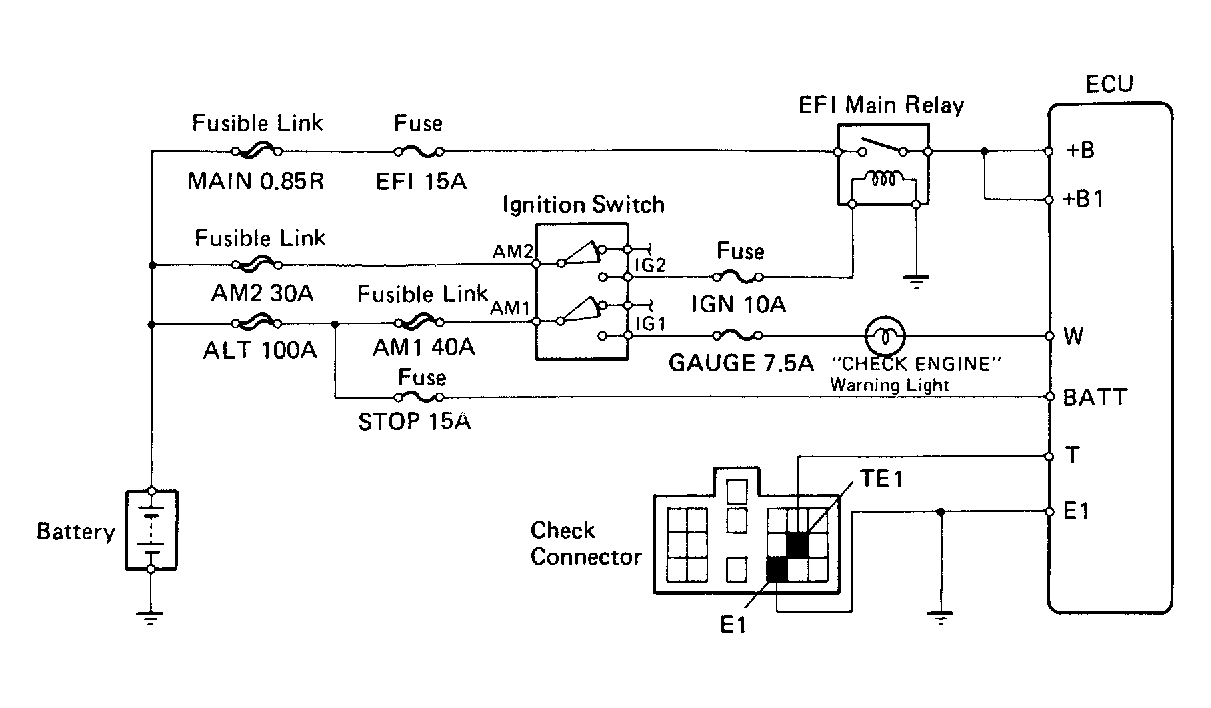

Fig 1: Diagnostic Circuit Check Schematic
G91G17760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

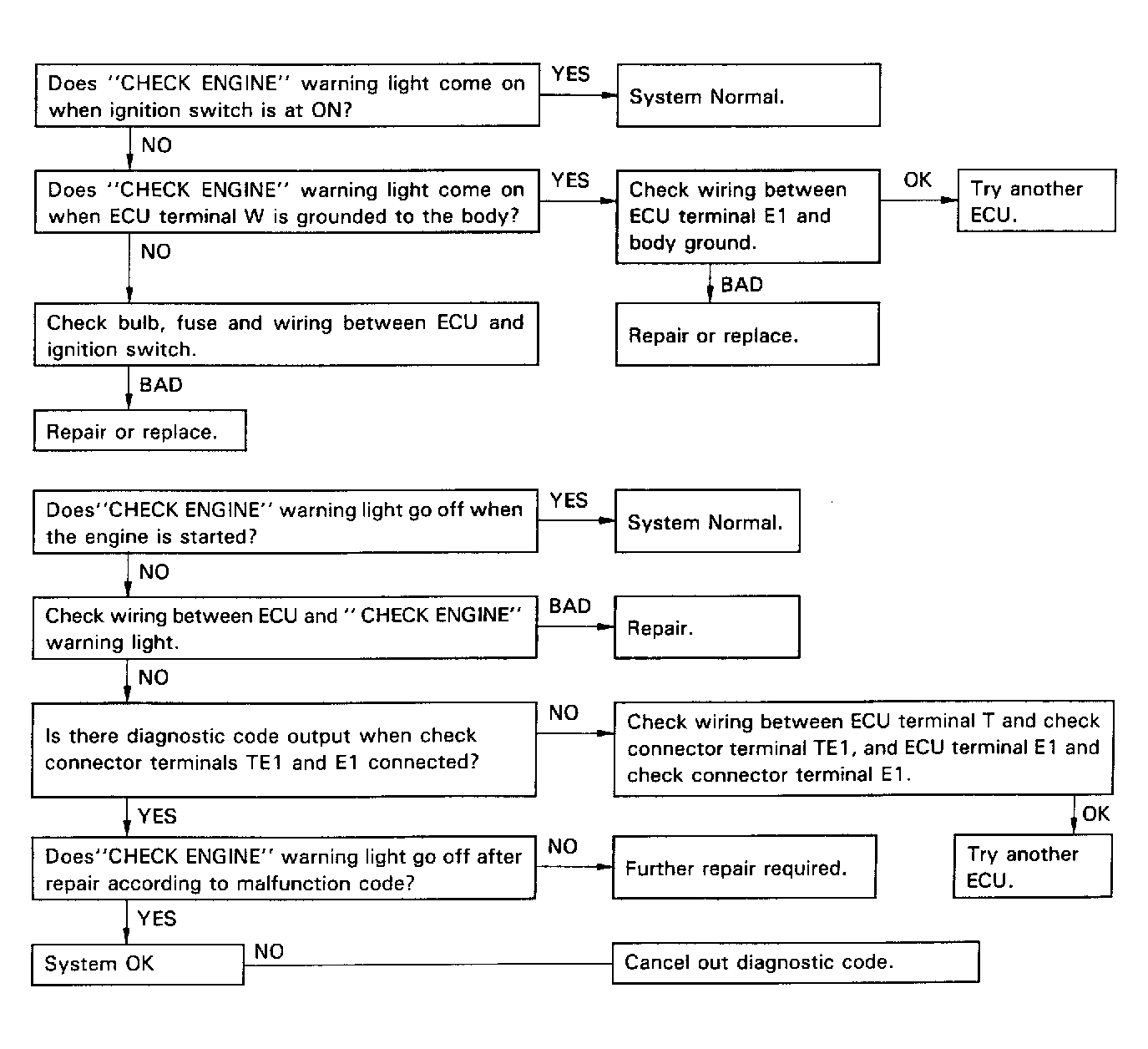

Fig 2: Diagnostic Circuit Check Flow Chart
G91H17761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
