Ecu Terminal Identification

CAUTION: Perform all voltage measurements with ECU harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.

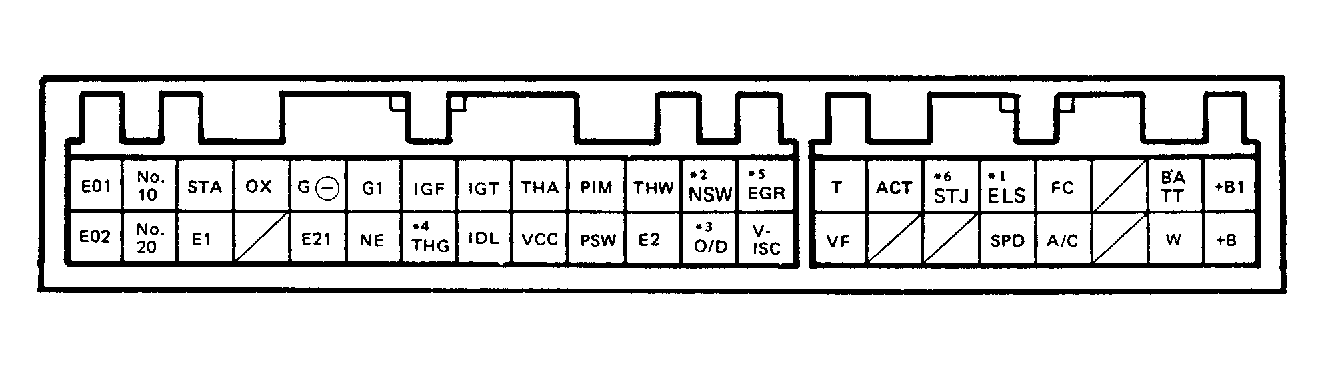

Fig 1: ECU Terminal ID
G91I17762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
