Test No. 12 - Injector Circuit

TEST NO. 12 - INJECTOR CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
No.10 & No.20 toE01 & E02 No Voltage Ignition Switch ON 10-14V

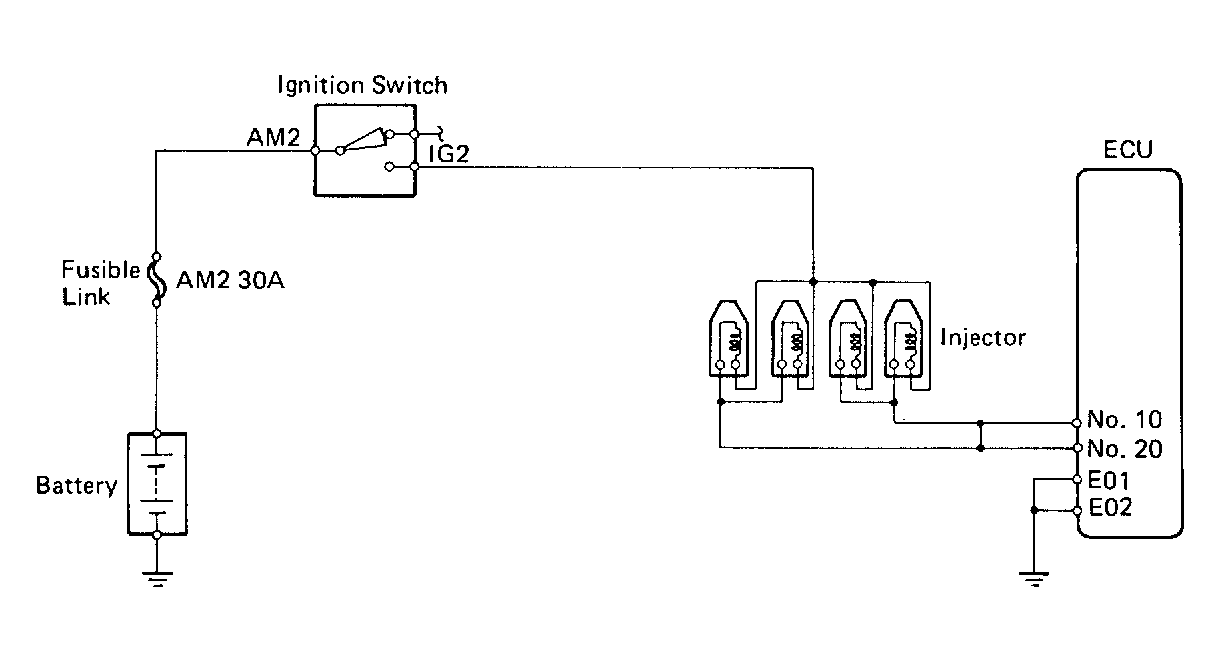

Fig 1: Test No. 12 Schematic Injector Circuit
G91I17788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

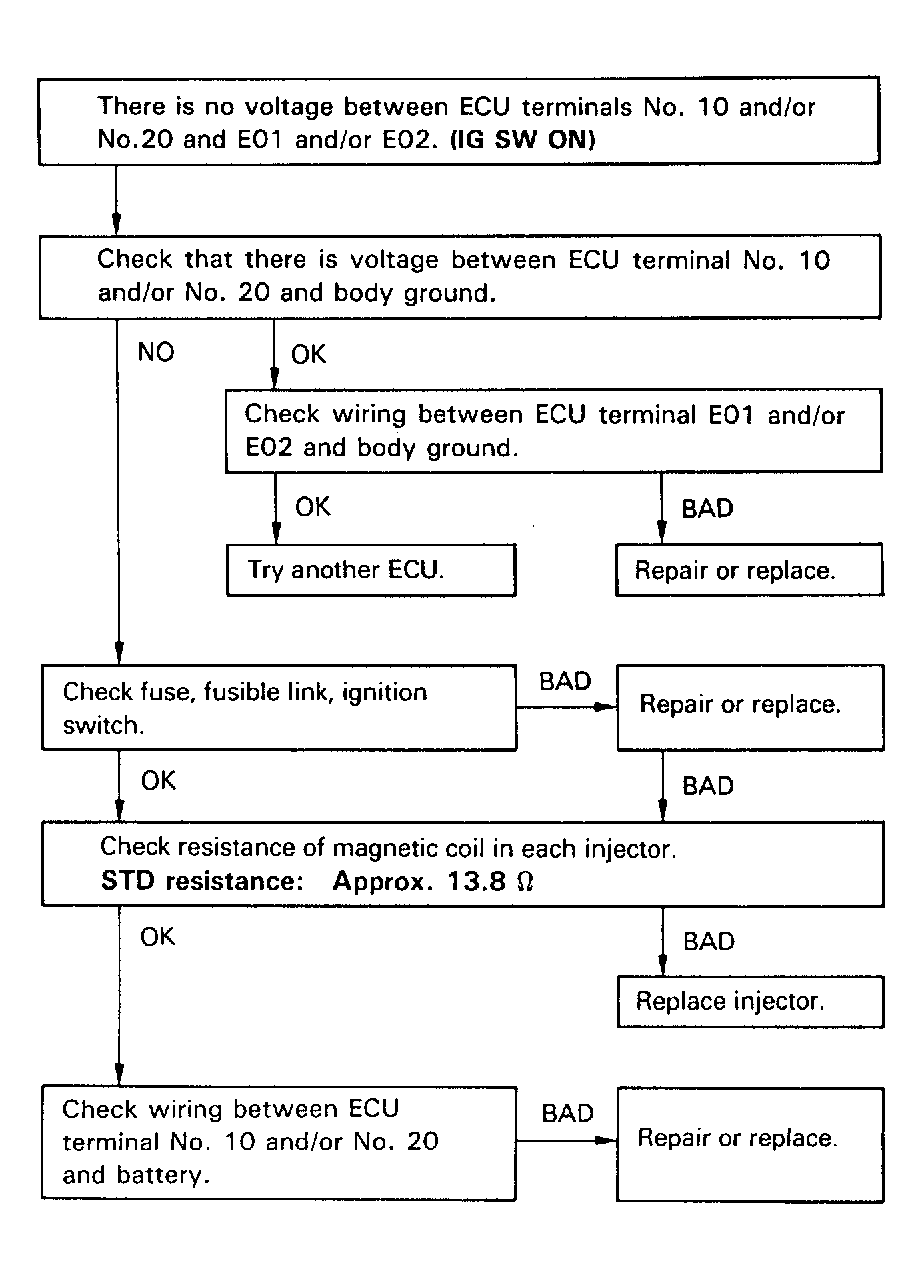

Fig 2: Test No. 12 Flow Chart Injector Circuit
G91J17789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
