With ignition in ON or ACC position and shift lever in Park, shift lock control switch opens and voltage from ECU to key interlock solenoid is turned off. When key interlock solenoid is turned off, ignition key can be turned from ACC to LOCK position on ignition switch.

NOTE: If ignition is left in ACC or ON position with shift lever in any gear range except Park for about one hour, ECU then operates to release the lock mechanism.

Fig 1: Shift & Key Lock System Component Locations (1 Of 9)

G93E25282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

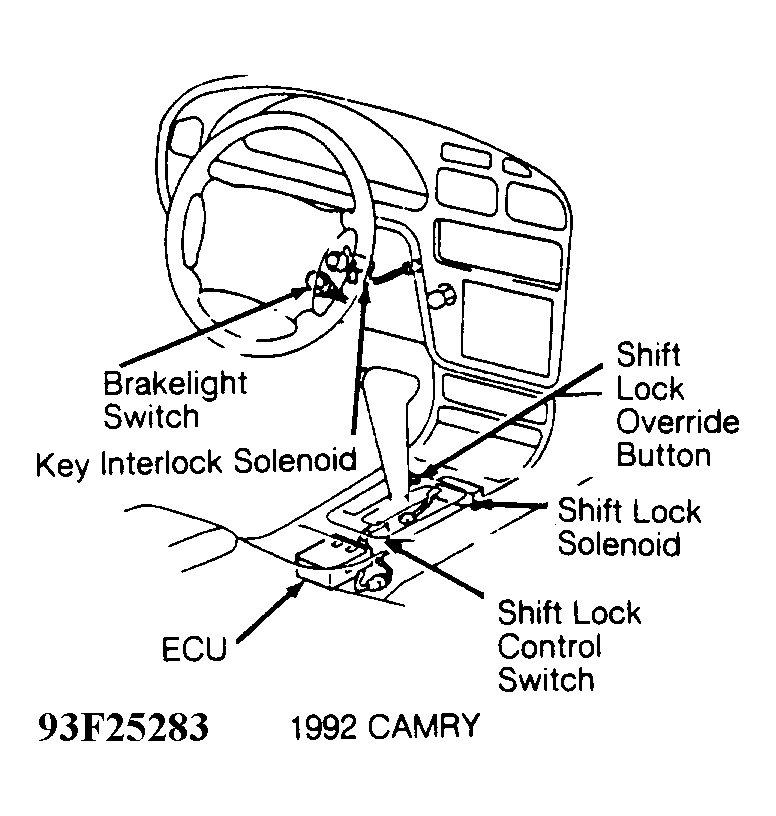

Fig 2: Shift & Key Lock System Component Locations (2 Of 9)

G93F25283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

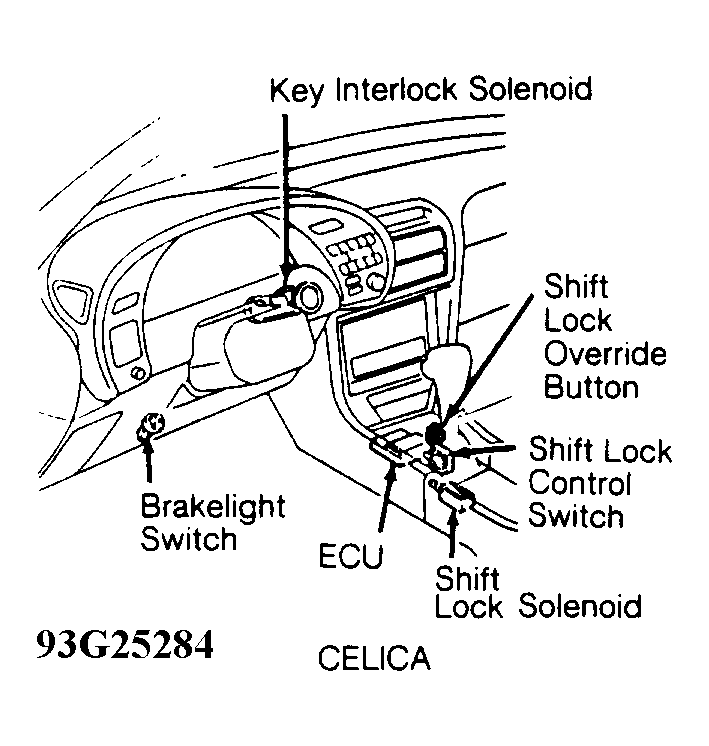

Fig 3: Shift & Key Lock System Component Locations (3 Of 9)

G93G25284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Shift & Key Lock System Component Locations (4 Of 9)

G93H25285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

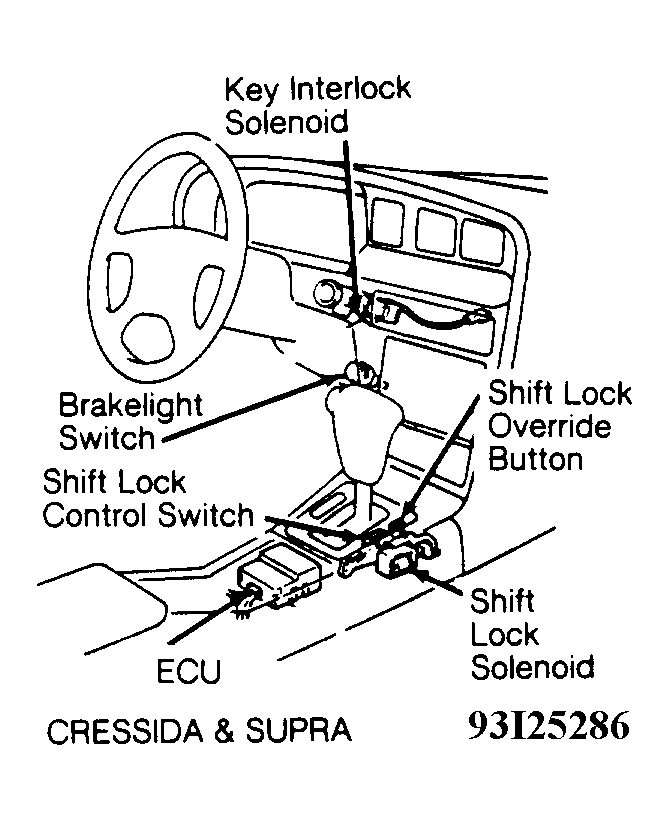

Fig 5: Shift & Key Lock System Component Locations (5 Of 9)

G93I25286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Shift & Key Lock System Component Locations (6 Of 9)

G93J25287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

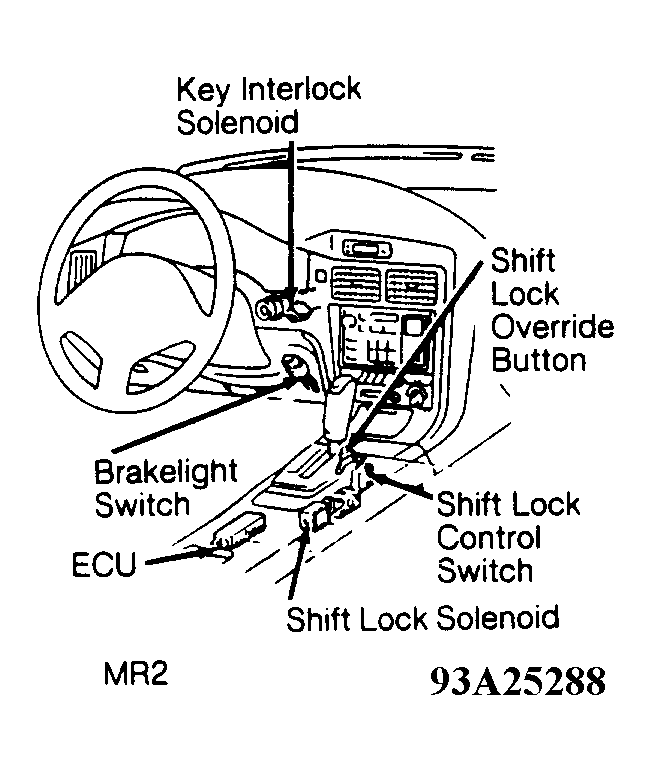

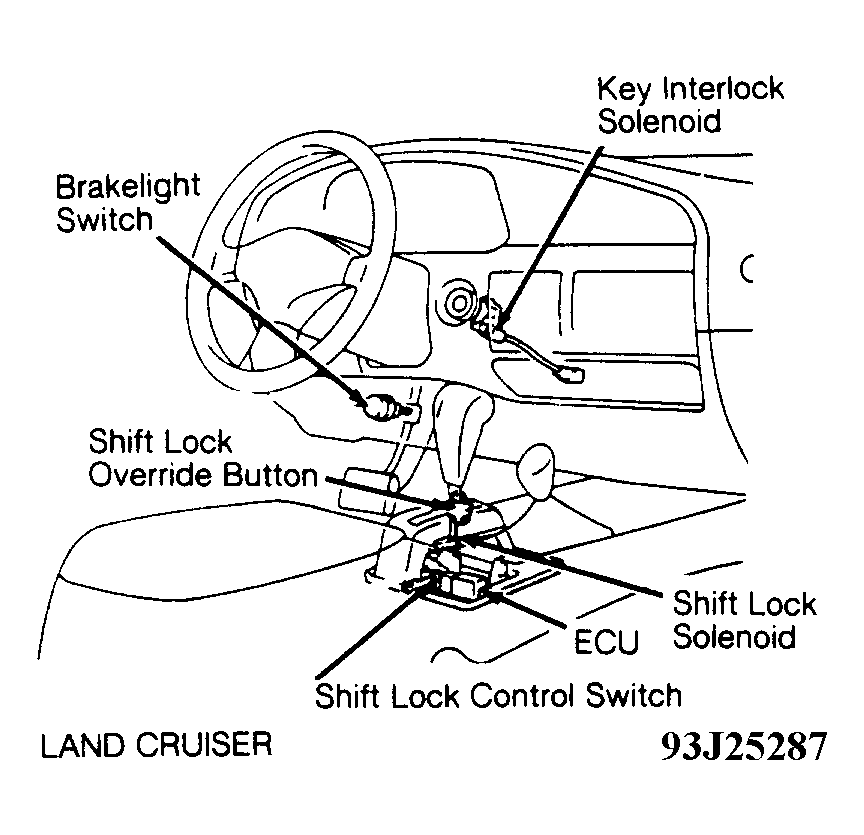

Fig 7: Shift & Key Lock System Component Locations (7 Of 9)

G93A25288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

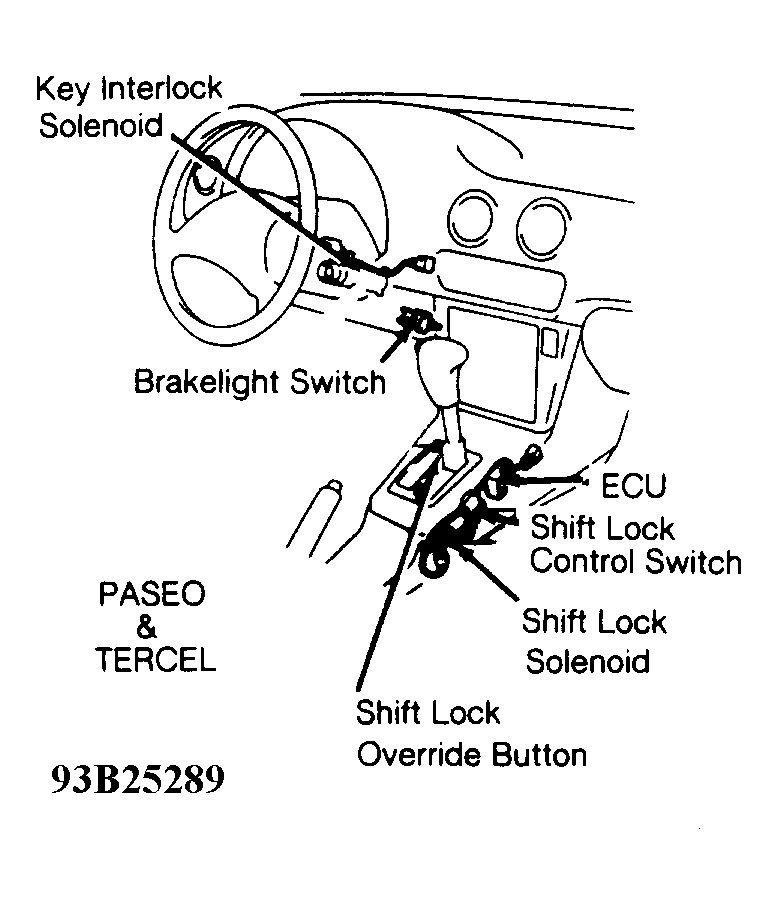

Fig 8: Shift & Key Lock System Component Locations (8 Of 9)

G93B25289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

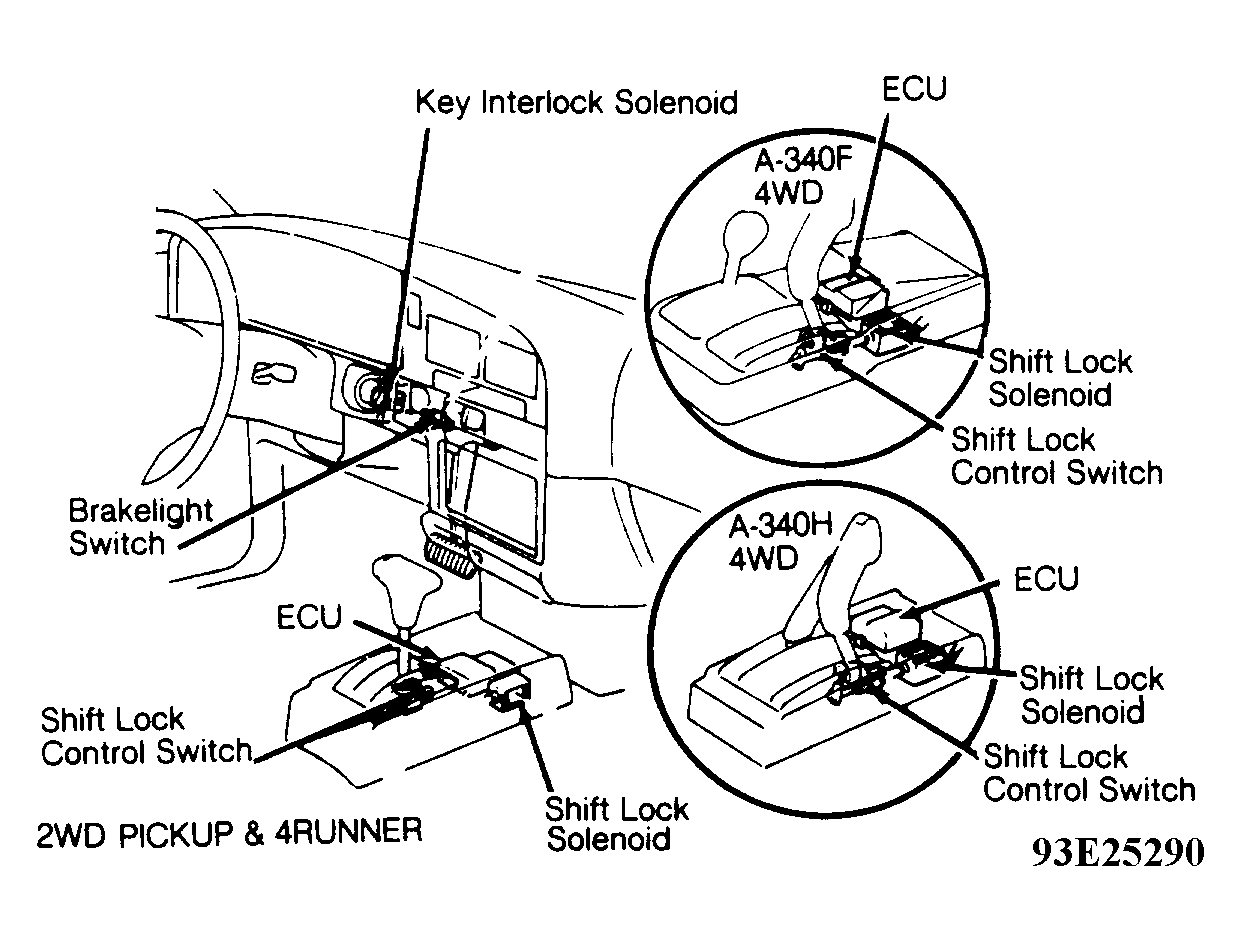

Fig 9: Shift & Key Lock System Component Locations (9 of 9)

G93E25290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
