Shift Lock Control Switch
NOTE:
Land Cruiser testing not available at time of publication.

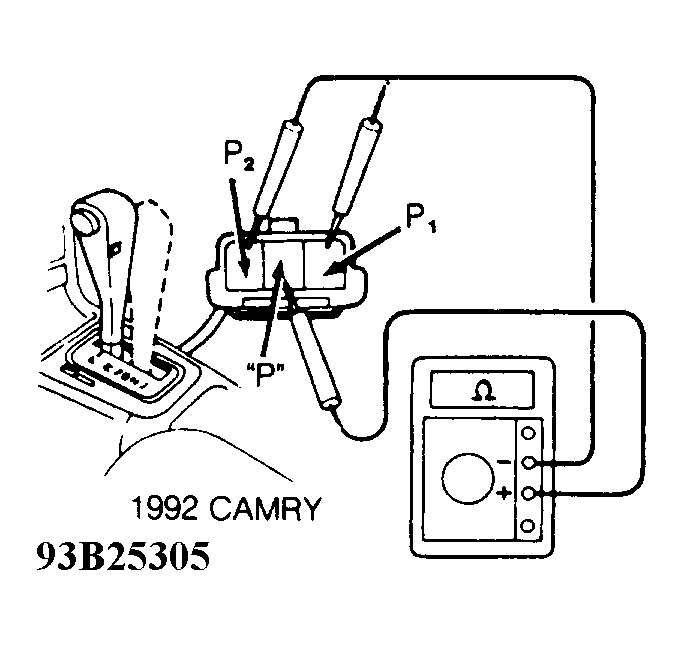

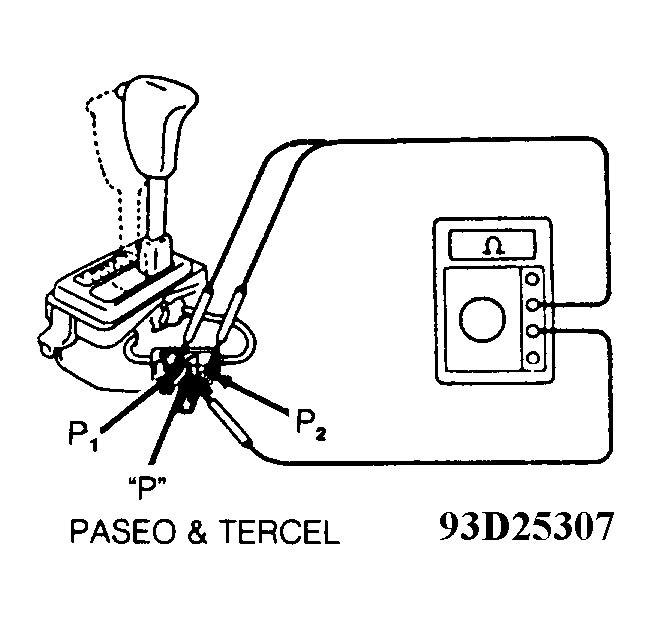

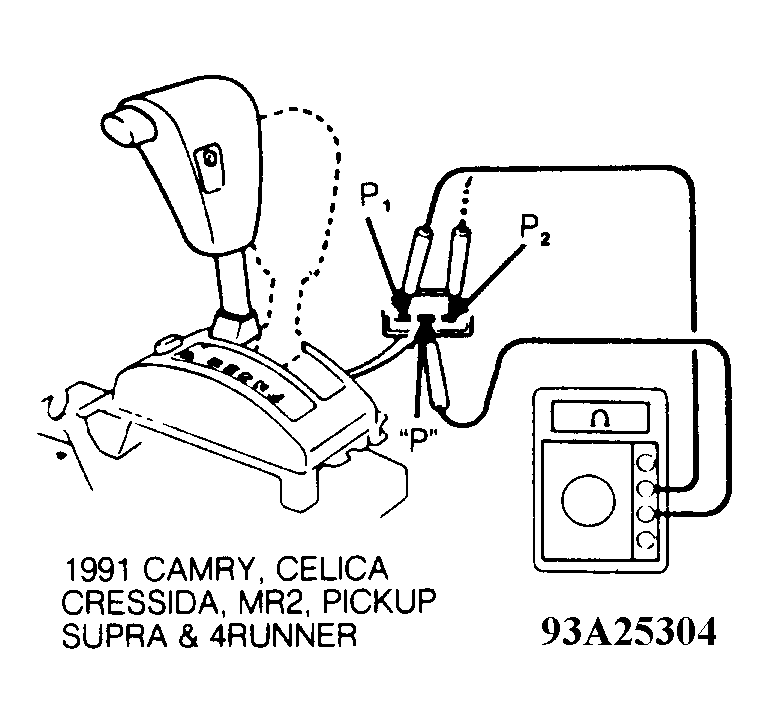

- Disconnect electrical connector from shift lock control switch. See Figure. Note electrical connector terminal identification. See Fig 1.
- Using ohmmeter, check continuity of terminals in relation to shift lever. See SHIFT LOCK CONTROL SWITCH CONTINUITY table. Replace switch if continuity is not as specified.
NOTE:
Continuity must be checked in accordance with position of release button on shift lever and shift lever position.
SHIFT LOCK CONTROL SWITCH CONTINUITY
| Shift Lever Position & Condition | Terminals | ||
|---|---|---|---|
| Camry | |||
| 1991 Models | |||
| Park & Release Button Not Pushed | "P" & P1 | ||
| Any Other Gear Except Park | "P" & P2 | ||
| 1992 Models | |||
| Park & Release Button Not Pushed | "P" & P1 | ||
| Park & Release Button Pushed | "P" & P1, "P" & P2 | ||
| Any Other Gear Except Park | "P" & P2 | ||
| Celica, MR2, Paseo & Tercel | |||
| Park & Release Button Not Pushed | "P" & P1 | ||
| Park & Release Button Pushed | "P" & P1, "P" & P2 | ||
| Any Other Gear Except Park | "P" & P2 | ||
| Corolla | |||
| Park & Release Button Not Pushed | "P" & P1 | ||
| Any Other Gear Except Park | No Continuity Between "P" & P1 | ||
| Cressida, Pickup, Supra & 4Runner | |||
| Park & Release Button Not Pushed | "P" & P1 | ||
| Any Other Gear Except Park | "P" & P2 | ||
