Ignition Coil Resistance

  1. Disconnect wiring from ignition coil so ignition coil is isolated from the system. Using ohmmeter, check primary resistance between ignition coil positive (+) and negative (-) terminals. See Fig 1-20.
  2. Check secondary resistance between ignition coil positive (+) terminal and high tension wire terminal (coil wire tower). See Fig 6-25. Replace ignition coil if resistance is not within specification. See IGNITION COIL RESISTANCE  table.
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application Primary Secondary
Camry .40-.50 10,200-14,300
Celica
1.6L (4A-FE) 1.1-1.7 9000-15,000
2.0L Turbo .30-.60 9000-15,000
2.2L (5S-FE) .30-.60 9000-15,000
Corolla 1.1-1.7 9000-15,000
MR2 .30-.60 9000-15,000
Paseo .40-.50 10,000-14,000
Pickup .46-.69 10,100-16,700
Previa & Tercel .30-.60 9000-15,000
4Runner .52-.64 11,400-15,600

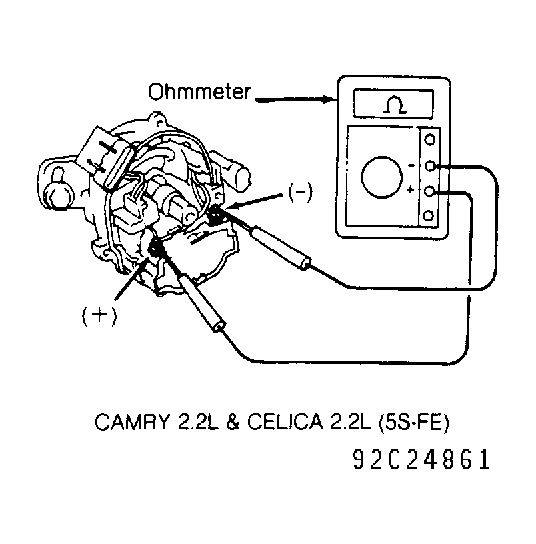

Fig 1: Checking Ignition Coil Primary Resistance (Camry 2.2L, Celica 2.2L 5S-FE)
G92C24861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

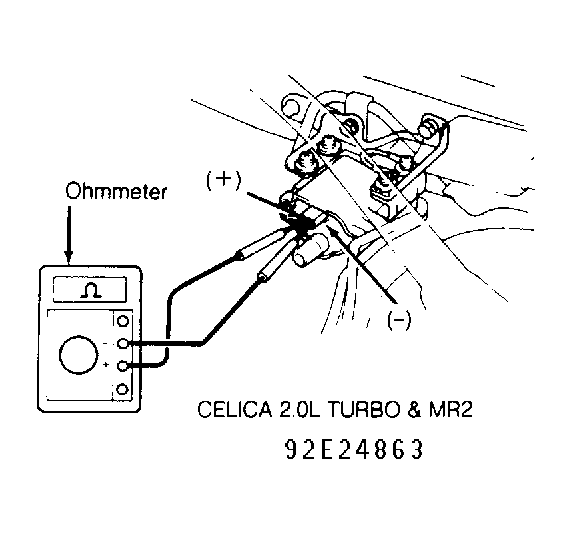

Fig 2: Checking Ignition Coil Primary Resistance (Celica 2.0L Turbo & MR2)
G92E24863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

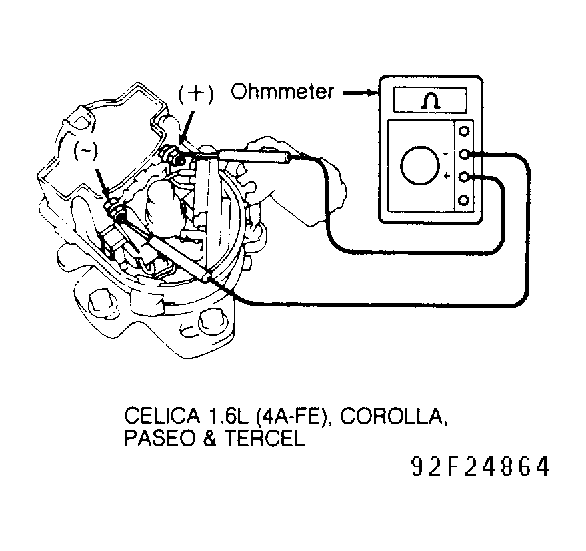

Fig 3: Checking Ignition Coil Primary Resistance (Celica 1.6L 4A-FE, Corolla, Paseo & Tercel)
G92F24864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

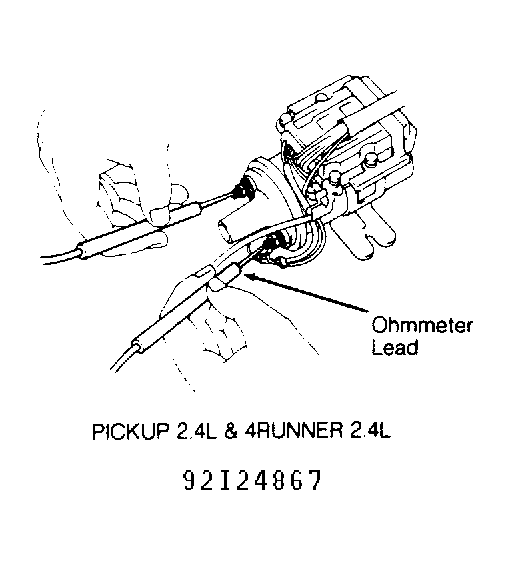

Fig 4: Checking Ignition Coil Primary Resistance (P/U 2.4L & 4Runner 2.4L)
G92I24867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

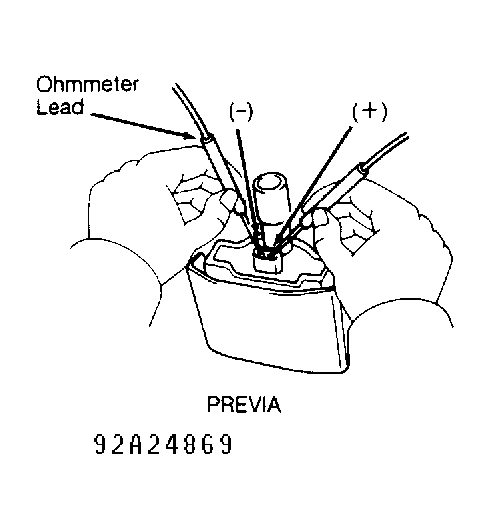

Fig 5: Checking Ignition Coil Primary Resistance (Previa)
G92A24869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

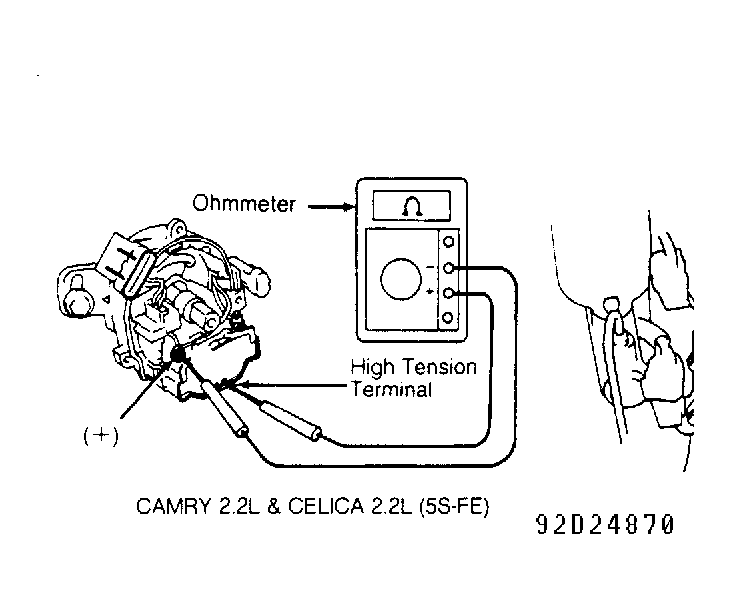

Fig 6: Checking Ignition Coil Secondary Resistance (Camry 2.2L & Celica 2.2L - 5S-FE)
G92D24870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

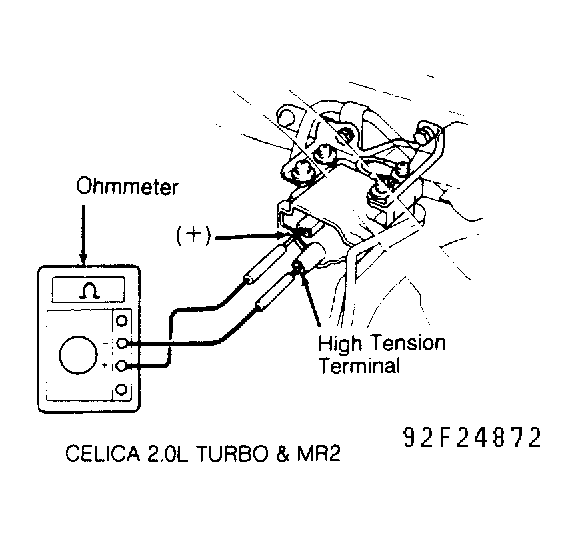

Fig 7: Checking Ignition Coil Secondary Resistance (Celica 2.0L Turbo & MR2)
G92F24872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

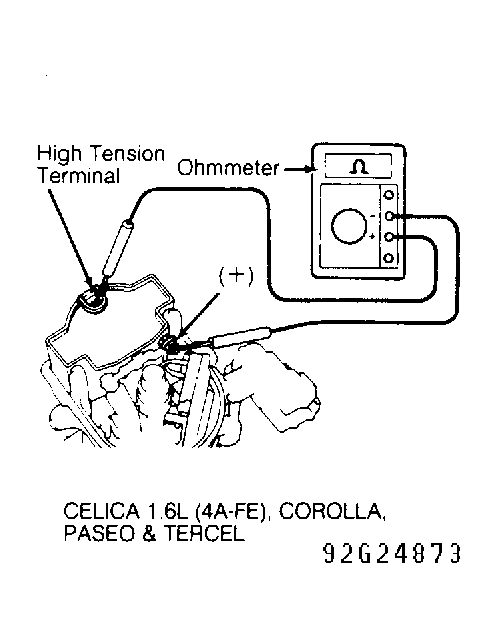

Fig 8: Checking Ignition Coil Secondary Resistance (Celica 1.6L - 4A-FE, Corolla, Paseo & Tercel)
G92G24873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

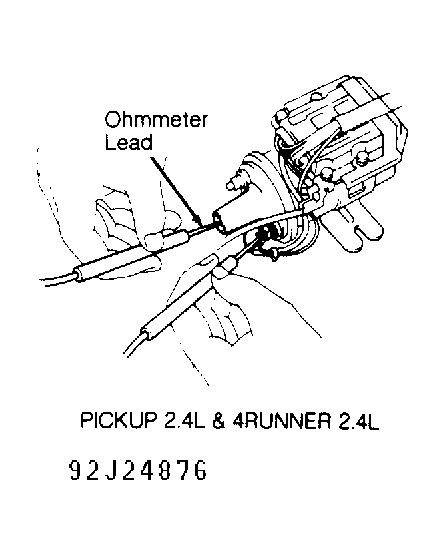

Fig 9: Checking Ignition Coil Secondary Resistance (P/U 2.4L & 4Runner 2.4L)
G92J24876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

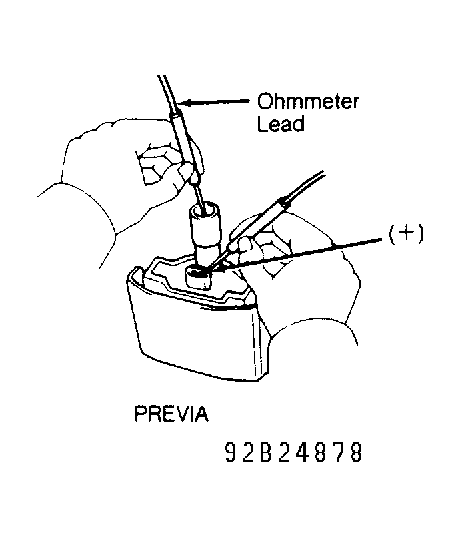

Fig 10: Checking Ignition Coil Secondary Resistance (Previa)
G92B24878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
