Code 71/Test No. 11 - EGR System Malfunction

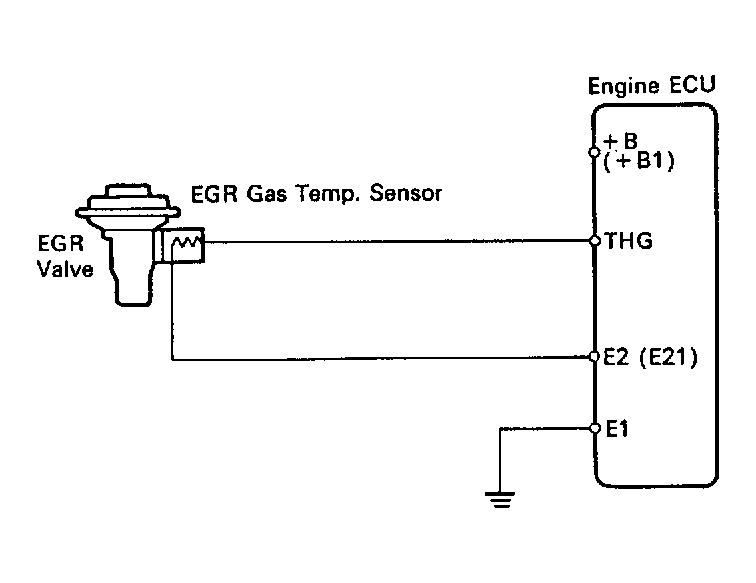

Fig 1: Code 71/Test No. 11 Schematic EGR System Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

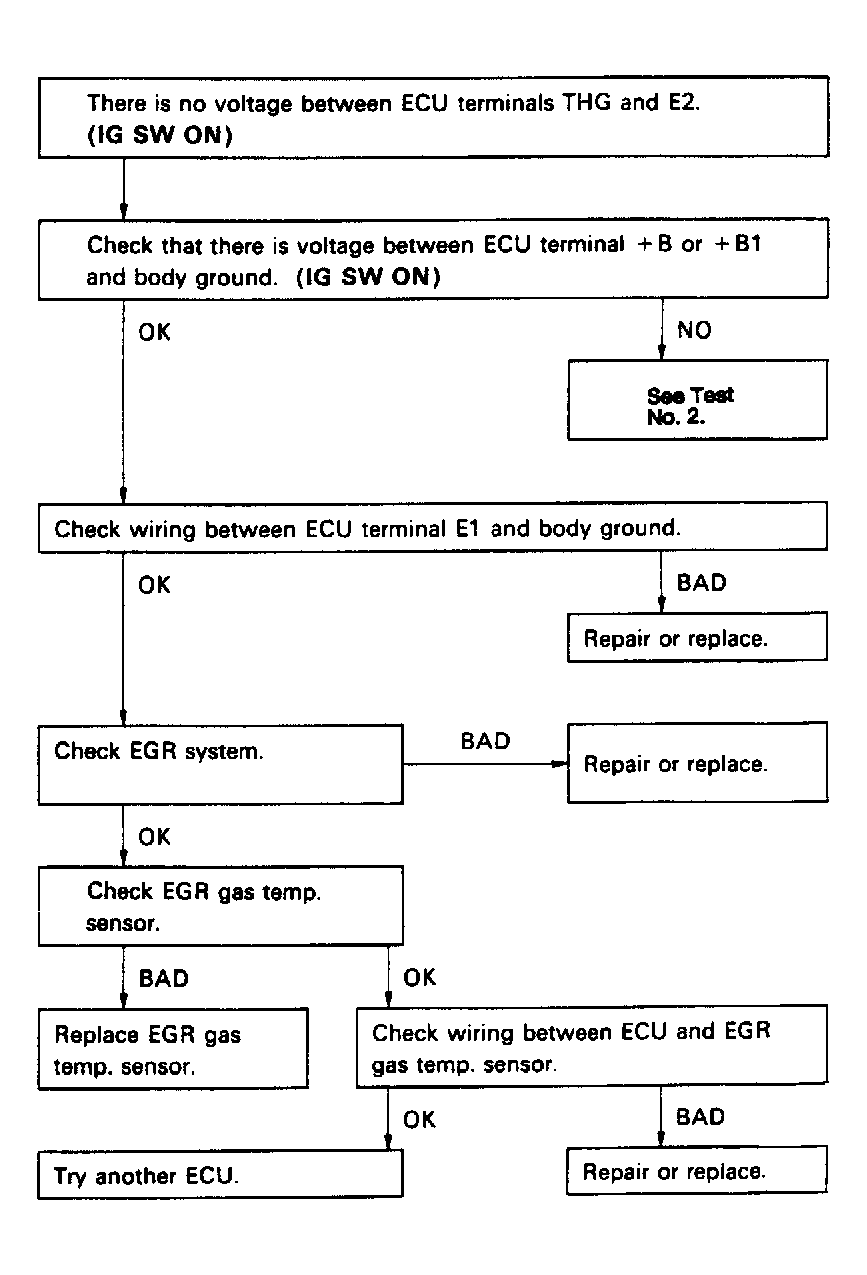

Fig 2: Code 71/Test No. 11 Flow Chart EGR System Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
