Test No. 13 - Check Engine Circuit

TEST NO. 13-CHECK ENGINE LIGHT CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
W-E1	No Voltage	No Trouble (Check Engine Light OFF) and Engine Running	10-14V

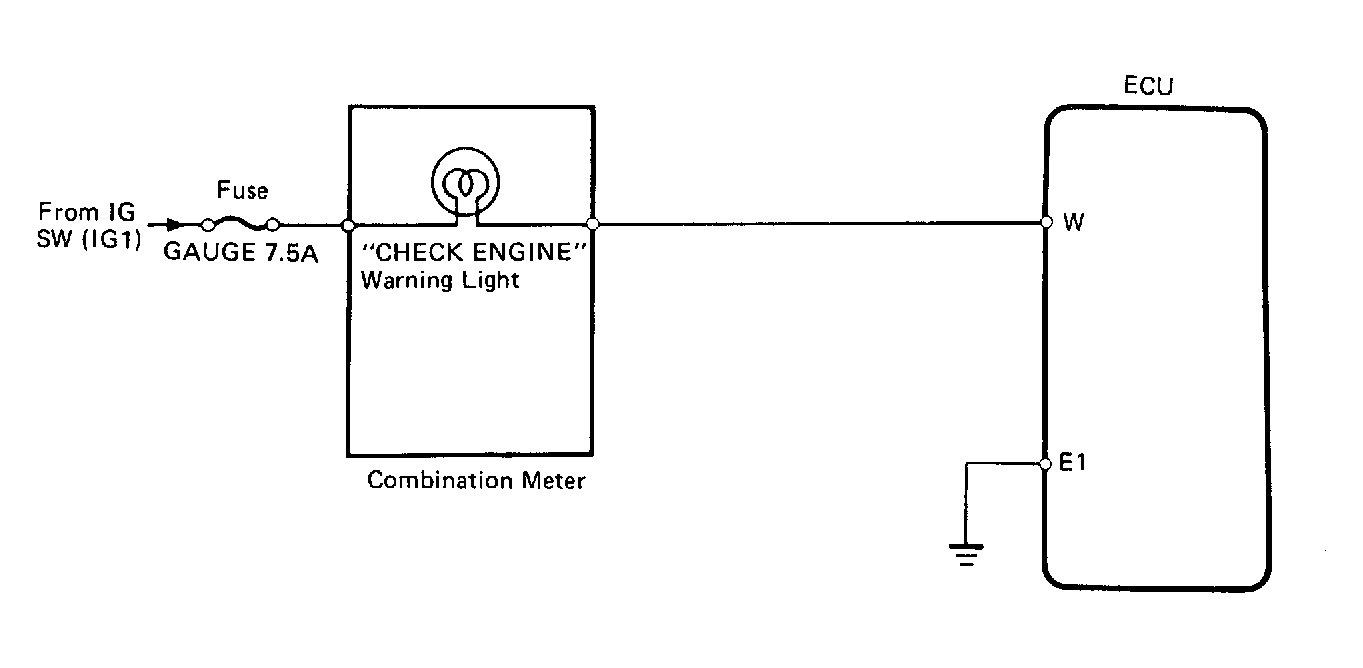

Fig 1: Test No. 13 Schematic Check Engine Circuit

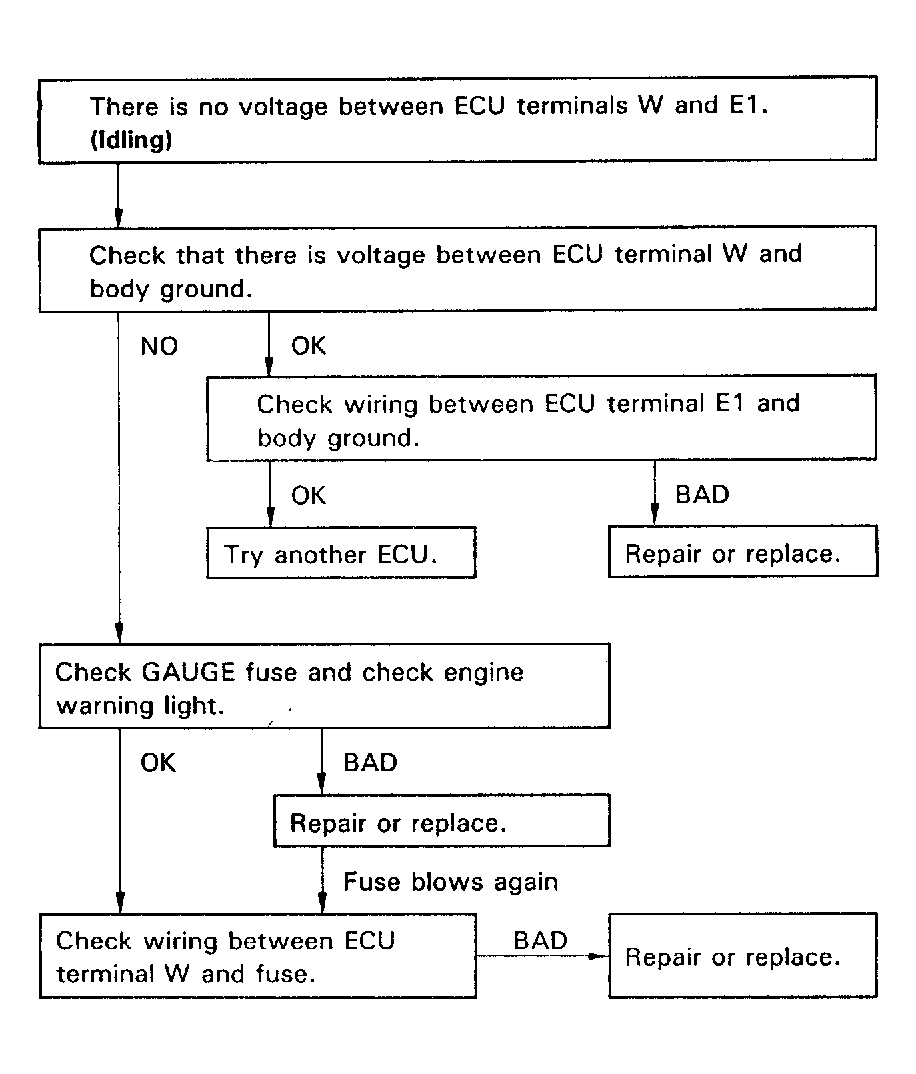

Fig 2: Test No. 13 Flow Chart Check Engine Circuit
