Fuel Pump Relay

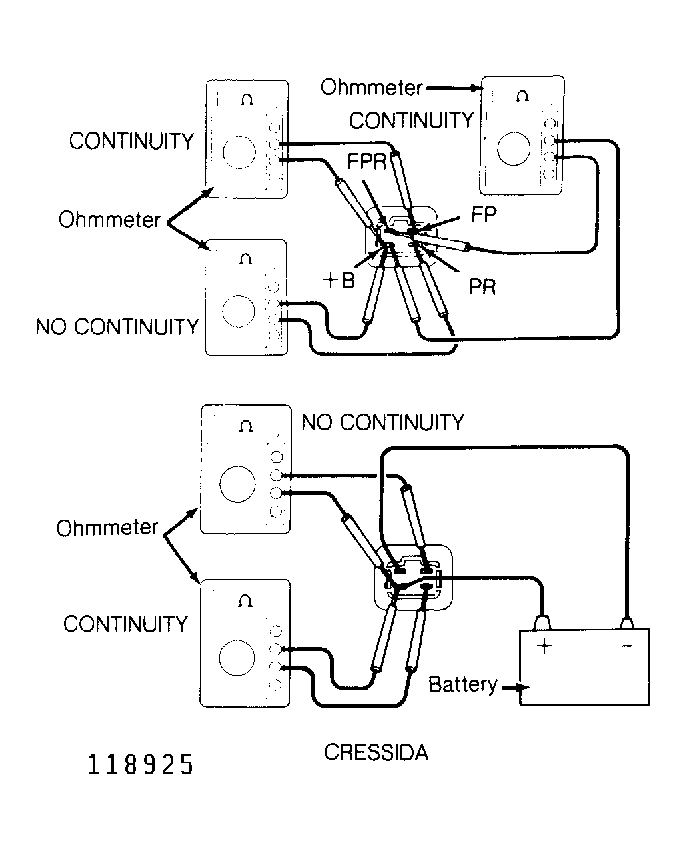

- Ensure ignition is off. Remove fuel pump relay. See FUEL PUMP RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 2.
- Check fuel pump relay operation by applying battery voltage and checking continuity between specified terminals. See Fig 2. Replace fuel pump relay if defective.
NOTE:
Fuel pump relay may also be identified by appropriate illustration in THEORY/OPERATION
article in the ENGINE PERFORMANCE Section or wire color. See appropriate wiring diagram in WIRING DIAGRAMS
article in the ENGINE PERFORMANCE Section.
FUEL PUMP RELAY LOCATION
| Application | Location |
|---|---|
| Cressida | Above Glove Box, Near ECU |
