Code 41/Test No. 7 - Throttle Position Sensor Signal

CODE 41/TEST NO. 7-TPS SENSOR SIGNAL TROUBLE

Terminals Trouble Condition STD Voltage
IDL - E2 No Voltage IG SW ON-Throttle valve OPEN 4 - 6V
VC - E2 " IG SW ON- 4 - 6V
VTA - E2 " IG SW ON-Throttle valve SHUT 0.1 - 1.0V
" " IG SW ON-Throttle valve OPEN 3.2 - 4.2V

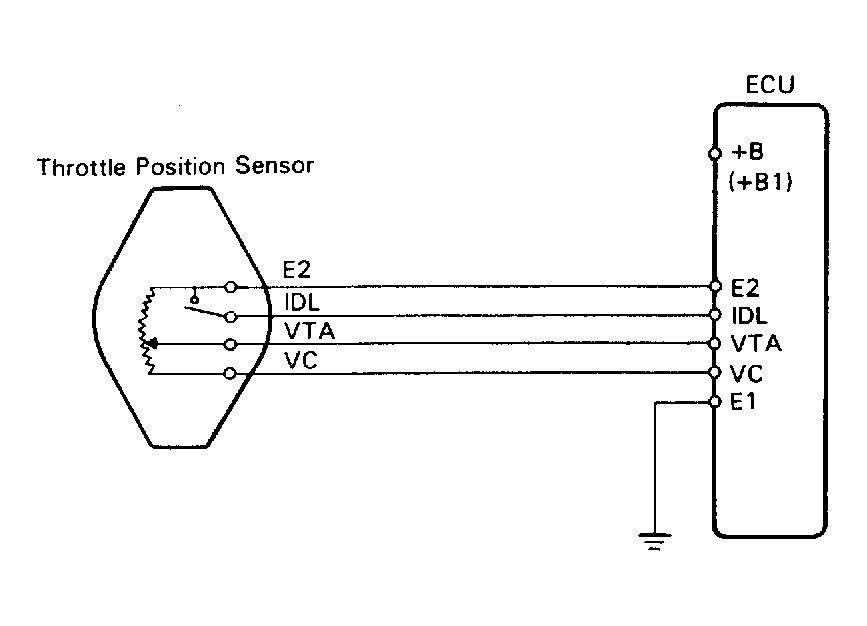

Fig 1: Code 41/Test No. 7 Schematic Throttle Position Sensor Signal
G91H17688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

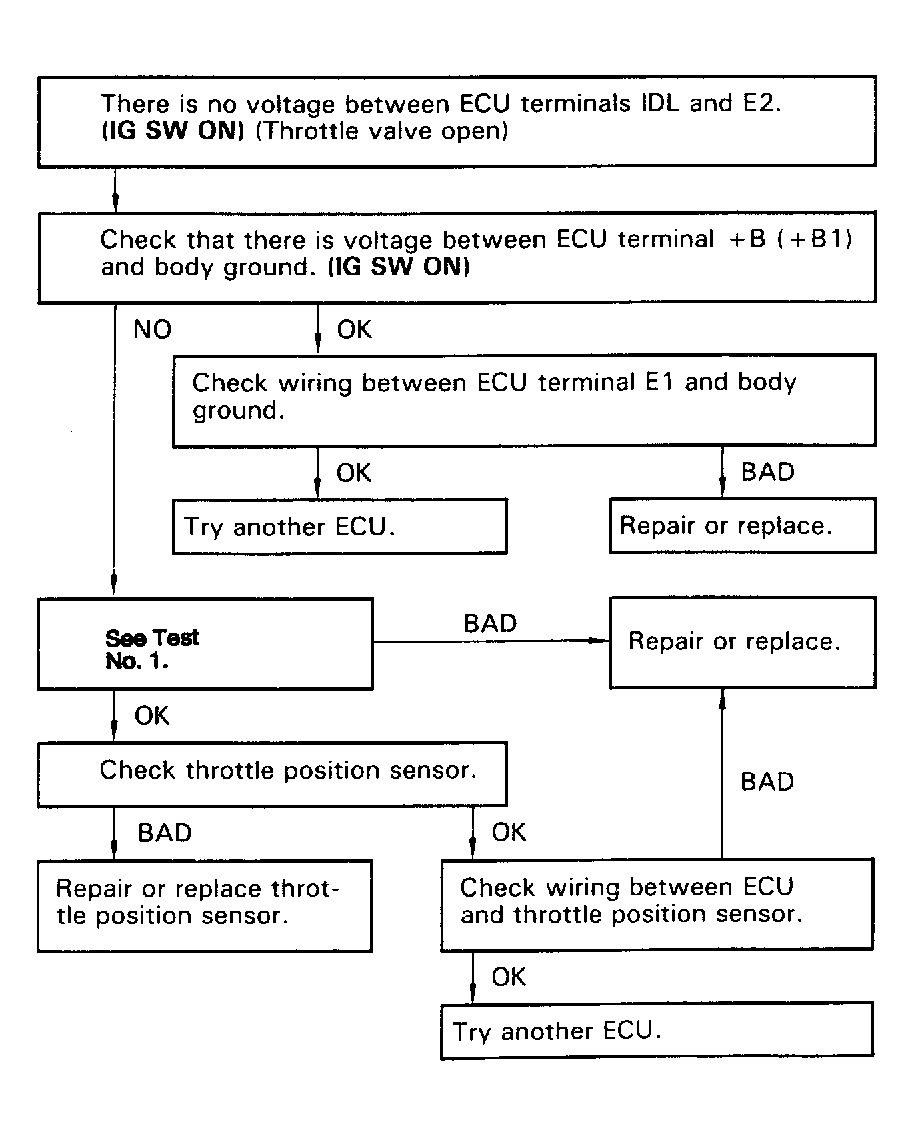

Fig 2: Code 41/Test No. 7 Flow Chart, Terminals IDL - E2 Throttle Position Sensor Signal
G91I17804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

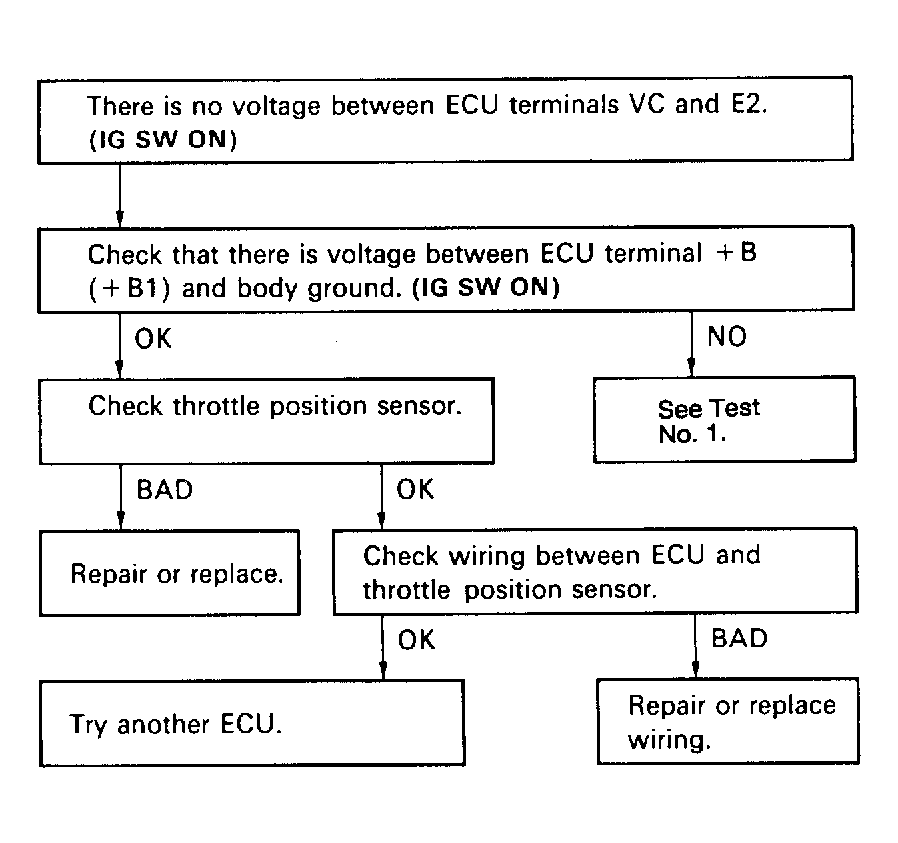

Fig 3: Code 41/Test No. 7 Flow Chart, Terminals VC - E2 Throttle Position Sensor Signal
G91J17805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

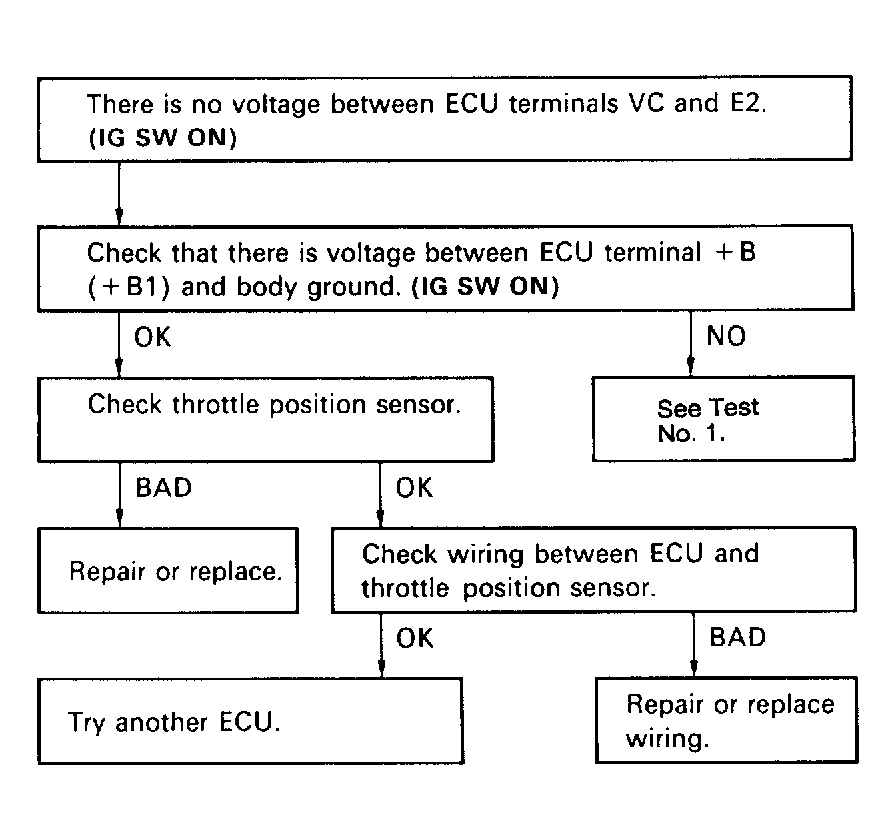

Fig 4: Code 41/Test No. 7 Flow Chart, Terminals VTA - E2 Throttle Position Sensor Signal
G91A17806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
