Test No. 11 - Injector Circuit

TEST NO. 11-INJECTOR CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
No. 10, 20 & 30 To E01 & E02	No Voltage	Ignition Switch ON	10-14V

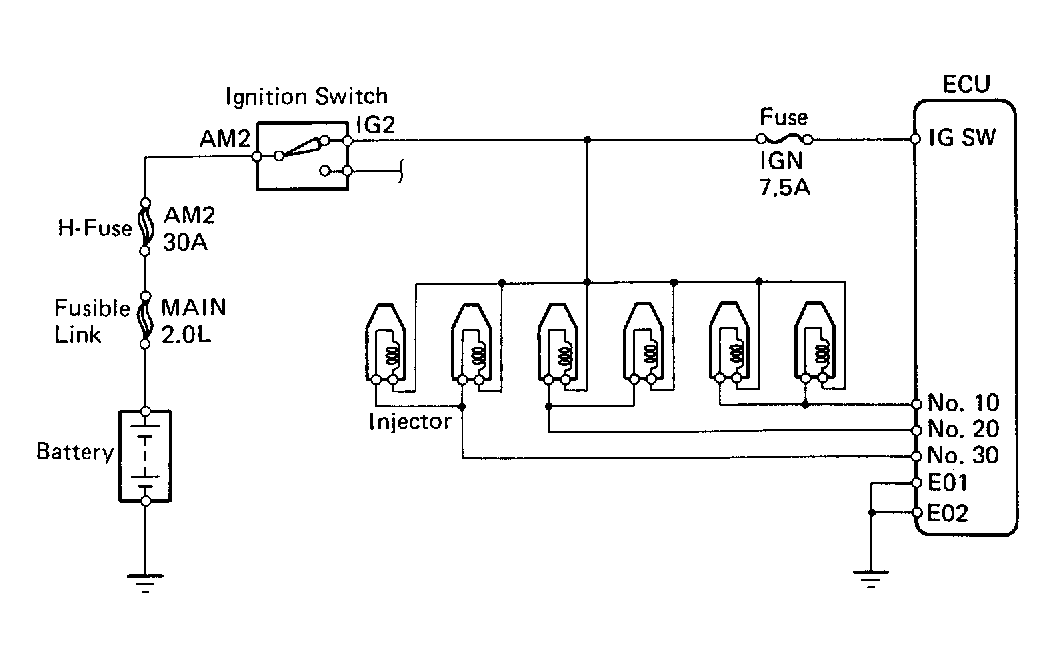

Fig 1: Test No. 11 Schematic Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

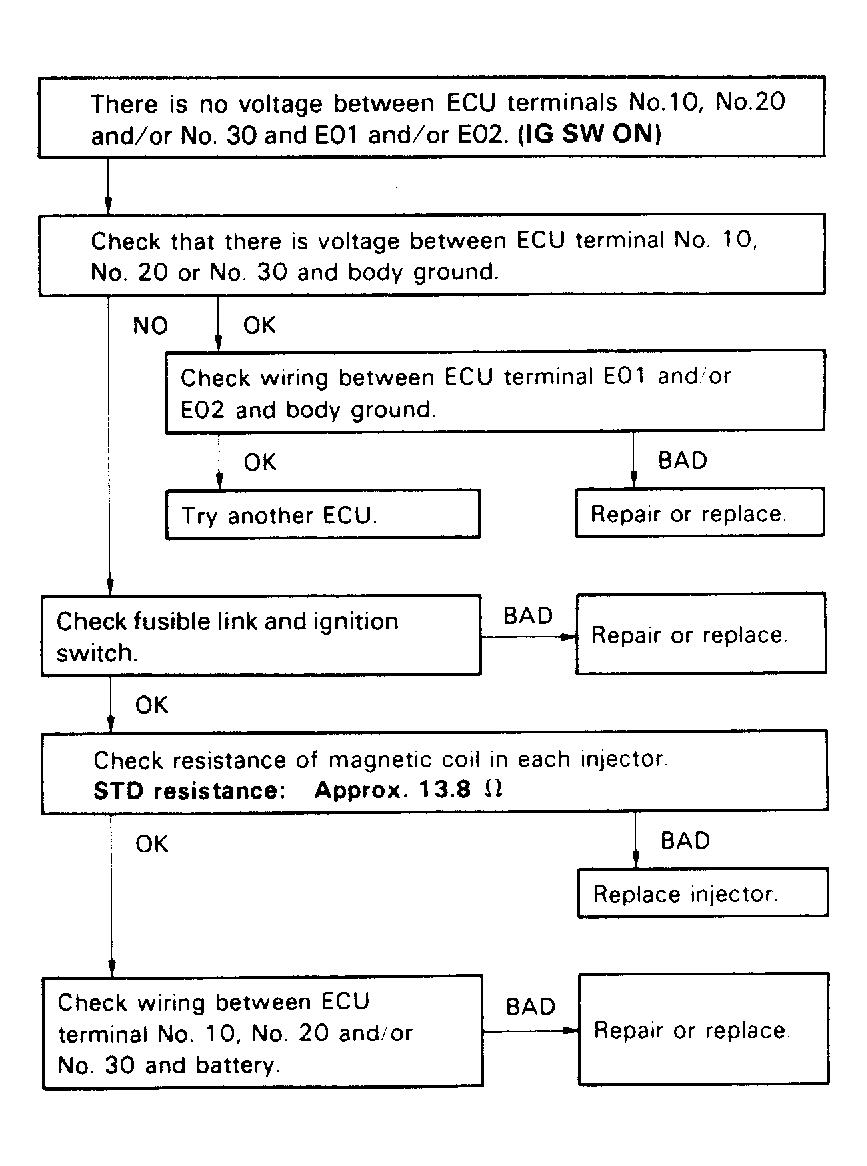

Fig 2: Test No. 11 Flow Chart Injector Circuit
