Circuit Opening Relay

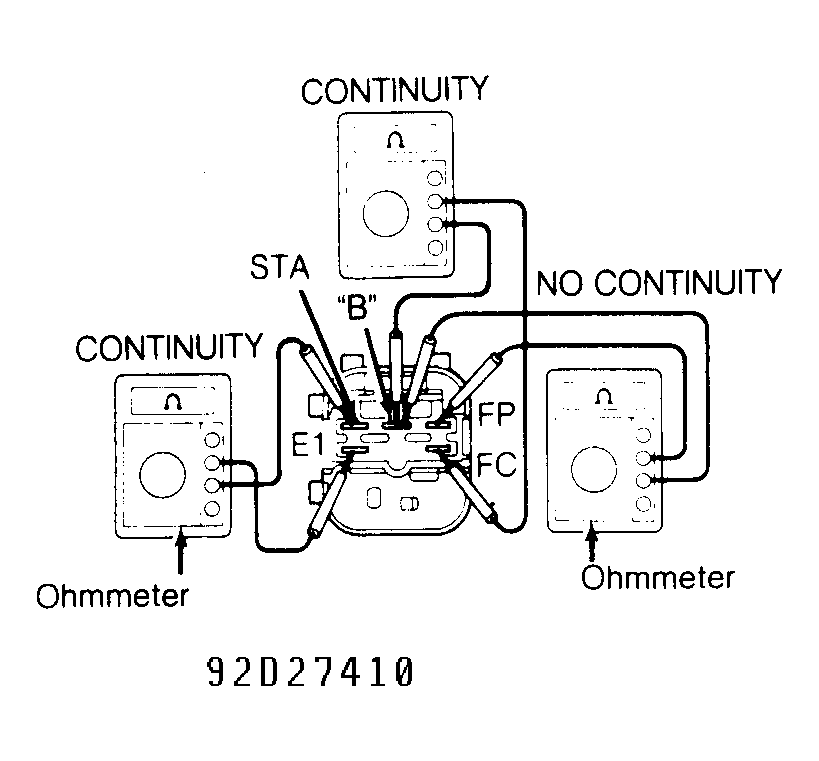

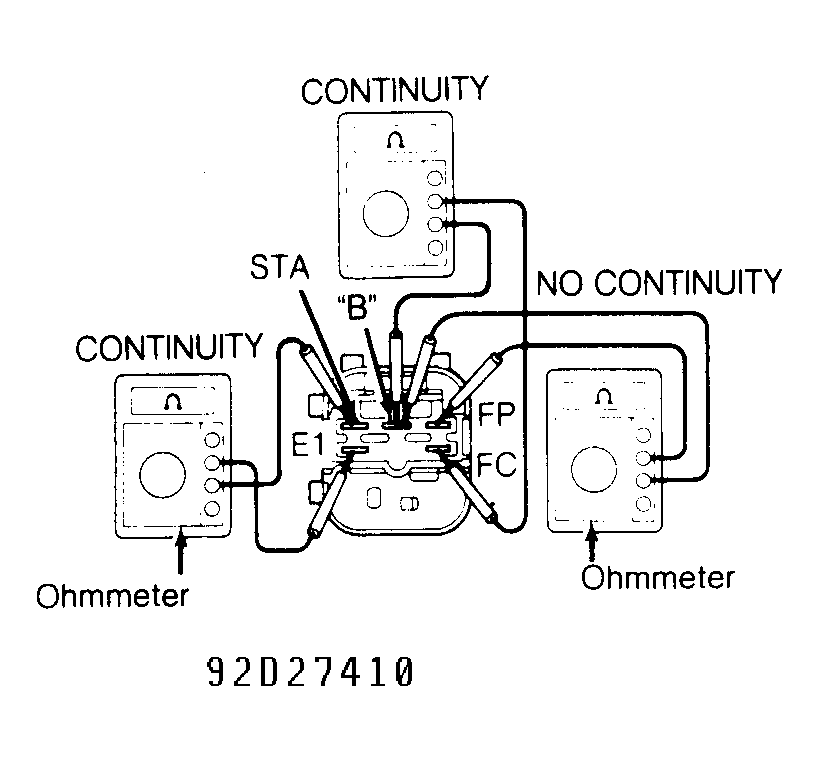

- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 1-Fig 3 .

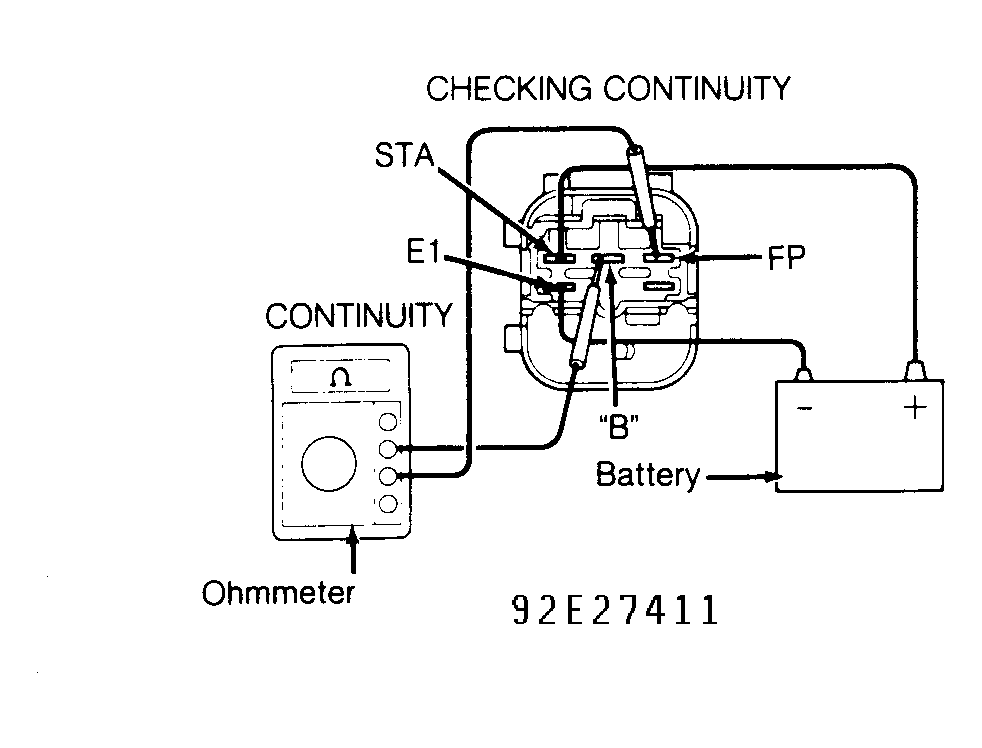

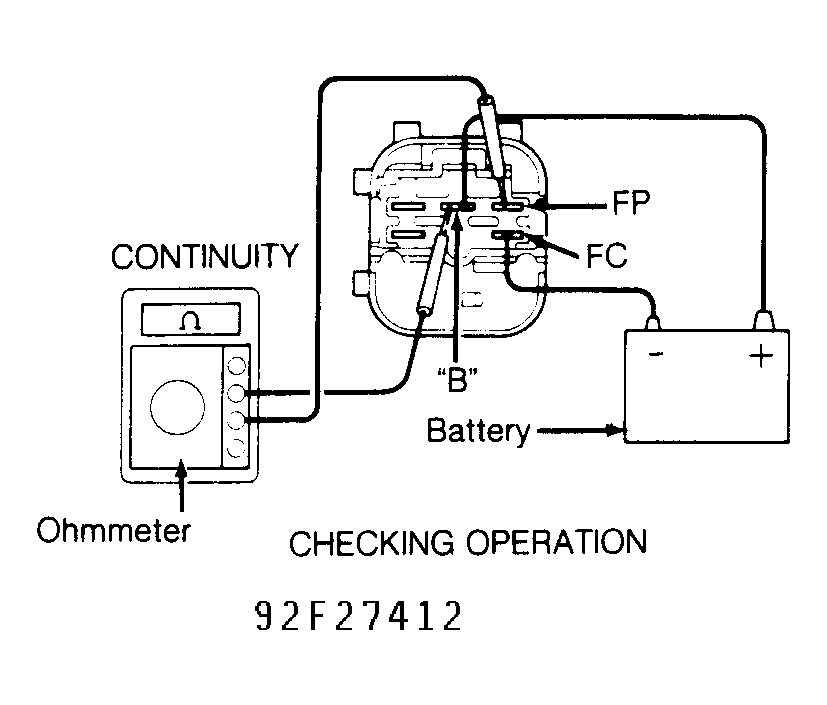

- Check circuit opening relay operation by applying battery voltage and checking continuity between specified terminals. See Fig 1-Fig 3 . Replace circuit opening relay if defective.
NOTE:
Circuit opening relay may also be identified by appropriate illustration in THEORY/OPERATION
article in the ENGINE PERFORMANCE Section or wire color. See appropriate wiring diagram in WIRING DIAGRAMS
article in the ENGINE PERFORMANCE Section.
CIRCUIT OPENING RELAY LOCATION
| Application | Location |
|---|---|
| Land Cruiser | Behind Center Of Dash |
