Exhaust Gas RECIRCULATION: Notes
NOTE:

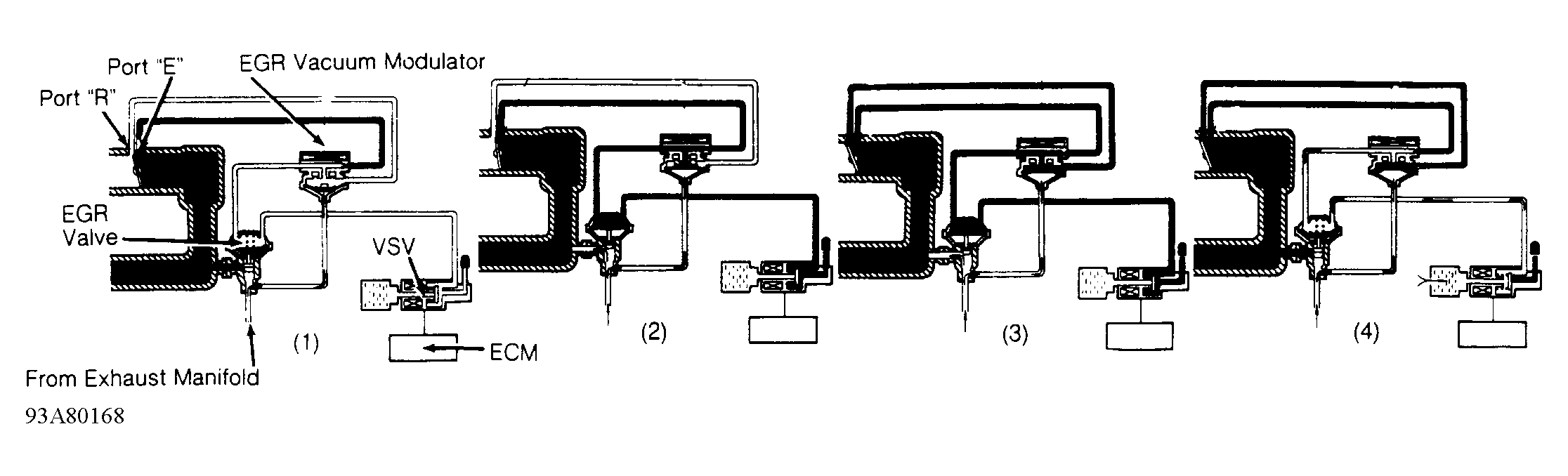

Exhaust Gas Recirculation (EGR) systems contain different components and have different operating parameters depending on application. See Figure. When testing EGR system and components, use proper illustration to determine component location.
