Code 21 - Oxygen Sensor Signal

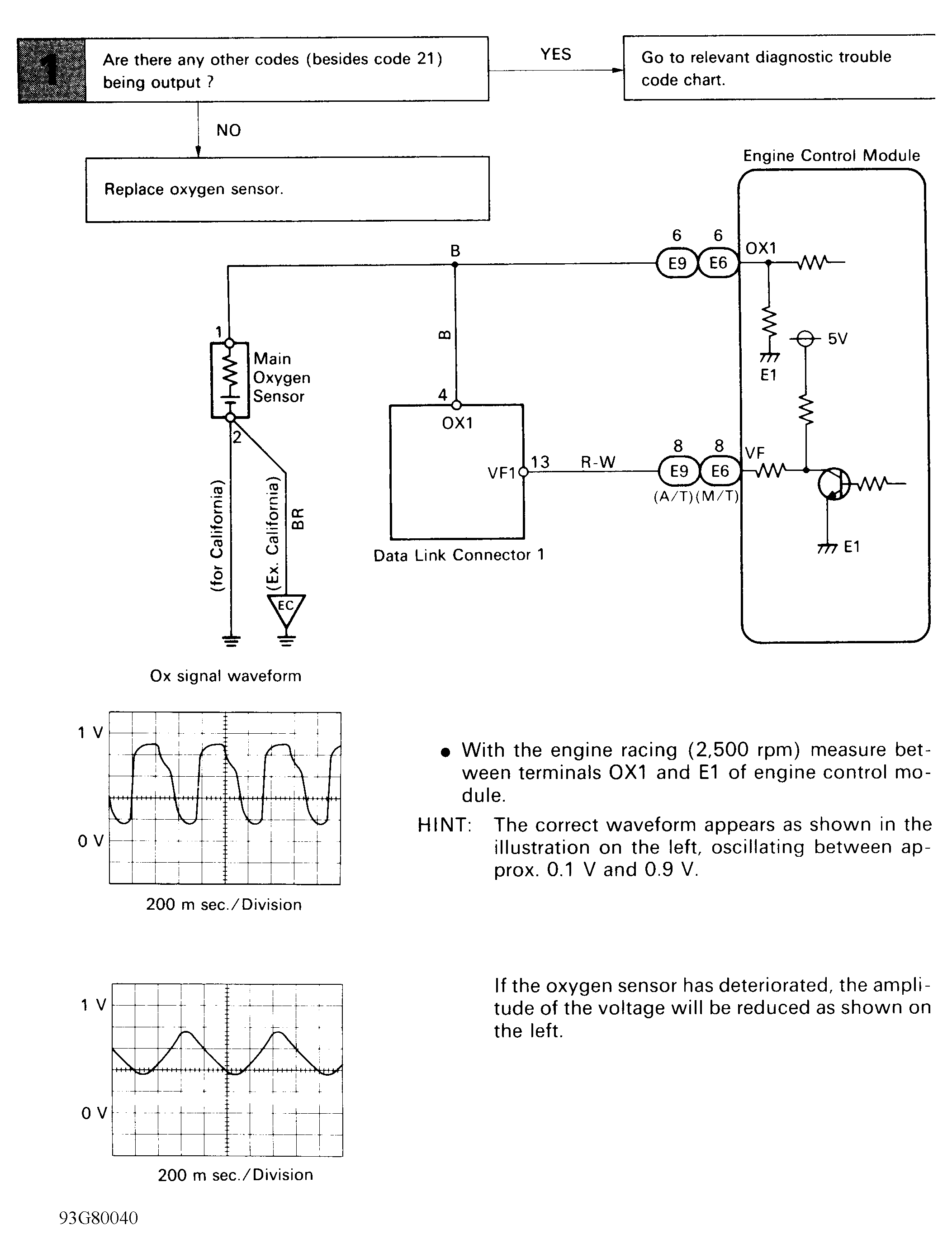

Fig 1: Code 21 Flow Chart - OXYGEN Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
