Code 31 - Map Sensor Signal

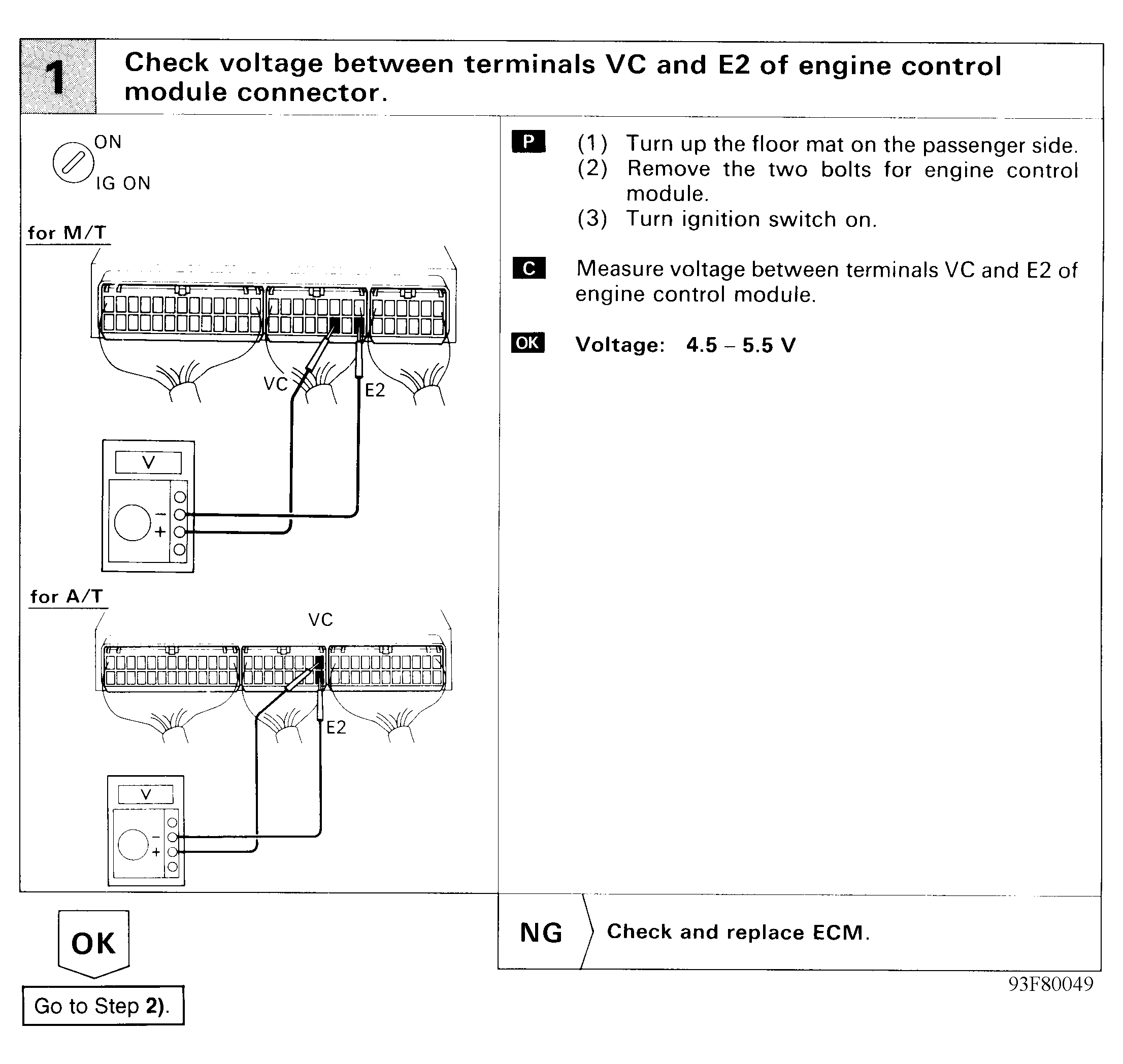

Fig 1: Code 31 Flow Chart - MAP Sensor Signal (1 Of 2)
G93F80049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

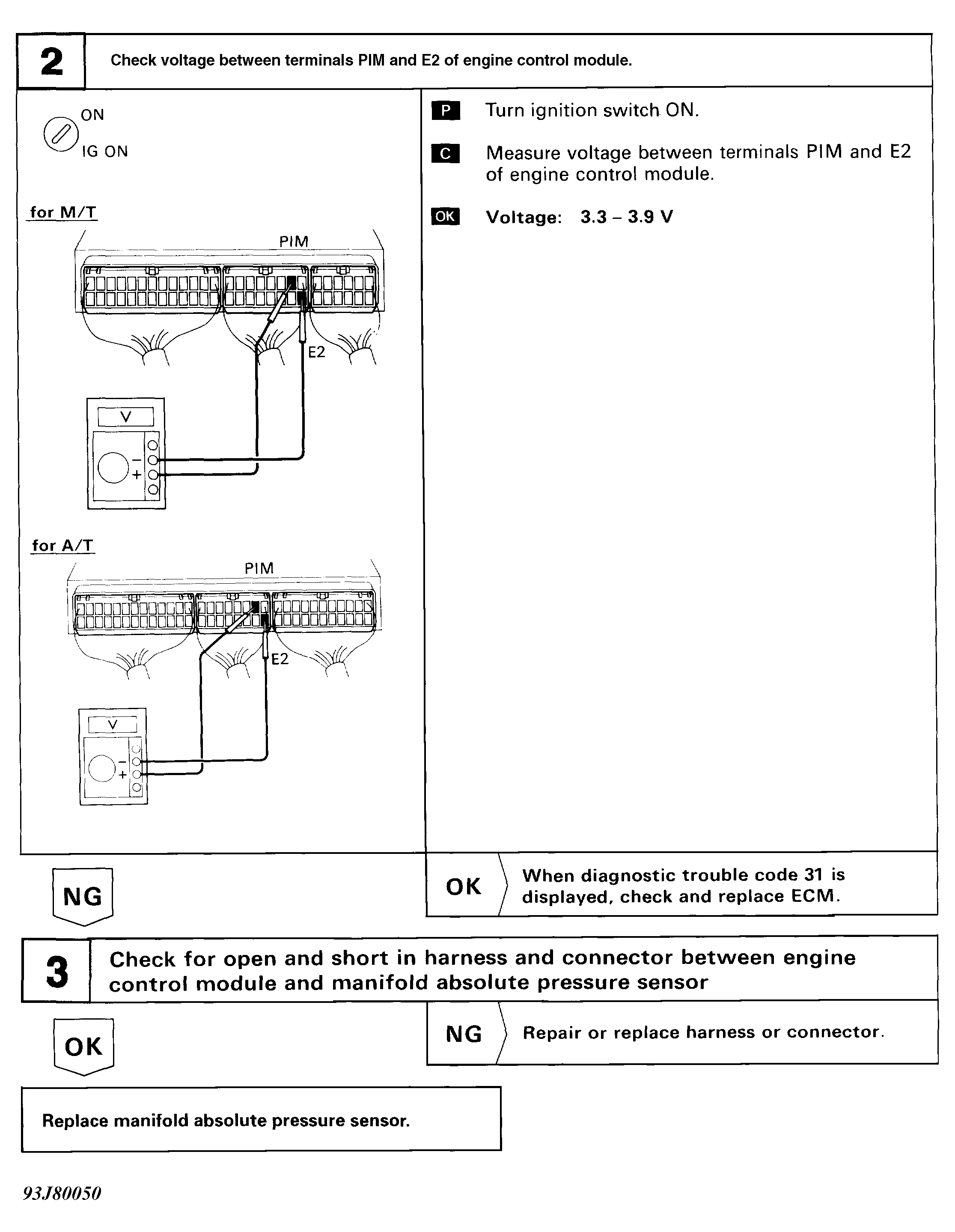

Fig 2: Code 31 Flow Chart - MAP Sensor Signal (2 Of 2)
G93J80050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
