Code 51 - Switch Condition Signal

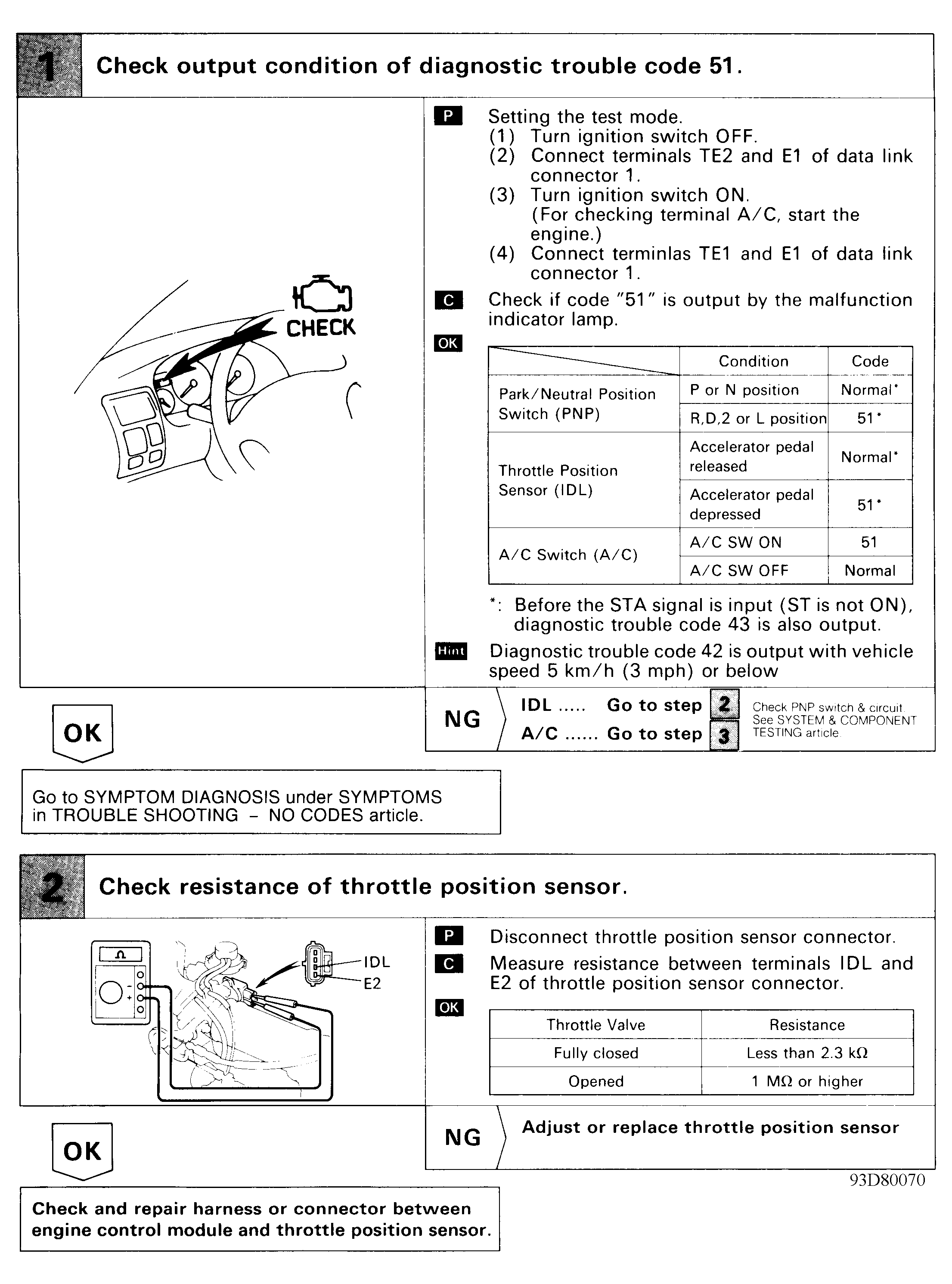

Fig 1: Code 51 Flow Chart - Switch Signal (1 Of 2)
G93D80070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

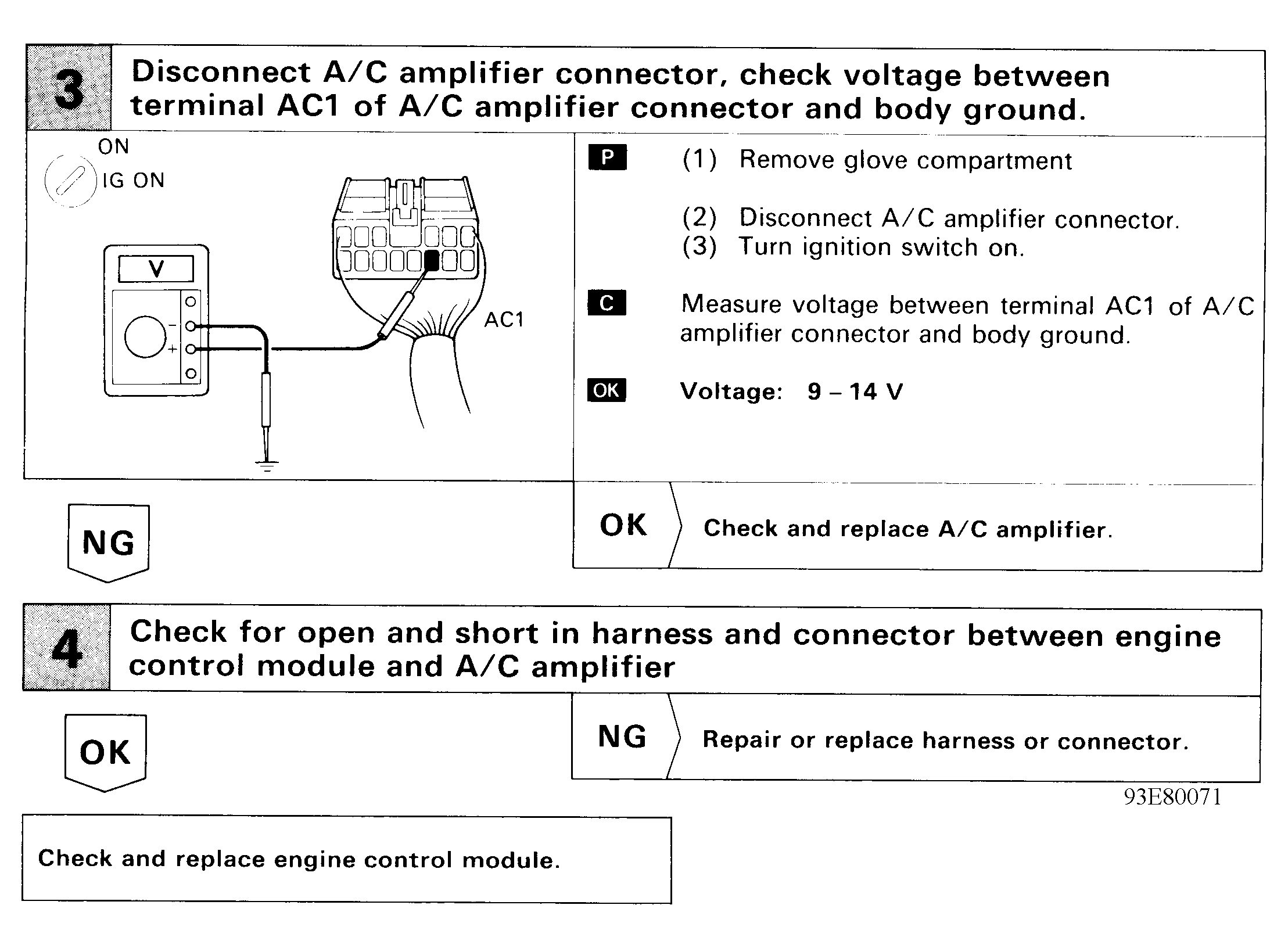

Fig 2: Code 51 Flow Chart - Switch Signal (2 Of 2)
G93E80071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
