Code 71 - EGR System Malfunction

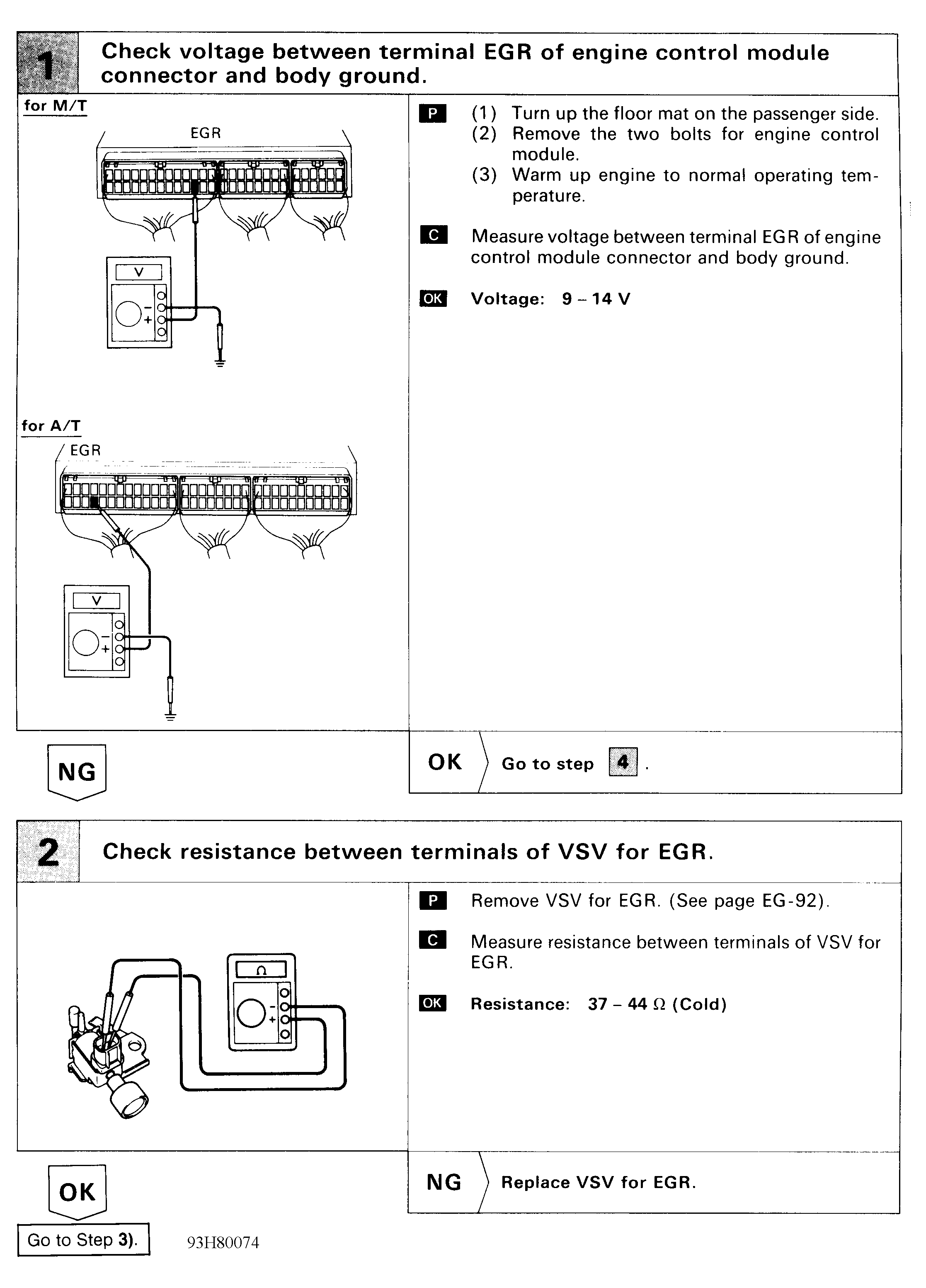

Fig 1: Code 71 Flow Chart - EGR System Malfunction (1 Of 2)
G93H80074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

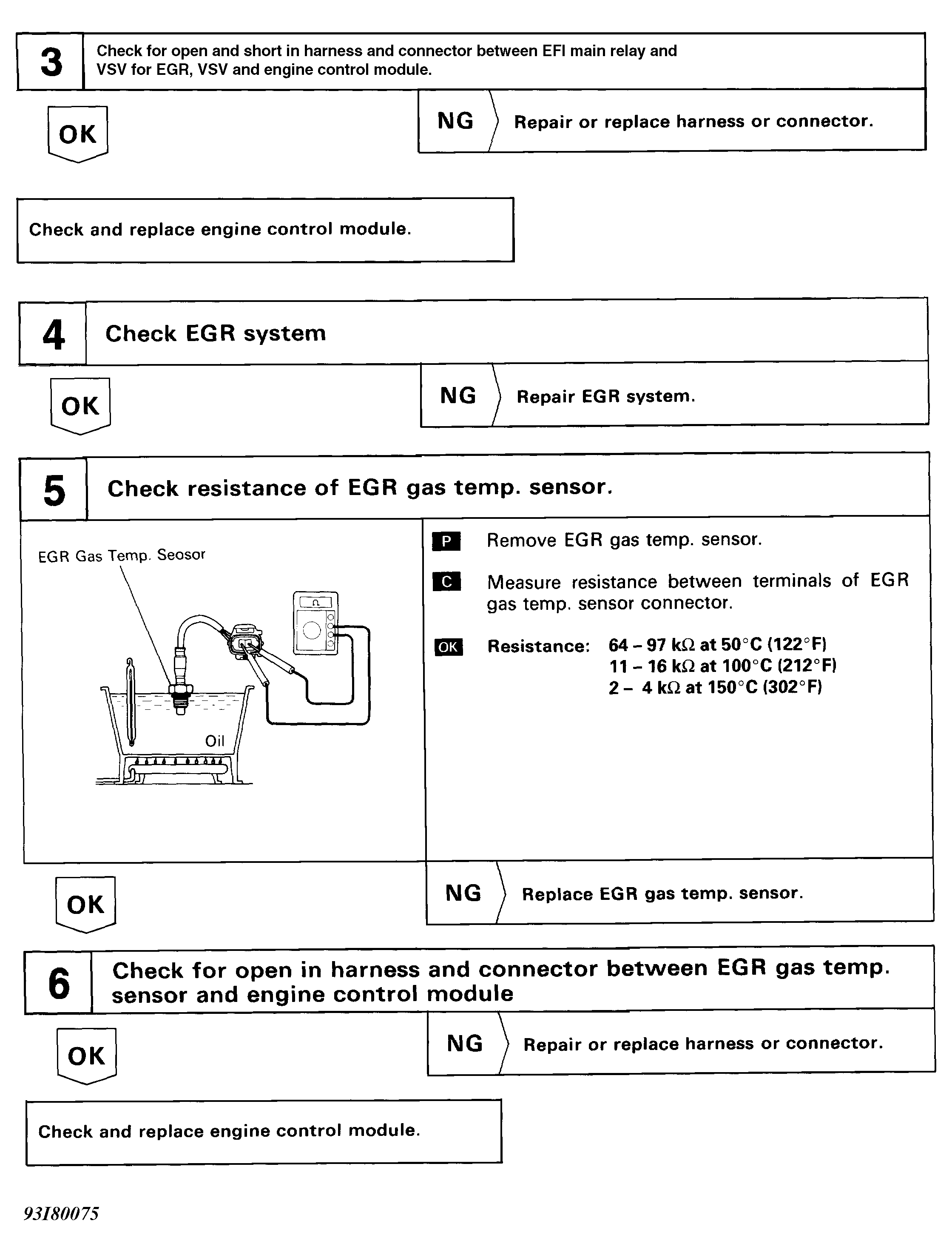

Fig 2: Code 71 Flow Chart - EGR System Malfunction (2 Of 2)
G93I80075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
