Code 14 - Ignition Signal

NOTE: To check ignition components, see SYSTEM/COMPONENT TESTS article in this section.

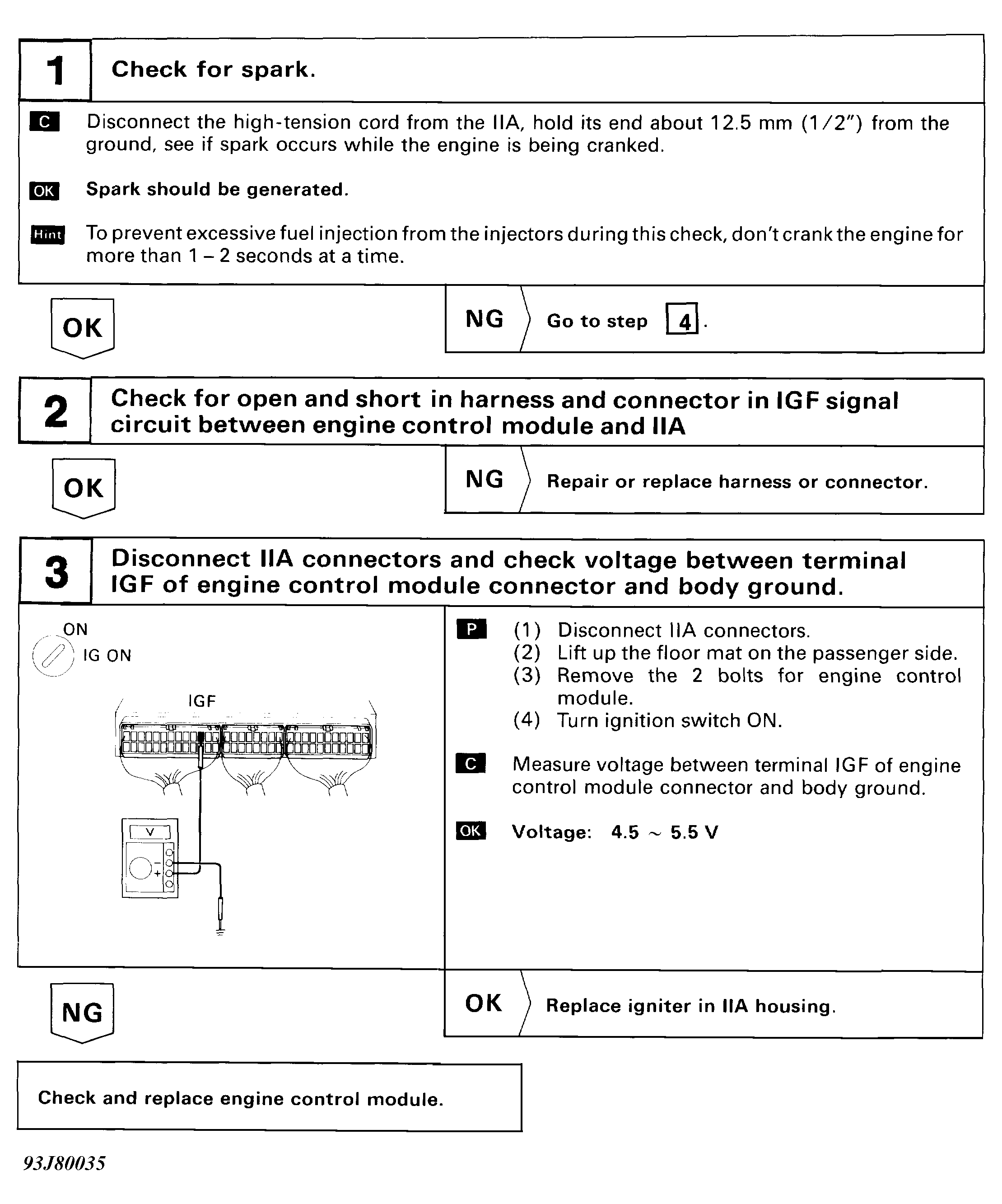

Fig 1: Code 14 Flow Chart - Ignition Signal (1 Of 4)
G93J80035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

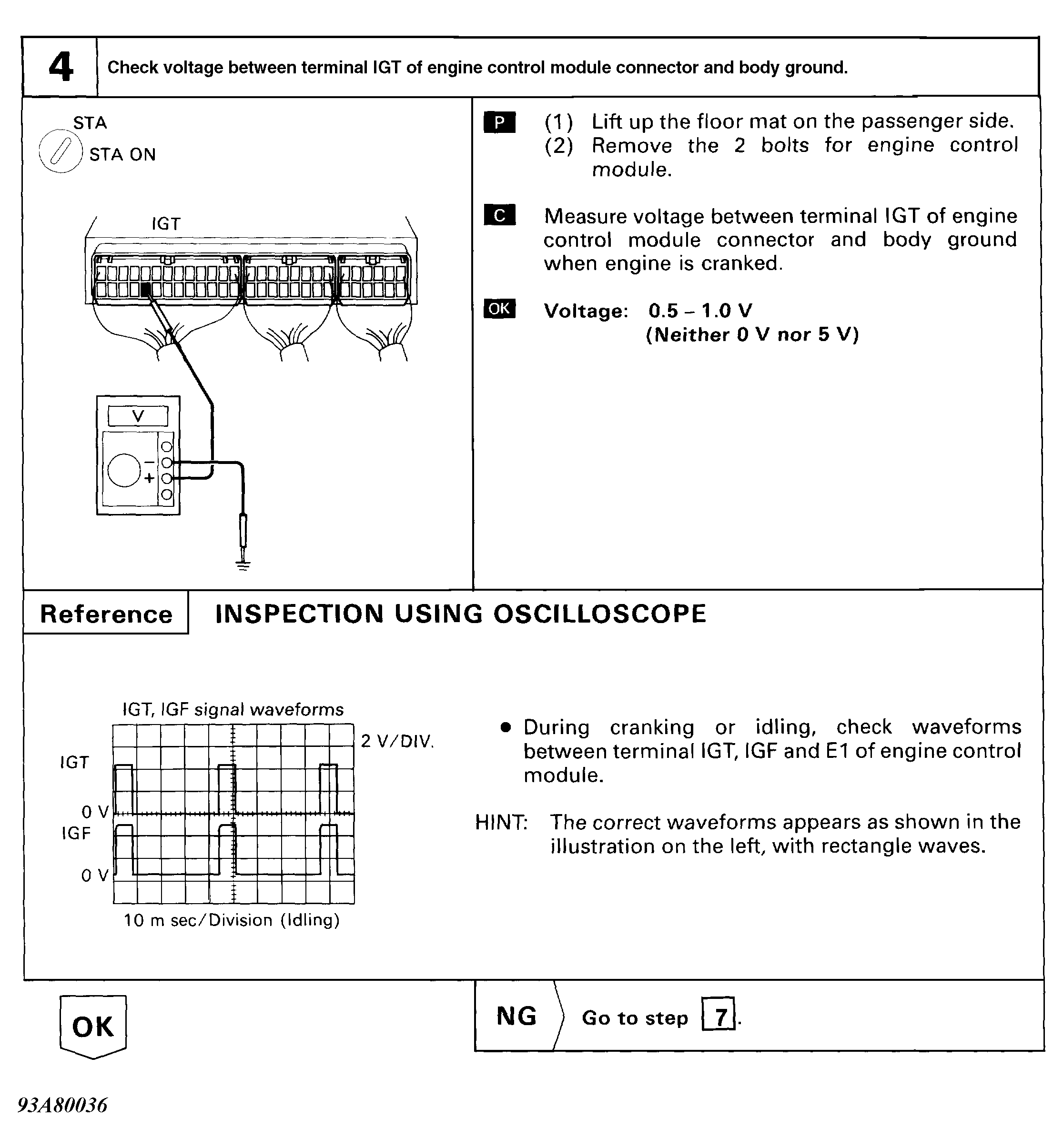

Fig 2: Code 14 Flow Chart - Ignition Signal (2 Of 4)
G93A80036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

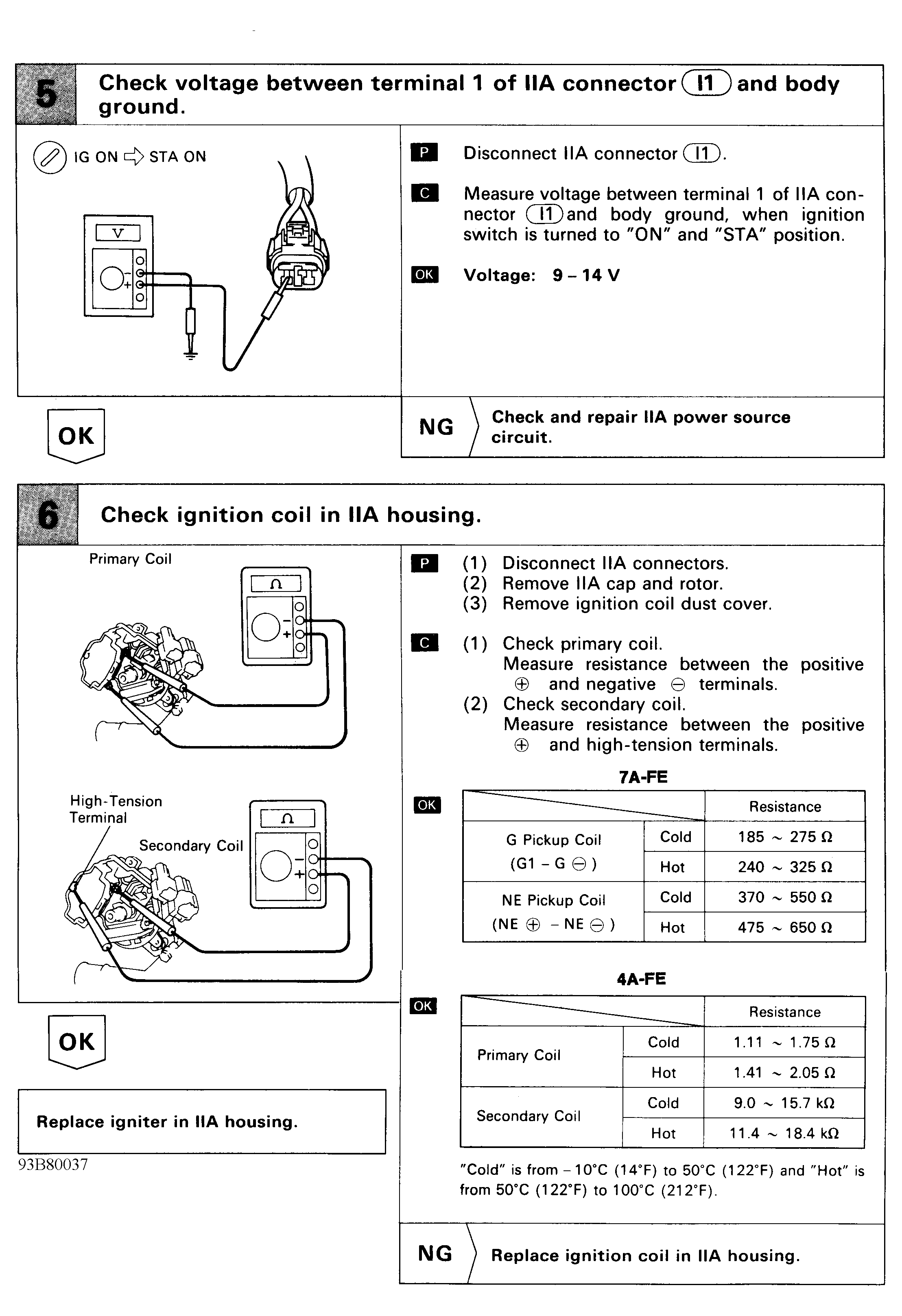

Fig 3: Code 14 Flow Chart - Ignition Signal (3 Of 4)
G93B80037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

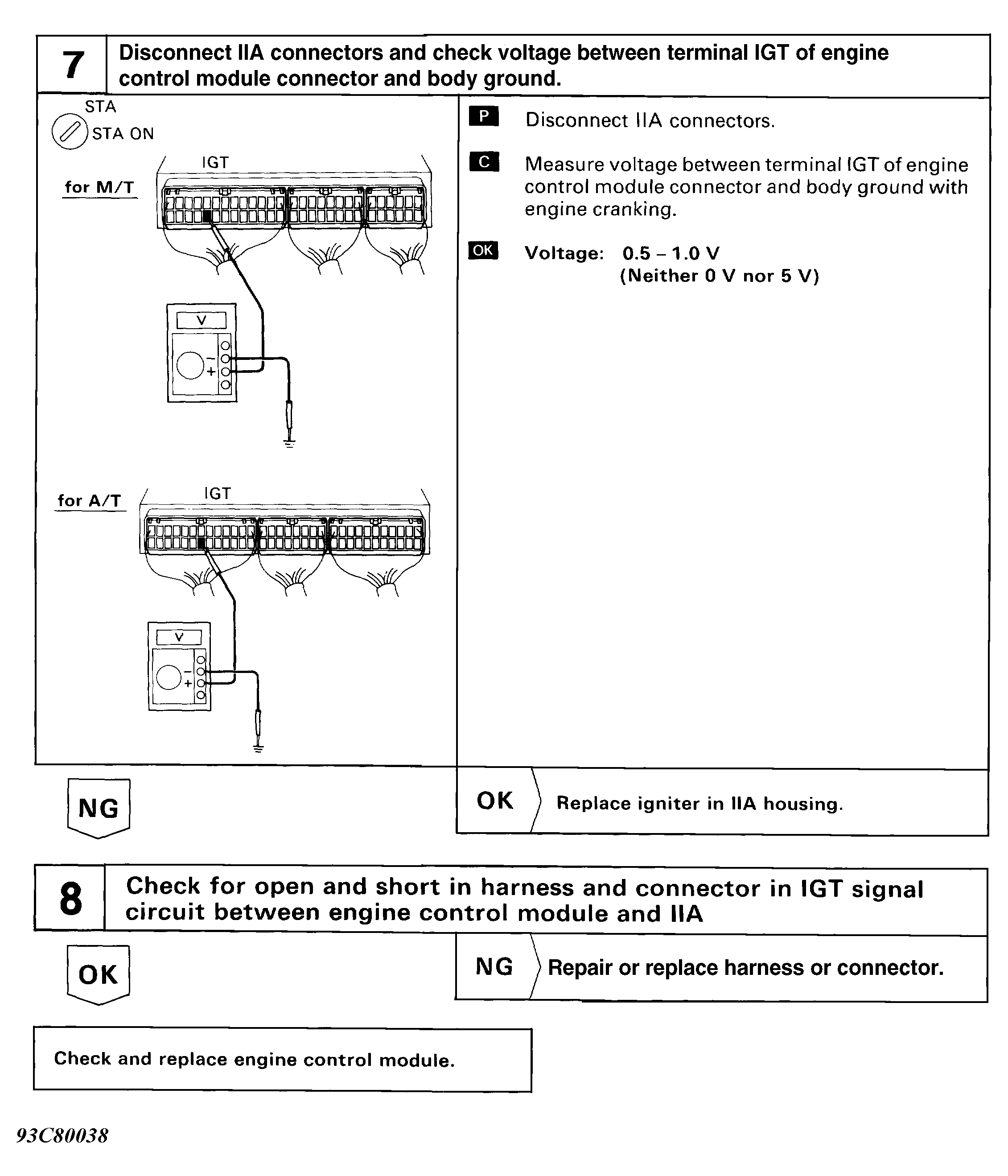

Fig 4: Code 14 Flow Chart - Ignition Signal (4 Of 4)
G93C80038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
