Airflow Meter

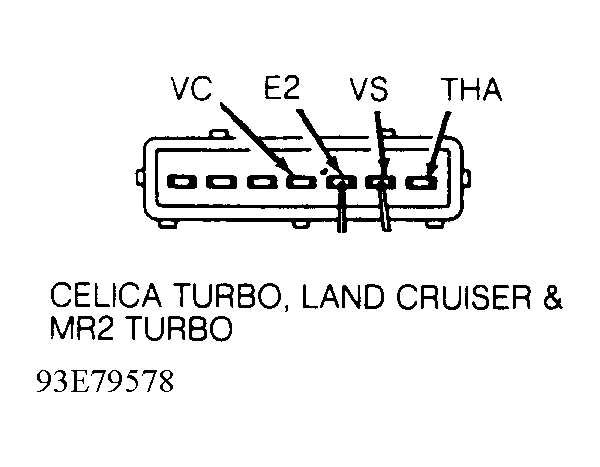

- Turn ignition off. Disconnect electrical connector from airflow meter. Note airflow meter terminal identification. See Fig 1.
- Using ohmmeter, measure resistance between specified terminals. See AIRFLOW METER RESISTANCE SPECIFICATIONS table. Replace airflow meter if resistance is not within specification.
- On Supra Turbo models, check airflow meter operation. Ensure electrical connector is installed on airflow meter.
- Connect voltmeter leads to proper terminals on airflow meter with electrical connector installed. Apply air into airflow meter and note voltage reading.
- While air is being applied, voltage reading should fluctuate. Replace airflow meter if voltage reading was not obtained. Remove voltmeter.
AIRFLOW METER RESISTANCE SPECIFICATIONS
| Application & Terminals | Ohms | |
|---|---|---|
| E2-VC | 200-400 | |
| E2-THA | ||
| -4°F (20°C) | 10,000-20,000 | |
| 32°F (0°C) | 4000-7000 | |
| 68°F (20°C) | 2000-3000 | |
| 104°F (40°C) | 900-1300 | |
| 140°F (60°C) | 400-700 | |
| E2-VS | ||
| Measuring Plate Fully Closed | 200-600 | |
| Measuring Plate Fully Opened | 20-1200 | |
