Code 21 - No. 1 Oxygen Sensor Signal

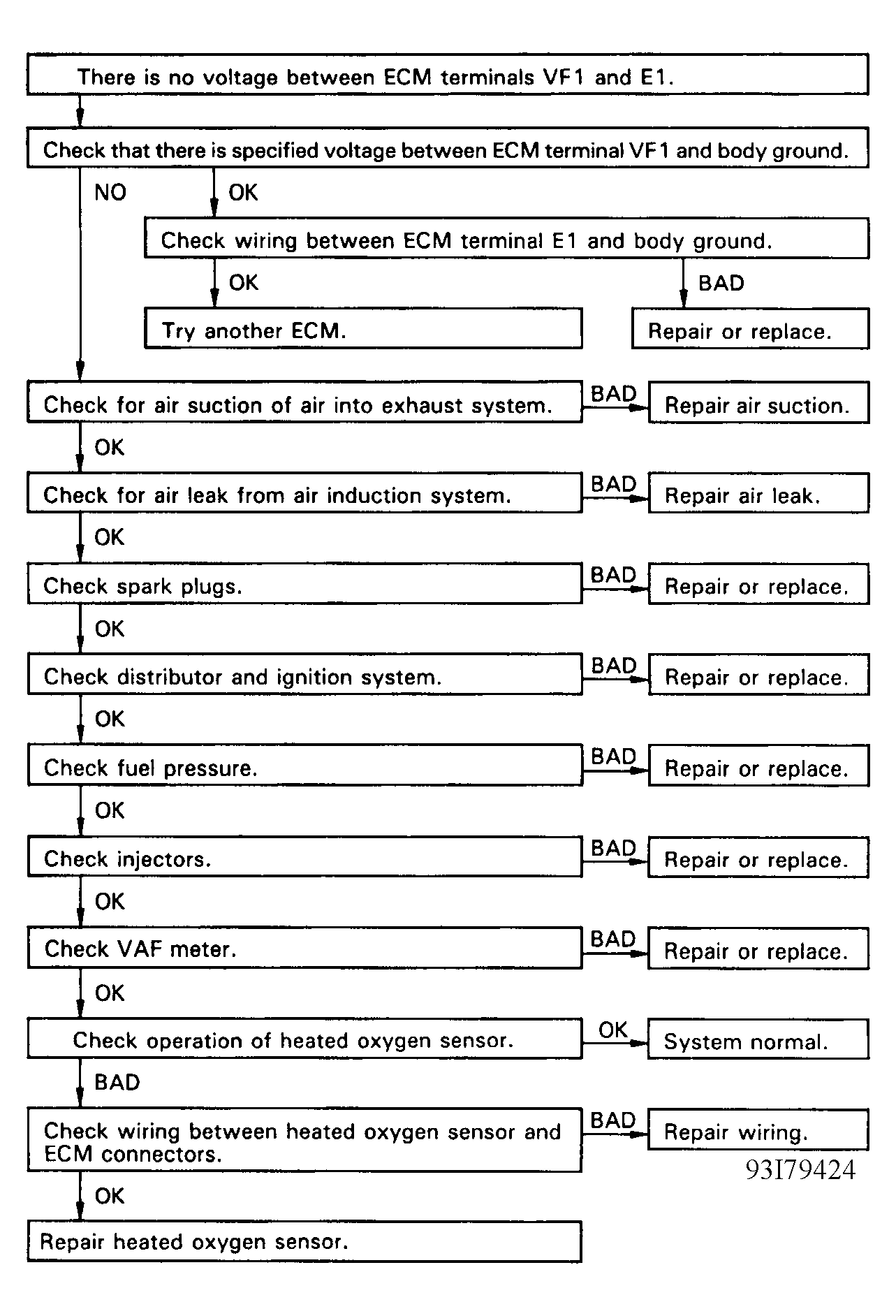

Fig 1: Code 21 Flow Chart - No. 1 Oxygen Sensor Signal
G93I79424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

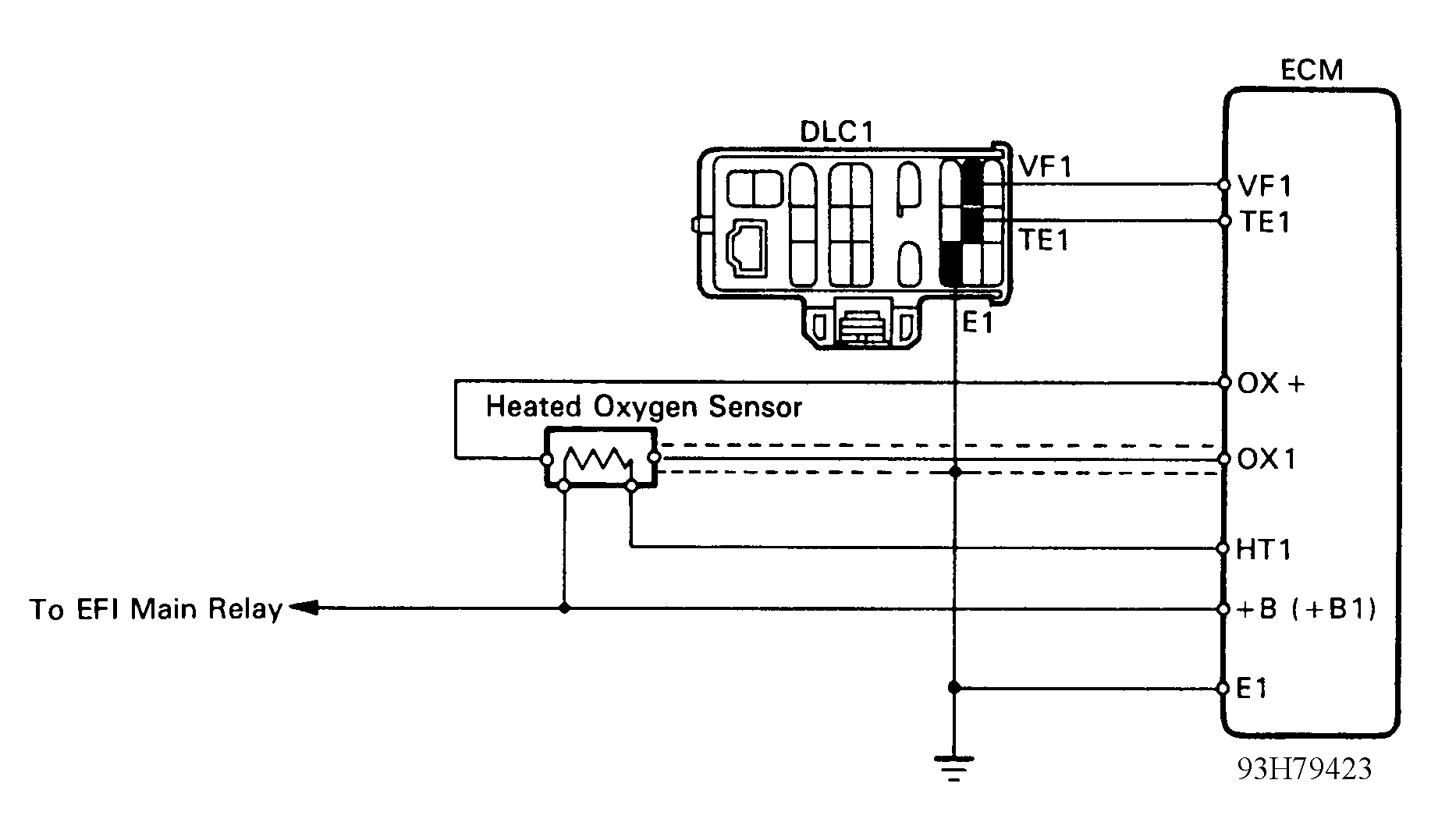

Fig 2: Code 21 Schematic - No. 1 Oxygen Sensor Signal
G93H79423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
