Code 24/Test No. 4 - Intake Air Temperature Sensor Signal

CODE 24/TEST NO. 4 - IAT SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
THA - E2	No Voltage	Ignition Switch ON Int. Air Temp. 20°C (68°F)	0.5 - 4.3V

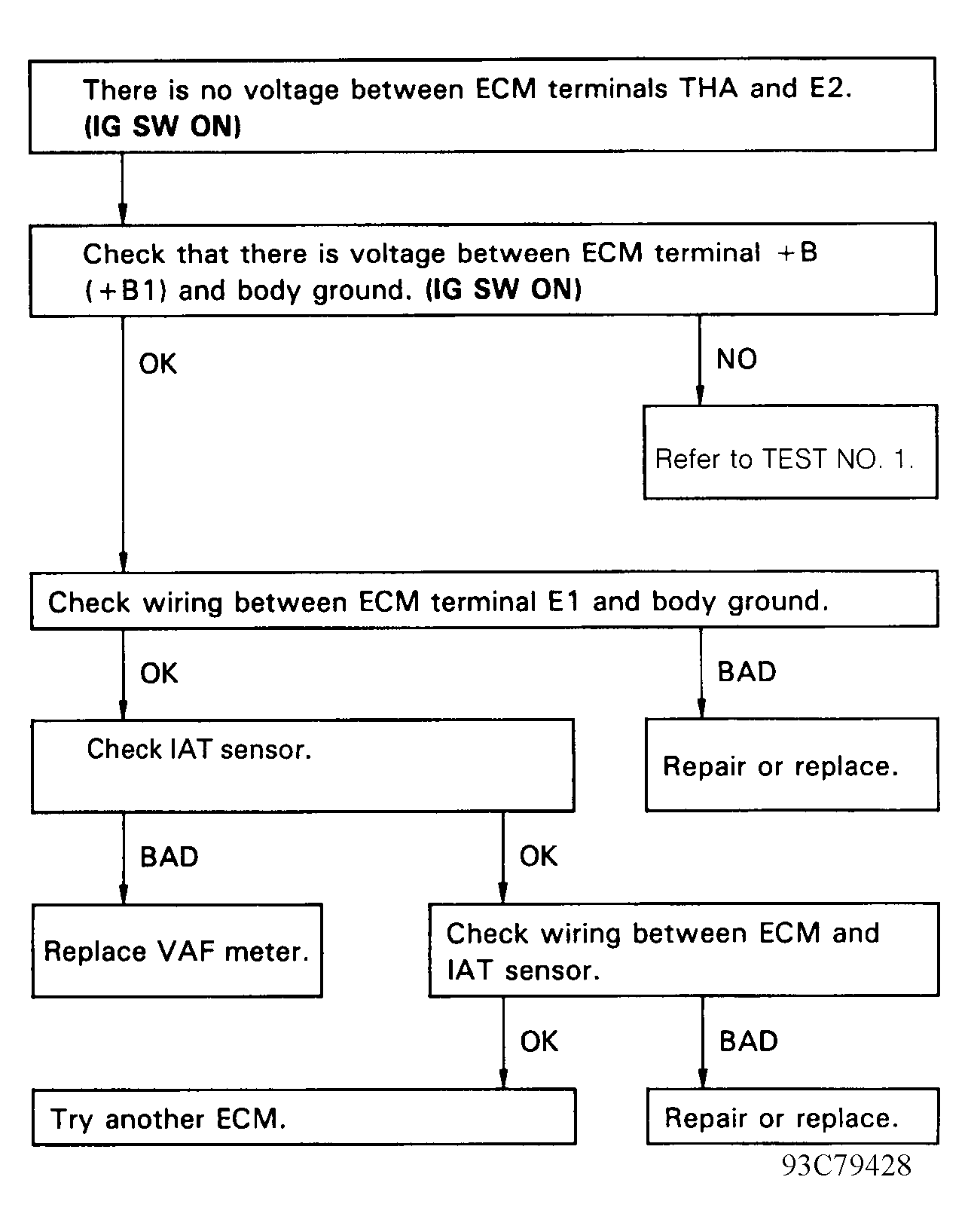

Fig 1: Code 24/Test No. 4 Flow Chart - Intake Air Temp. Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

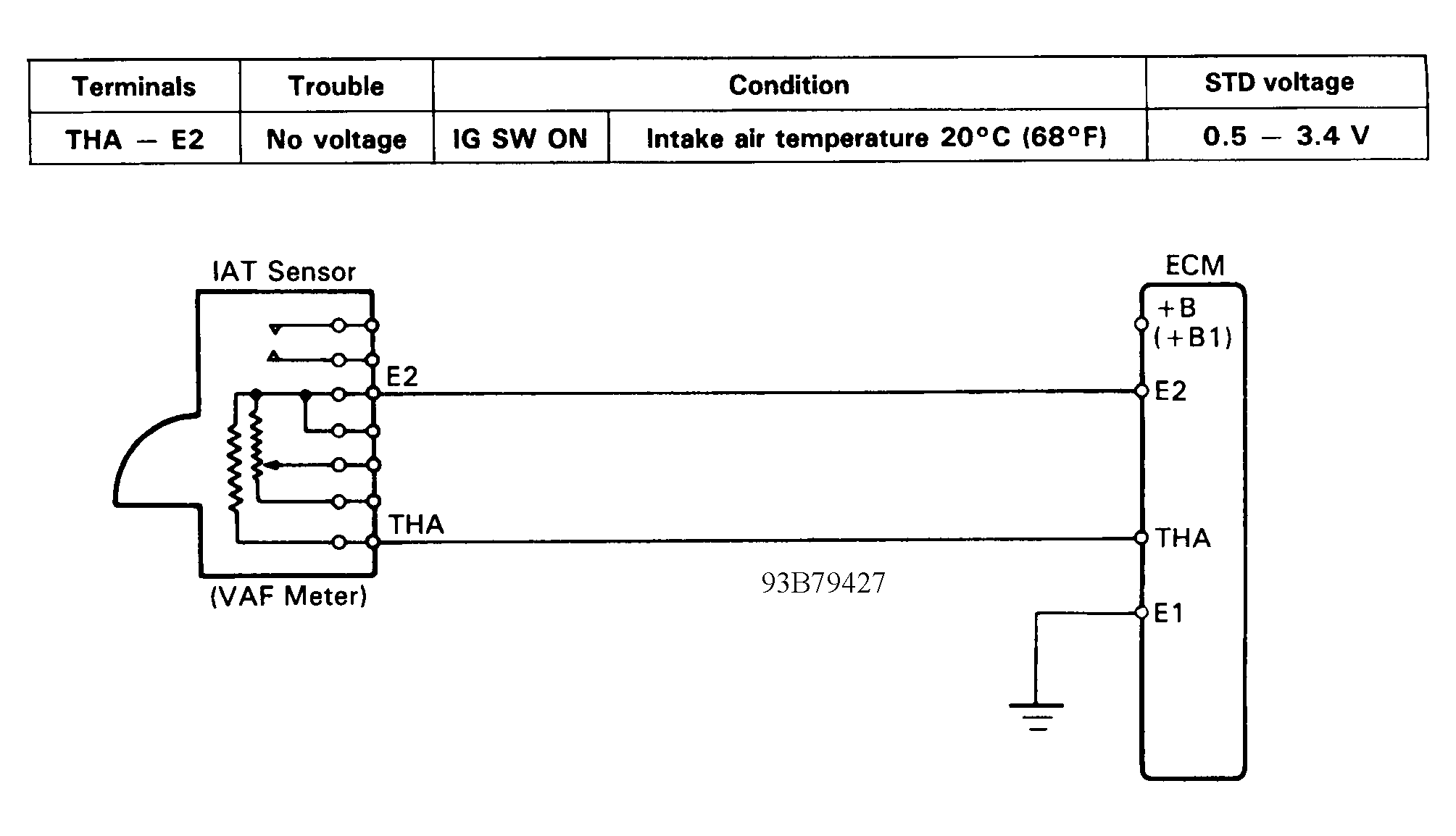

Fig 2: Code 24/Test No. 4 Schematic - Intake Air Temp. Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
