Code 71 - EGR System Malfunction

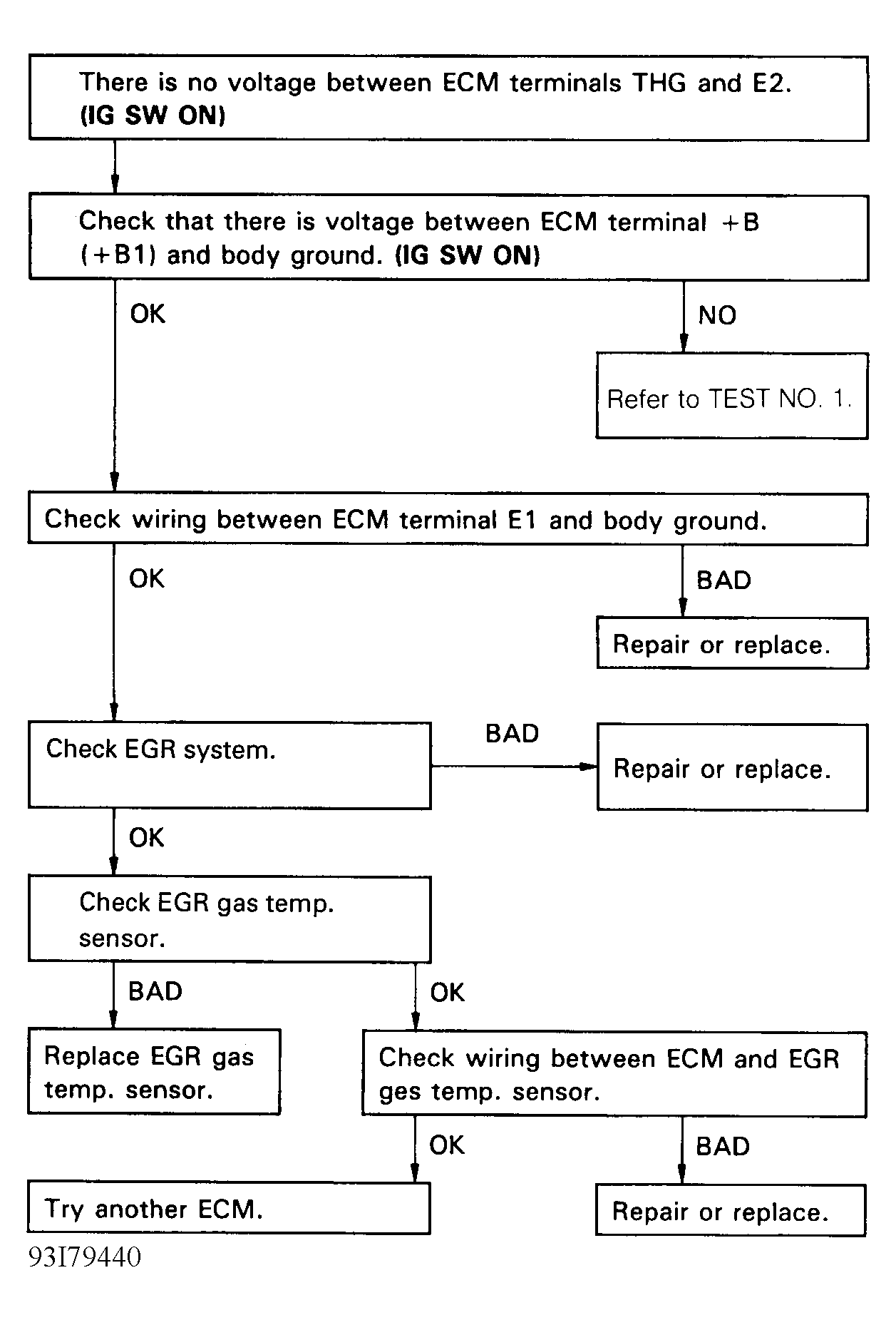

Fig 1: Code 71 Flow Chart - EGR System Malfunction
G93I79440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

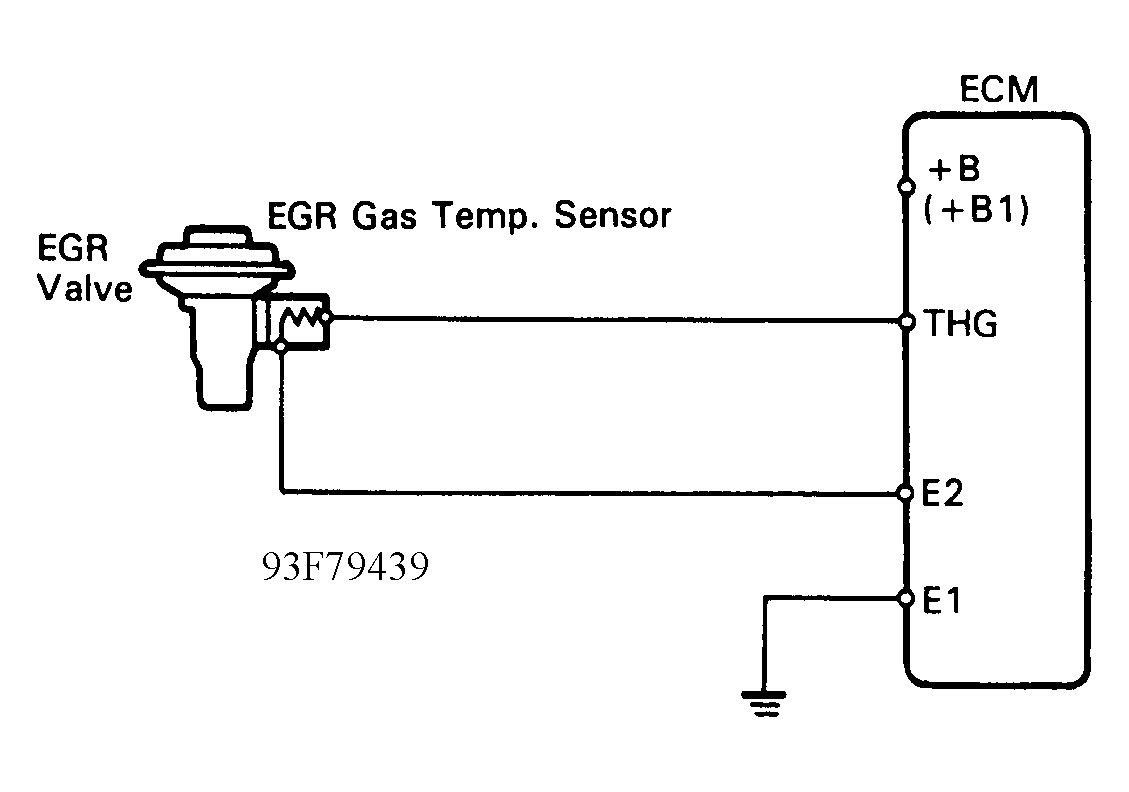

Fig 2: Code 71 Schematic - EGR System Malfunction
G93F79439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
