Pick-Up Coil Resistance

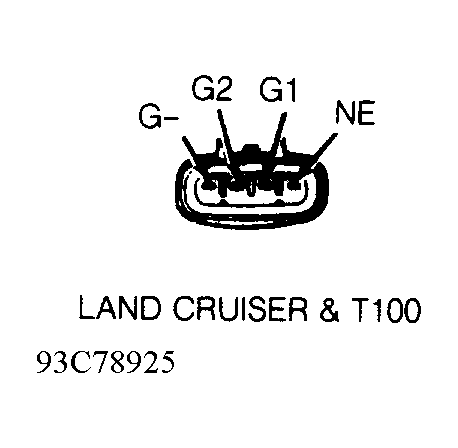

  1. Note pick-up coil terminal identification on the distributor. See Figure. Using ohmmeter, measure resistance between specified terminals. See PICK-UP COIL RESISTANCE SPECIFICATIONS  table.
  2. Replace distributor assembly if pick-up coil resistance is not within specification.
PICK-UP COIL RESISTANCE SPECIFICATIONS

Application Terminals (1) Ohms
T100 G1 & G- 125-200
T100 G2 & G- 125-200
T100 NE & G- 155-250
(1) With pick-up coil temperature at 14-104°F (-10-40°C).
