Air Temperature Sensor

NOTE: Air temperature sensor may be referred to as intake air temperature sensor.

Air temperature sensor is located in air intake, near air filter. Measure resistance between sensor terminals. For resistance specifications, see Fig 1.

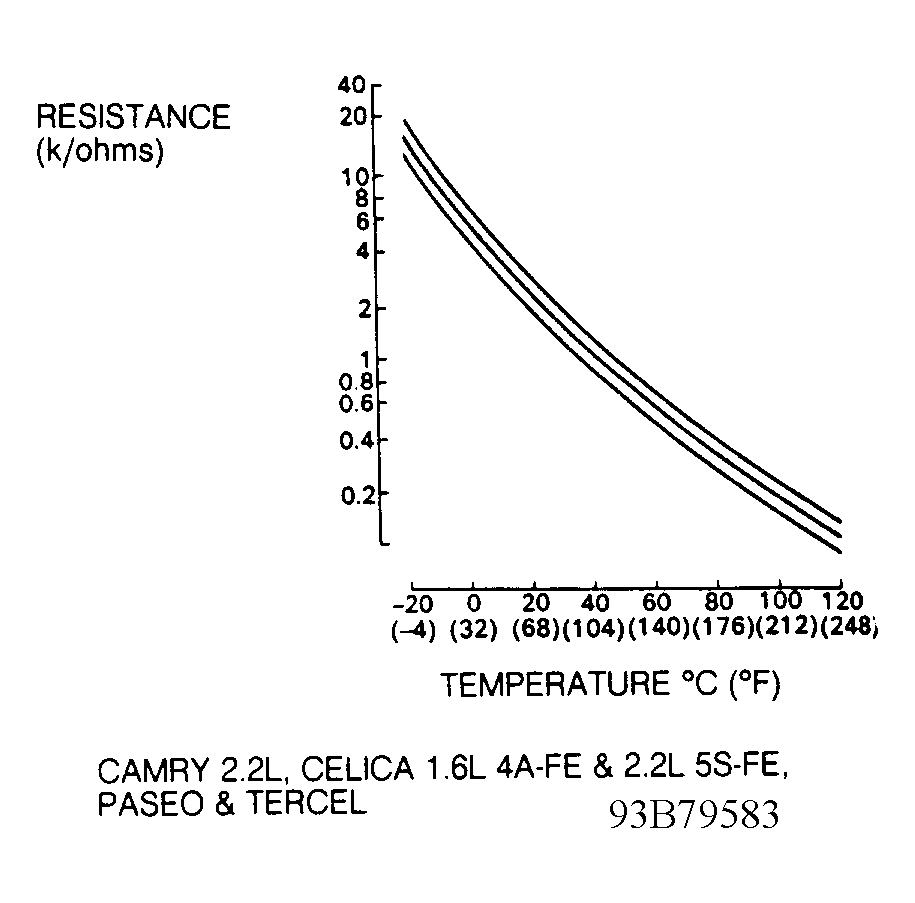

Fig 1: Checking Air Temperature Sensor
G93B79583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
