Coolant Temperature Sensor

NOTE: Coolant temperature sensor may also be referred to as Engine Coolant Temperature (ECT) sensor.

Measure coolant temperature sensor resistance between sensor terminals. For resistance specifications, see Fig 1.

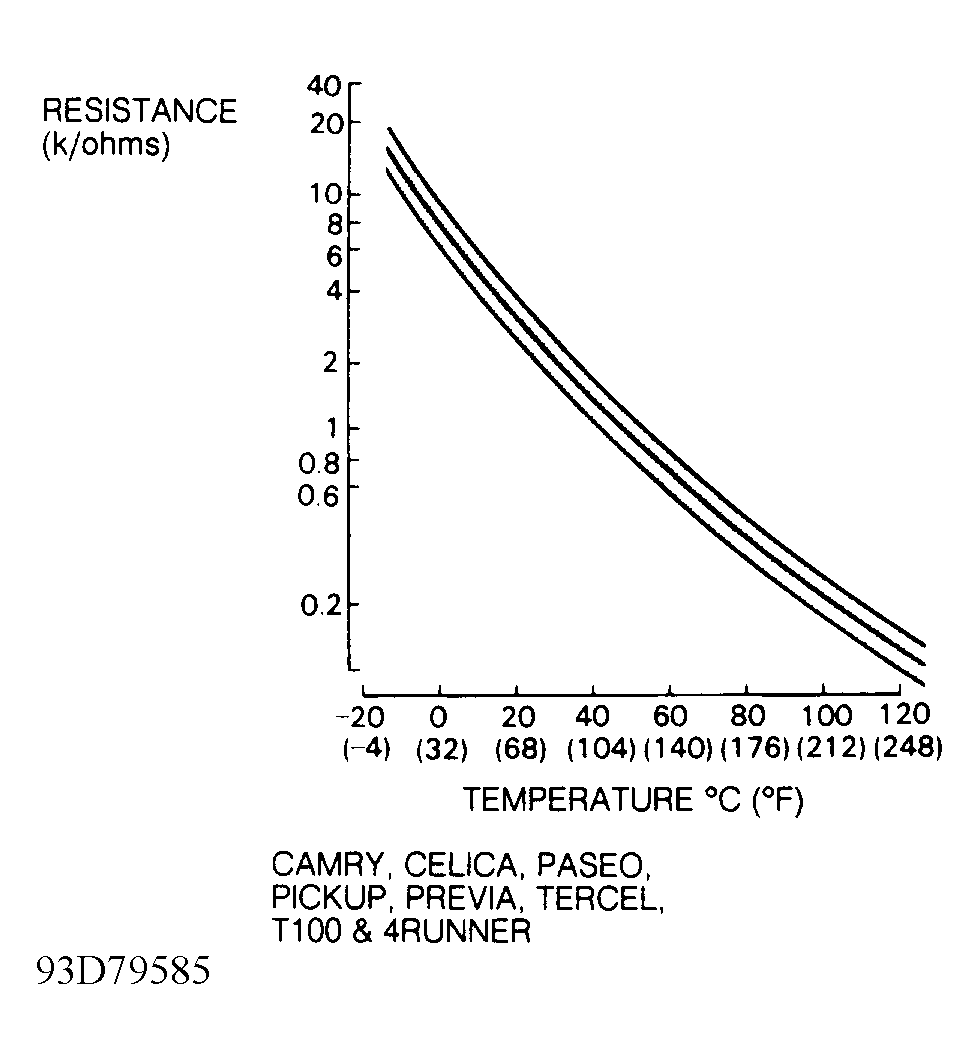

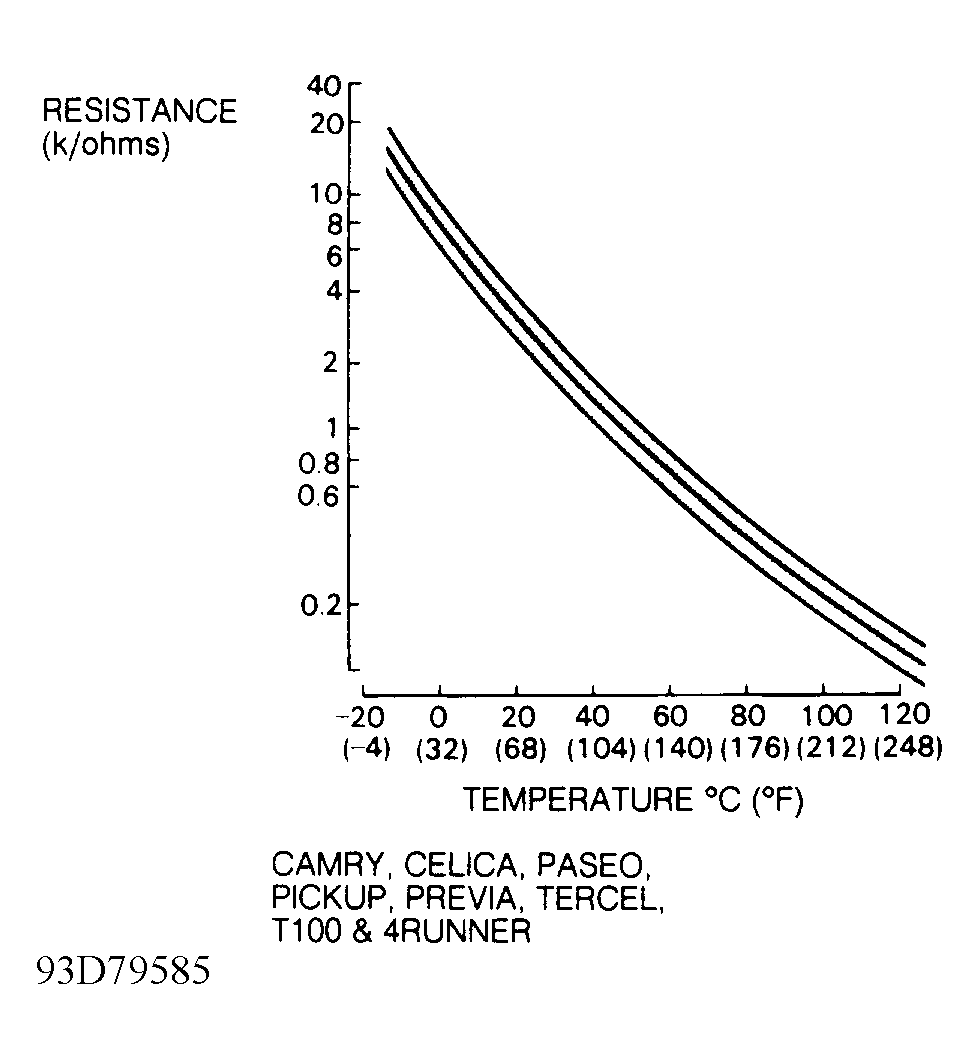

Fig 1: Checking Coolant Temperature Sensor
G93D79585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
