Fuel Evaporation: Notes

NOTE: Fuel evaporation systems contain different components and have different operating parameters depending on application. See Fig 1 and Fig 2.

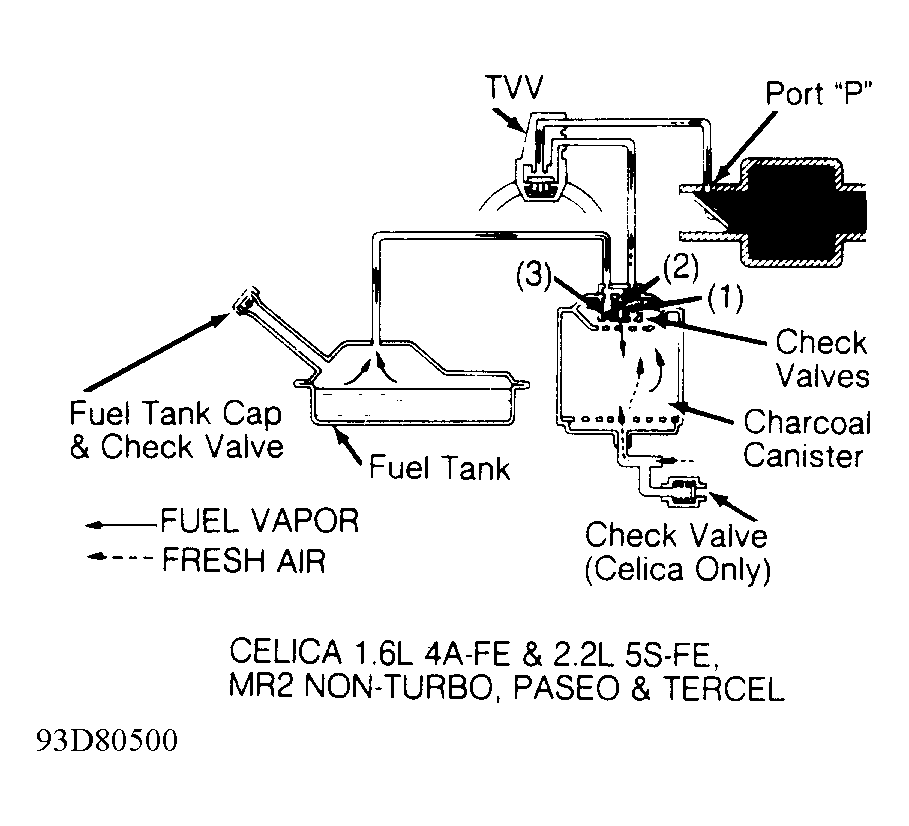

Fig 1: Fuel Evaporation System Component Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

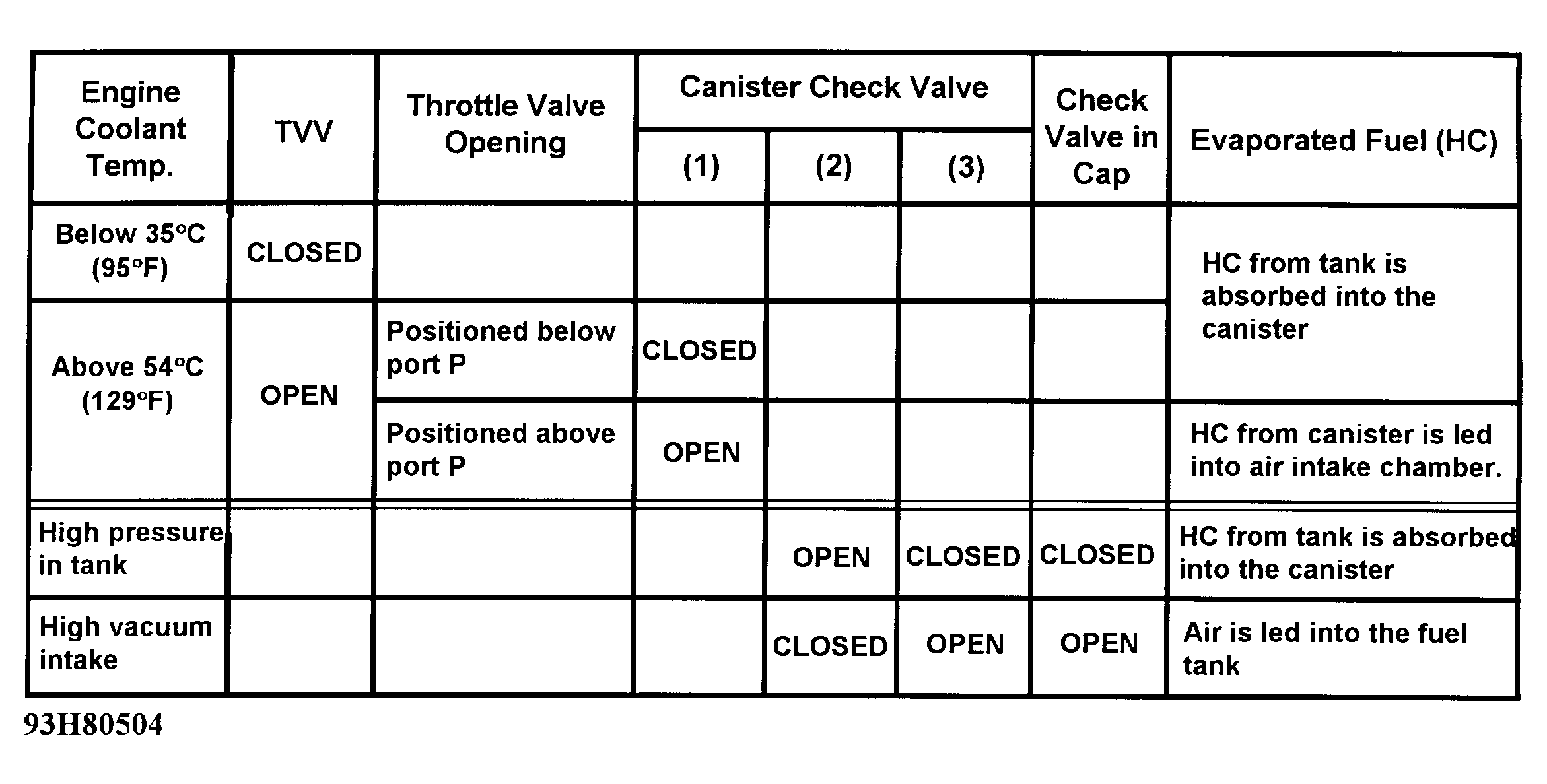

Fig 2: Fuel Evaporation System Operating Parameters

NOTE: The Bimetallic Vacuum Switching Valve (BVSV) may be referred to as a Thermal Vacuum Valve (TVV).
