Park/Neutral Switch

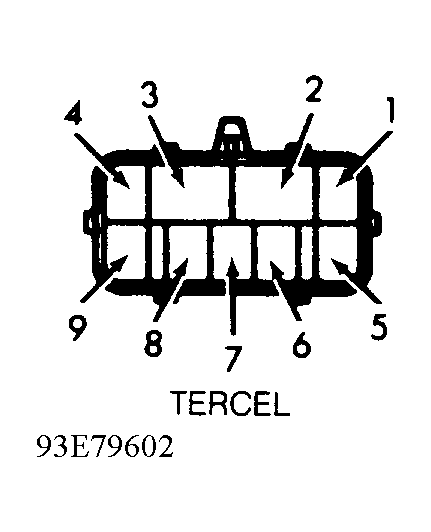

Disconnect electrical connector from park/neutral switch at transmission or transaxle. Note terminal identification. See Fig 1. Using ohmmeter, check for continuity at specified terminals with gearshift in proper positions. See PARK/NEUTRAL SWITCH SPECIFICATIONS table. Replace switch if defective.
PARK/NEUTRAL SWITCH SPECIFICATIONS
| Application & Shifter Position | Terminal Continuity |
|---|---|
| Park | 2 & 3, 1 & 6 |
| Reverse | 5 & 6 |
| Neutral | 2 & 3, 6 & 7 |
| Drive | 6 & 8 |
| 2 | 6 & 9 |
| Low | 6 & 4 |
