Code 41/Test No. 8 - Throttle Position Sensor Signal

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle valve OPEN	4.5-5.5V
VCC - E2	"	IG SW ON-	4.5-5.5V
VTA - E2	"	IG SW ON-Throttle valve SHUT	0.8-1.2V
"	"	IG SW ON-Throttle valve OPEN	3.2-4.2V

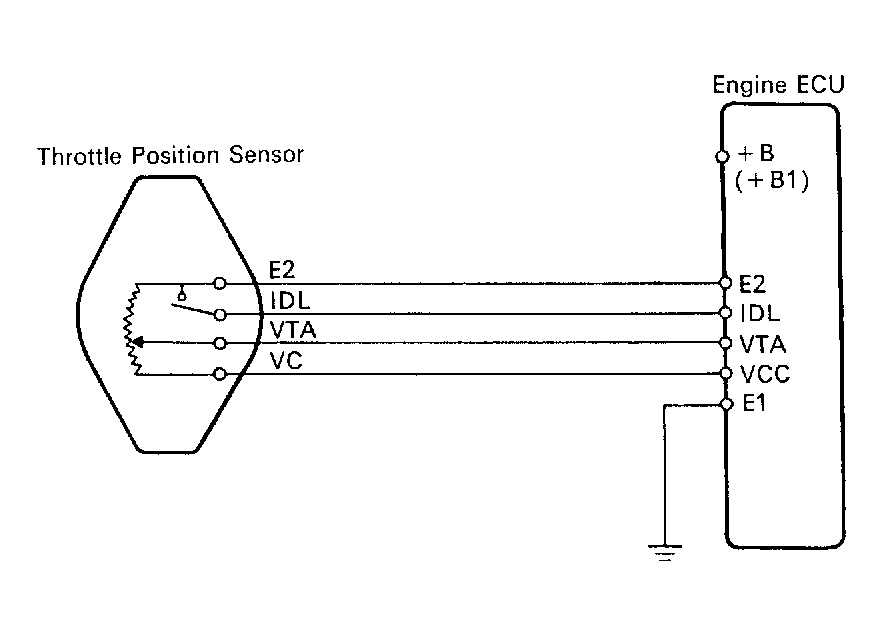

Fig 1: Code 41/Test No. 8 Schematic Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 41/Test No. 8 Flow Chart, Terminals IDL - E2 Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

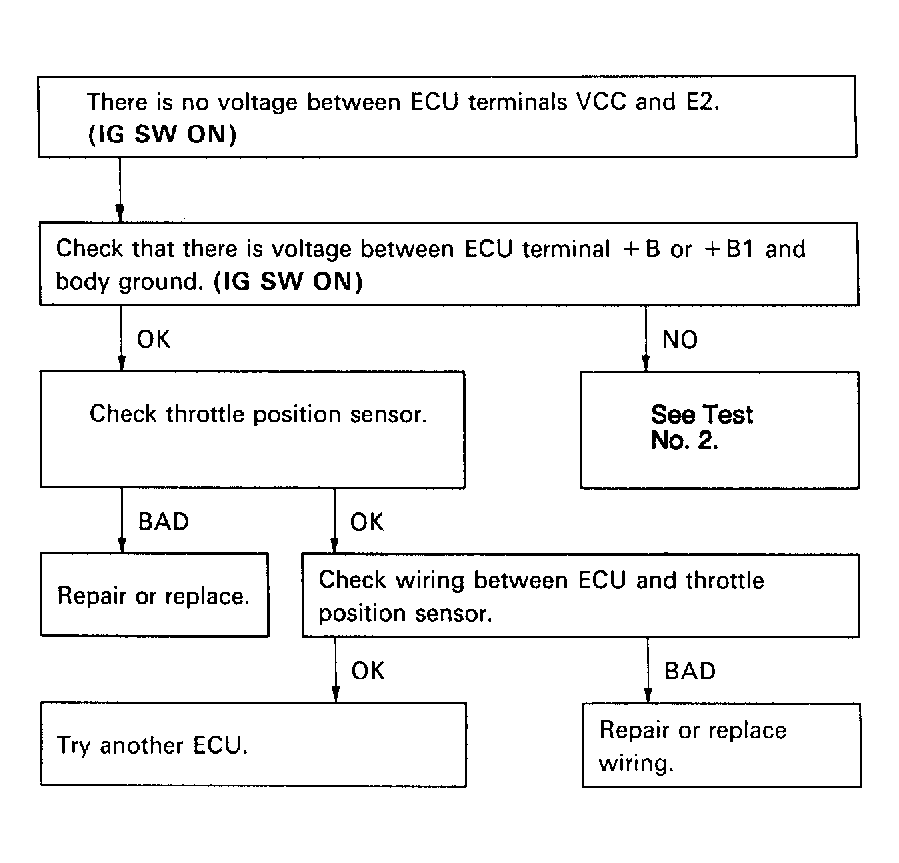

Fig 3: Code 41/Test No. 8 Flow Chart, Terminals VCC - E2 Throttle Position Sensor Signal

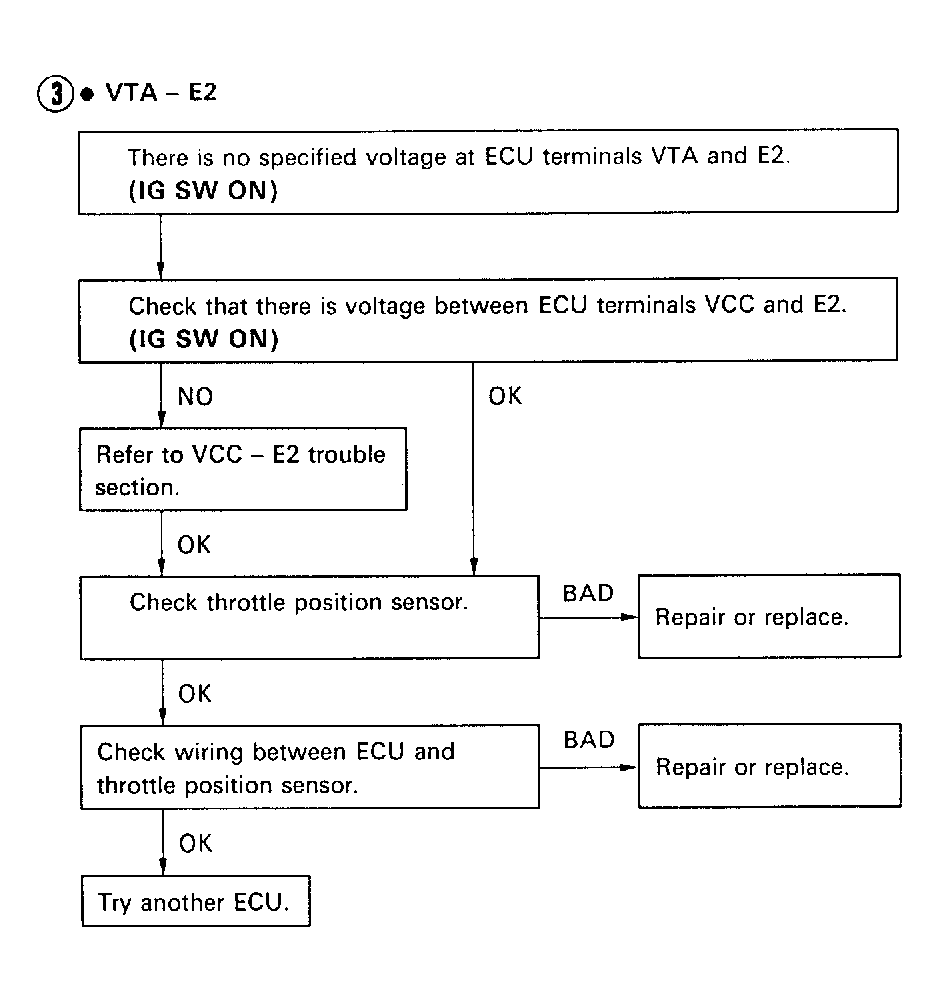

Fig 4: Code 41/Test No. 8 Flow Chart, Terminals VTA - E2 Throttle Position Sensor Signal
