Ignition Coil Resistance

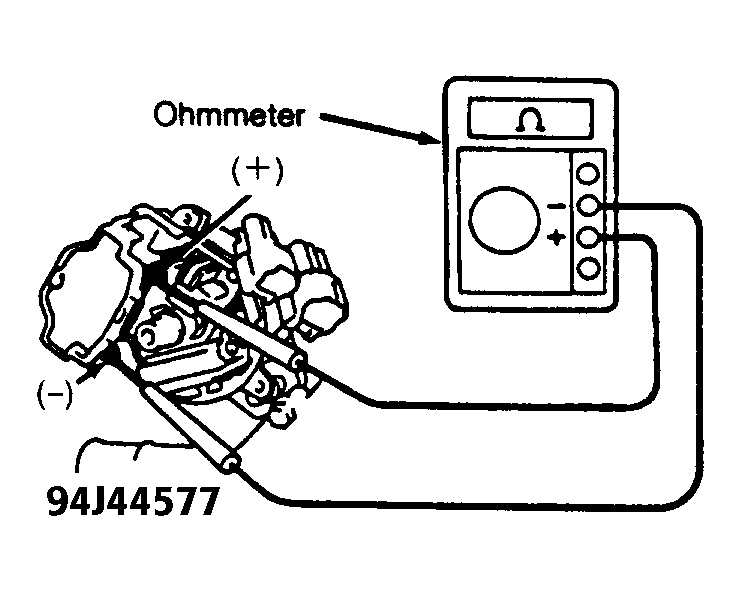

- Disconnect wiring from ignition coil so ignition coil is isolated from system. Using ohmmeter, check primary resistance between ignition coil positive (+) and negative (-) terminals. See Fig 1.

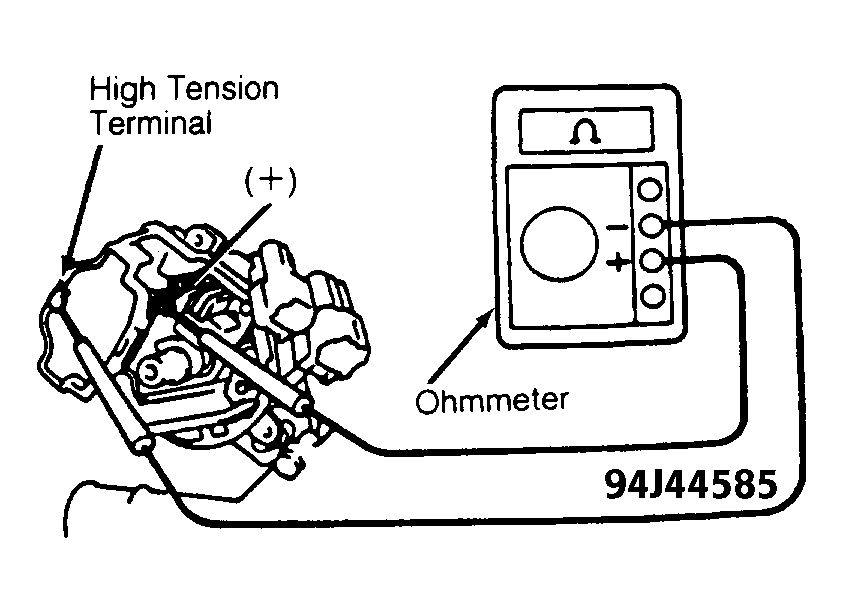

- Check secondary resistance between ignition coil positive (+) terminal and high tension terminal (coil wire tower). See Fig 2. Replace ignition coil if resistance is not within specification. See appropriate IGNITION COIL RESISTANCE table.
IGNITION COIL RESISTANCE
| Application | Primary | Secondary |
|---|---|---|
| Corolla | 1.11-1.75 | 9000-15,700 |
