DTC 31 - Map Sensor Signal

MAP sensor detects the intake manifold absolute pressure as a voltage. ECM determines basic injection duration and basic ignition advance angle based on this voltage. DTC 31 sets when there is an open or short in MAP sensor circuit for .5 second or more. Check for an open or shorted MAP sensor circuit, a faulty MAP sensor or ECM.

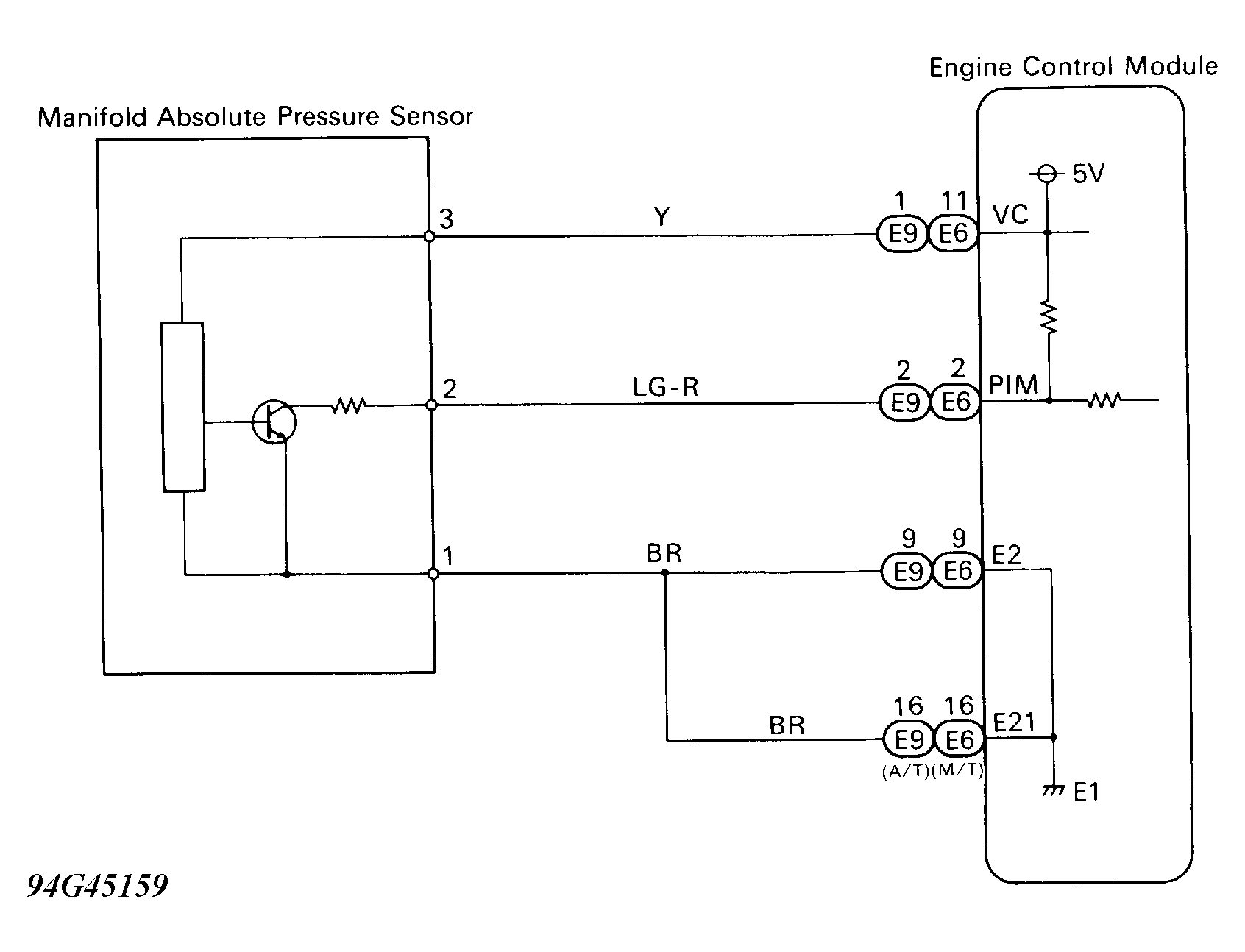

Fig 1: DTC 31 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

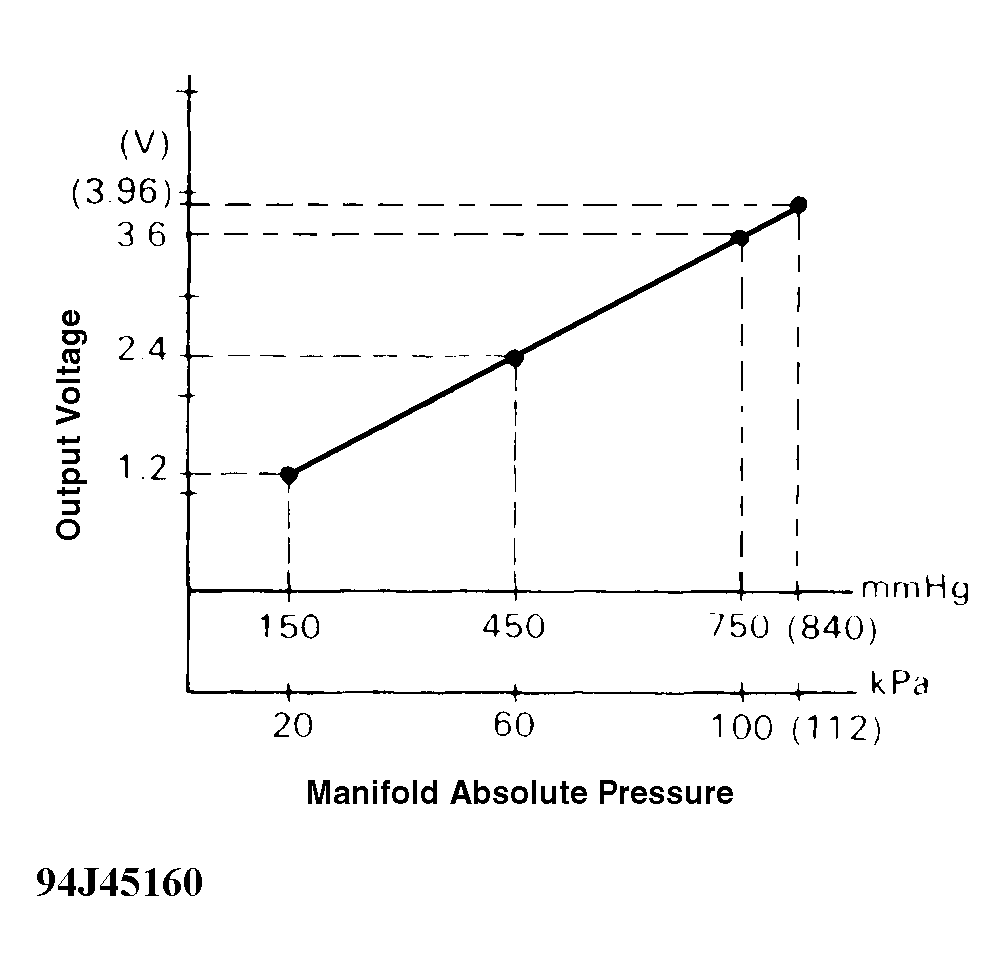

Fig 2: DTC 31 - Output Voltage/Absolute Pressure Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

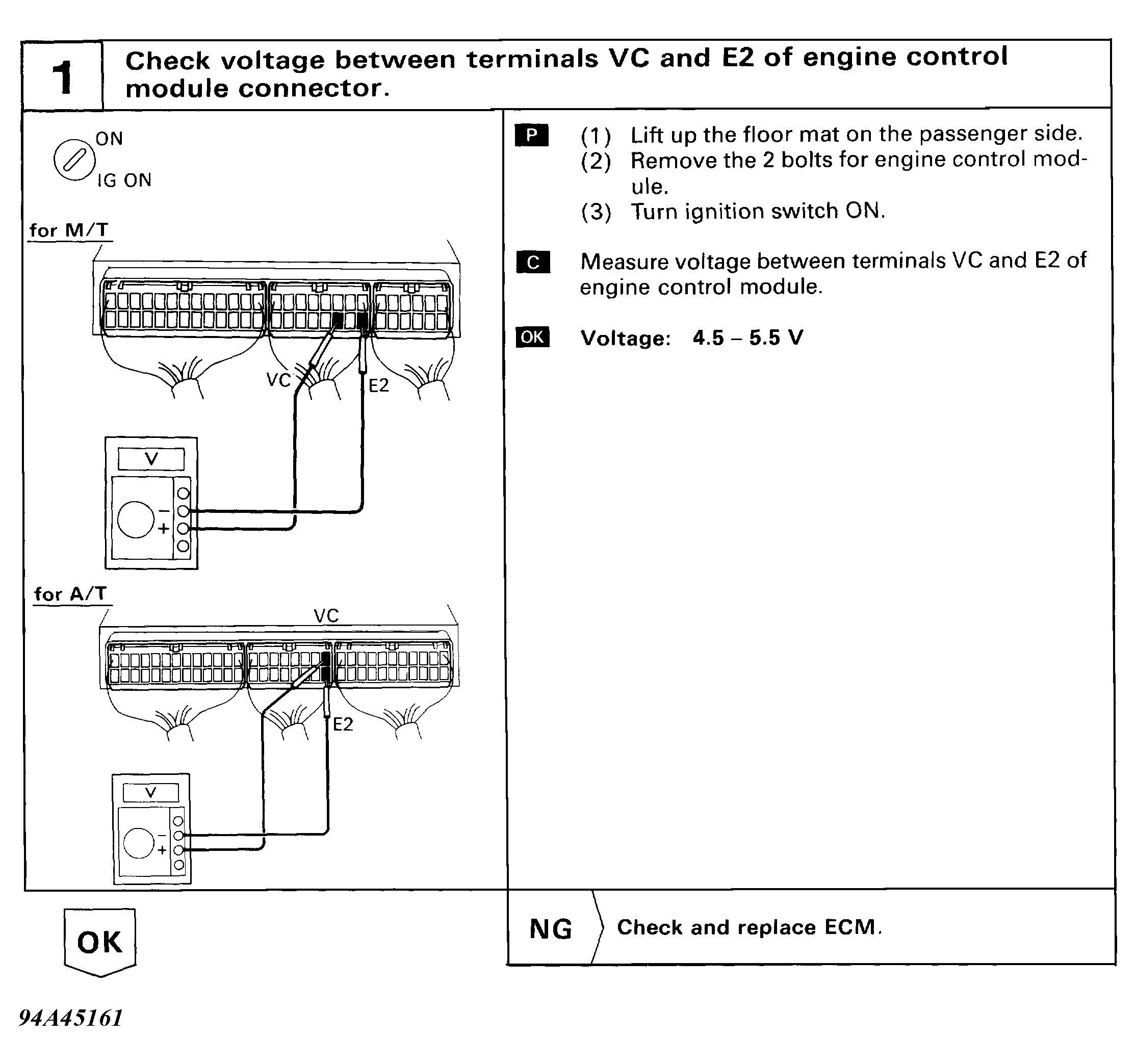

Fig 3: DTC 31 - Diagnostic Flowchart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: DTC 31 - Diagnostic Flowchart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
